Contains the information where a diagnosis is located on the device according to "Guideline for PROFINET - Diagnosis for PROFINET" More...

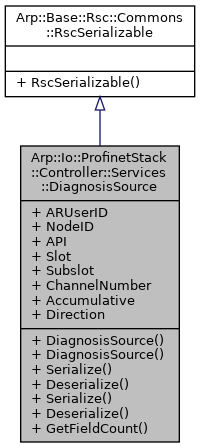

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::DiagnosisSource:

Public Member Functions
	DiagnosisSource (void)
	Constructs an DiagnosisSource instance.

	DiagnosisSource (uint16 aRUserID, uint32 nodeID, uint32 aPI, uint16 slot, uint16 subslot, uint16 channelNumber, boolean accumulative, DiagnosisDirection direction)
	Constructs an DiagnosisSource instance.

void	Serialize (RscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

void	Serialize (JRscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter. More...

void	Deserialize (JRscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader. More...

Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable
	RscSerializable (void)=default
	The default constructor.

Static Public Member Functions
static size_t	GetFieldCount (void)
	Returns the count of fields More...

Public Attributes
uint16	ARUserID = 0
	User ID of the application relation

uint32	NodeID = 0
	NodeID of the diagnosis source

uint32	API = 0
	Application Process Identifier of the diagnosis source

uint16	Slot = 0
	Slot numer of the diagnosis source

uint16	Subslot = 0
	Subslot number of the diagnosis source

uint16	ChannelNumber = 0
	Channel Number of the diagnosis source. If set to 0x8000 the channel number adresses the whole submodule.

boolean	Accumulative = false
	If set to true the diagnosis source addresses a channel group.

DiagnosisDirection	Direction = static_cast<DiagnosisDirection>(0)
	Direction of the channel of the diagnosis source.

Detailed Description

Contains the information where a diagnosis is located on the device according to "Guideline for PROFINET - Diagnosis for PROFINET"

Member Function Documentation

void Arp::Io::ProfinetStack::Controller::Services::DiagnosisSource::Deserialize ( JRscReader & reader )

Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader.

Parameters

reader Reference to RscReader.

void Arp::Io::ProfinetStack::Controller::Services::DiagnosisSource::Deserialize ( RscReader & reader )

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

size_t Arp::Io::ProfinetStack::Controller::Services::DiagnosisSource::GetFieldCount ( void )

static

Returns the count of fields

The field count is used for serialization via Rsc

void Arp::Io::ProfinetStack::Controller::Services::DiagnosisSource::Serialize ( JRscWriter & writer ) const

Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter.

Parameters

writer Reference to RscWriter

void Arp::Io::ProfinetStack::Controller::Services::DiagnosisSource::Serialize ( RscWriter & writer ) const

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter
