This structure contains all information about a received alarm. For more information read the PROFINET specification. More...

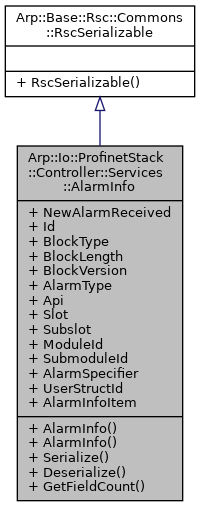

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::AlarmInfo:

Public Member Functions
	AlarmInfo (void)
	Constructs an AlarmInfo instance.

	AlarmInfo (boolean newAlarmReceived, uint32 id, uint16 blockType, uint16 blockLength, uint16 blockVersion, uint16 alarmType, uint32 api, uint16 slot, uint16 subslot, uint32 moduleId, uint32 submoduleId, uint16 alarmSpecifier, uint16 userStructId, const std::vector< byte > &alarmInfoItem)
	Constructs an AlarmInfo instance.

void	Serialize (RscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable
	RscSerializable (void)=default
	The default constructor.

Static Public Member Functions
static size_t	GetFieldCount (void)
	Returns the count of fields More...

Public Attributes
boolean	NewAlarmReceived = false
	Flag is set, if new alarm has been received

uint32	Id = 0
	Node id

uint16	BlockType = 0
	Type of alarm information

uint16	BlockLength = 0
	Length of alarm information in bytes

uint16	BlockVersion = 0
	Version of alarm information

uint16	AlarmType = 0
	Type of alarm

uint32	Api = 0
	Application Process Identifier

uint16	Slot = 0
	Slot number

uint16	Subslot = 0
	Subslot number

uint32	ModuleId = 0
	Module identification

uint32	SubmoduleId = 0
	Submodule identification

uint16	AlarmSpecifier = 0
	Alarm Specifier

uint16	UserStructId = 0
	User structure identifier

std::vector< byte >	AlarmInfoItem
	Alarm info item

Detailed Description

This structure contains all information about a received alarm. For more information read the PROFINET specification.

Member Function Documentation

void Arp::Io::ProfinetStack::Controller::Services::AlarmInfo::Deserialize ( RscReader & reader )

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

size_t Arp::Io::ProfinetStack::Controller::Services::AlarmInfo::GetFieldCount ( void )

static

Returns the count of fields

The field count is used for serialization via Rsc

void Arp::Io::ProfinetStack::Controller::Services::AlarmInfo::Serialize ( RscWriter & writer ) const

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter
