This class is used to read a entity of the type 'IO:StructDefinition' from a TIC file. More...

#include <TicStructDefinition.hpp>

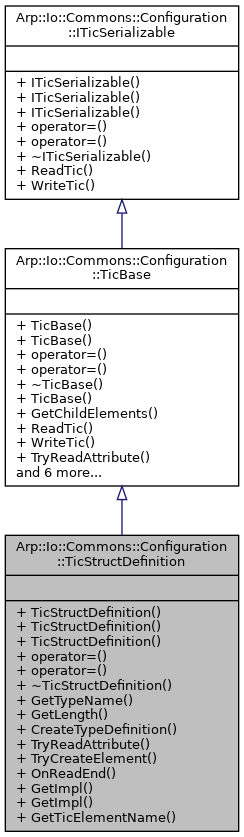

Inheritance diagram for Arp::Io::Commons::Configuration::TicStructDefinition:

Public Types
using	Ptr = std::shared_ptr< TicStructDefinition >

using	BitSize = Arp::Plc::Meta::Commons::BitSize

using	TypeDefinition = Arp::Plc::Meta::Commons::Io::TypeDefinition

Public Types inherited from Arp::Io::Commons::Configuration::TicBase
using	Ptr = std::shared_ptr< TicBase >

using	ChildPtr = ITicSerializable::Ptr

using	ChildElements = std::vector< ChildPtr >

Public Types inherited from Arp::Io::Commons::Configuration::ITicSerializable
using	Ptr = std::shared_ptr< ITicSerializable >

Public Member Functions
	TicStructDefinition (void)
	The default constructor.

	TicStructDefinition (const TicStructDefinition &arg)=delete

	TicStructDefinition (TicStructDefinition &&arg) noexcept
	The default move constructor. More...

TicStructDefinition &	operator= (const TicStructDefinition &arg)=delete

TicStructDefinition &	operator= (TicStructDefinition &&arg) noexcept
	The default move-assignment operator. More...

	~TicStructDefinition (void) override
	The default destructor.

const String &	GetTypeName () const
	Returns the name of the struct. More...

BitSize	GetLength () const
	Returns the total length of the structure More...

TypeDefinition	CreateTypeDefinition () const
	Creates an instance of type TypeDefinition More...

bool	TryReadAttribute (TicReader &reader, const String &attributeName) final
	This operation is called every time an attribute is read. More...

bool	TryCreateElement (const String &elementName, ChildPtr &result) final
	Factory method to create child elements. More...

void	OnReadEnd (void) override
	Validates the content of the current element. More...

Impl &	GetImpl (void)
	For internal use only. More...

const Impl &	GetImpl (void) const

Public Member Functions inherited from Arp::Io::Commons::Configuration::TicBase
	TicBase (const TicBase &arg)=delete

	TicBase (TicBase &&arg) noexcept
	Default move constructor.

TicBase &	operator= (const TicBase &arg)=delete

TicBase &	operator= (TicBase &&arg) noexcept
	Default move-assignment operator.

	~TicBase (void) override
	Default destructor.

	TicBase (void)
	Default constructor.

const ChildElements &	GetChildElements (void) const
	Returns all childs of this element. More...

void	ReadTic (TicReader &reader) final
	This operation shall be implemented by all classes which should read its context from Tic files. More...

void	WriteTic (TicWriter &writer) final
	This method is currently not implemented and should not be used. More...

virtual bool	TryReadAttribute (TicReader &reader, const String &attributeName)
	This operation is called every time an attribute is read. More...

virtual bool	TryCreateElement (const String &elementName, ChildPtr &result)
	Factory method to create child elements. More...

virtual bool	TryReadCustomAttribute (TicReader &reader, const String &attributeName)
	This operation is called every time an attribute is read. More...

virtual bool	TryCreateCustomElement (const String &elementName, ChildPtr &result)
	Factory method to create child elements. More...

virtual void	OnReadEnd (void)
	Validates the content of the current element. More...

Impl &	GetImpl (void)
	For internal use only.

const Impl &	GetImpl (void) const

Public Member Functions inherited from Arp::Io::Commons::Configuration::ITicSerializable
	ITicSerializable (void)=default
	Constructs an ITicSerializable instance.

	ITicSerializable (const ITicSerializable &arg)=default
	Copy constructor.

	ITicSerializable (ITicSerializable &&arg) noexcept=default
	Move constructor.

ITicSerializable &	operator= (const ITicSerializable &arg)=default
	Copy-assignment operator.

ITicSerializable &	operator= (ITicSerializable &&arg) noexcept=default
	Move-assignment operator.

virtual	~ITicSerializable (void)=default
	Destructs this instance and frees all resources.

virtual void	ReadTic (TicReader &reader)=0
	This operation shall be implemented to read the content from Tic documents. More...

virtual void	WriteTic (TicWriter &writer)=0
	This operation shall be implemented to write the content to Tic documents. More...

Static Public Member Functions
static const char *	GetTicElementName (void)

Detailed Description

This class is used to read a entity of the type 'IO:StructDefinition' from a TIC file.

The entity IO:StructDefinition contains the definition of a custom struct. The struct definition defines an explicit layout. All field definitions data sizes must fit into the total length.

Constructor & Destructor Documentation

◆ TicStructDefinition()

Arp::Io::Commons::Configuration::TicStructDefinition::TicStructDefinition ( TicStructDefinition && arg )

defaultnoexcept

The default move constructor.

Parameters

arg	The argument to move.

Member Function Documentation

◆ CreateTypeDefinition()

TicStructDefinition::TypeDefinition Arp::Io::Commons::Configuration::TicStructDefinition::CreateTypeDefinition ( ) const

Creates an instance of type TypeDefinition

Returns: Created TypeDefinition

◆ GetImpl()

const TicStructDefinition::Impl & Arp::Io::Commons::Configuration::TicStructDefinition::GetImpl ( void )

For internal use only.

Returns: The impl instance.

◆ GetLength()

TicStructDefinition::BitSize Arp::Io::Commons::Configuration::TicStructDefinition::GetLength ( void ) const

Returns the total length of the structure

Bit granular data structure lengths are currently not supported.

Returns: Length

◆ GetTypeName()

const String & Arp::Io::Commons::Configuration::TicStructDefinition::GetTypeName ( ) const

Returns the name of the struct.

Returns: Name

◆ OnReadEnd()

void Arp::Io::Commons::Configuration::TicStructDefinition::OnReadEnd ( void )

overridevirtual

Validates the content of the current element.

Reimplemented from Arp::Io::Commons::Configuration::TicBase.

◆ operator=()

TicStructDefinition & Arp::Io::Commons::Configuration::TicStructDefinition::operator= ( TicStructDefinition && arg )

defaultnoexcept

The default move-assignment operator.

Parameters

arg	The argument to move.

Returns: This instance.

◆ TryCreateElement()

bool Arp::Io::Commons::Configuration::TicStructDefinition::TryCreateElement	(	const String &	elementName,
		ChildPtr &	result
	)

finalvirtual

Factory method to create child elements.

Reimplemented from Arp::Io::Commons::Configuration::TicBase.

◆ TryReadAttribute()

bool Arp::Io::Commons::Configuration::TicStructDefinition::TryReadAttribute	(	TicReader &	reader,
		const String &	attributeName
	)

finalvirtual

This operation is called every time an attribute is read.

Reimplemented from Arp::Io::Commons::Configuration::TicBase.

The documentation for this class was generated from the following files:

Arp/Io/Commons/Configuration/TicStructDefinition.hpp
Arp/Io/Commons/Configuration/TicStructDefinition.cpp
