This class is used to read a entity of the type 'IO:FieldDefinition' from an TIC file. More...

#include <TicFieldDefinition.hpp>

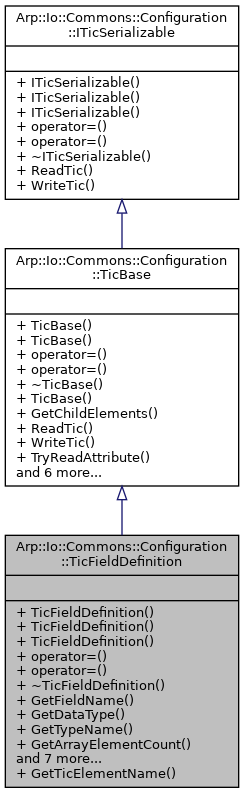

Inheritance diagram for Arp::Io::Commons::Configuration::TicFieldDefinition:

Public Types
using	Ptr = std::shared_ptr< TicFieldDefinition >

using	DataType = Arp::Plc::Meta::Commons::DataType

using	BitSize = Arp::Plc::Meta::Commons::BitSize

using	ChildTypeDefinition = Arp::Plc::Meta::Commons::Io::ChildTypeDefinition

Public Types inherited from Arp::Io::Commons::Configuration::TicBase
using	Ptr = std::shared_ptr< TicBase >

using	ChildPtr = ITicSerializable::Ptr

using	ChildElements = std::vector< ChildPtr >

Public Types inherited from Arp::Io::Commons::Configuration::ITicSerializable
using	Ptr = std::shared_ptr< ITicSerializable >

Public Member Functions
	TicFieldDefinition (void)
	The default constructor.

	TicFieldDefinition (const TicFieldDefinition &arg)=delete

	TicFieldDefinition (TicFieldDefinition &&arg) noexcept
	The default move constructor. More...

TicFieldDefinition &	operator= (const TicFieldDefinition &arg)=delete

TicFieldDefinition &	operator= (TicFieldDefinition &&arg) noexcept
	The default move-assignment operator. More...

	~TicFieldDefinition (void) override
	The default destructor.

const String &	GetFieldName () const
	Returns the name of the field. More...

DataType	GetDataType () const
	Returns the field data type More...

const String &	GetTypeName () const
	Returns the type name of the struct type. Only allowed for DataType::Struct. More...

uint32	GetArrayElementCount () const
	Returns the array element count. Optional. More...

BitSize	GetOffset () const
	Returns the offset of the field inside the struct definition. More...

ChildTypeDefinition	CreateChildTypeDefinition () const
	Creates an instance of type ChildTypeDefinition More...

bool	TryReadAttribute (TicReader &reader, const String &attributeName) final
	This operation is called every time an attribute is read. More...

bool	TryCreateElement (const String &elementName, ChildPtr &result) final
	Factory method to create child elements. More...

void	OnReadEnd (void) override
	Validates the content of the current element. More...

Impl &	GetImpl (void)
	For internal use only. More...

const Impl &	GetImpl (void) const

Public Member Functions inherited from Arp::Io::Commons::Configuration::TicBase
	TicBase (const TicBase &arg)=delete

	TicBase (TicBase &&arg) noexcept
	Default move constructor.

TicBase &	operator= (const TicBase &arg)=delete

TicBase &	operator= (TicBase &&arg) noexcept
	Default move-assignment operator.

	~TicBase (void) override
	Default destructor.

	TicBase (void)
	Default constructor.

const ChildElements &	GetChildElements (void) const
	Returns all childs of this element. More...

void	ReadTic (TicReader &reader) final
	This operation shall be implemented by all classes which should read its context from Tic files. More...

void	WriteTic (TicWriter &writer) final
	This method is currently not implemented and should not be used. More...

virtual bool	TryReadAttribute (TicReader &reader, const String &attributeName)
	This operation is called every time an attribute is read. More...

virtual bool	TryCreateElement (const String &elementName, ChildPtr &result)
	Factory method to create child elements. More...

virtual bool	TryReadCustomAttribute (TicReader &reader, const String &attributeName)
	This operation is called every time an attribute is read. More...

virtual bool	TryCreateCustomElement (const String &elementName, ChildPtr &result)
	Factory method to create child elements. More...

virtual void	OnReadEnd (void)
	Validates the content of the current element. More...

Impl &	GetImpl (void)
	For internal use only.

const Impl &	GetImpl (void) const

Public Member Functions inherited from Arp::Io::Commons::Configuration::ITicSerializable
	ITicSerializable (void)=default
	Constructs an ITicSerializable instance.

	ITicSerializable (const ITicSerializable &arg)=default
	Copy constructor.

	ITicSerializable (ITicSerializable &&arg) noexcept=default
	Move constructor.

ITicSerializable &	operator= (const ITicSerializable &arg)=default
	Copy-assignment operator.

ITicSerializable &	operator= (ITicSerializable &&arg) noexcept=default
	Move-assignment operator.

virtual	~ITicSerializable (void)=default
	Destructs this instance and frees all resources.

virtual void	ReadTic (TicReader &reader)=0
	This operation shall be implemented to read the content from Tic documents. More...

virtual void	WriteTic (TicWriter &writer)=0
	This operation shall be implemented to write the content to Tic documents. More...

Static Public Member Functions
static const char *	GetTicElementName (void)

Detailed Description

This class is used to read a entity of the type 'IO:FieldDefinition' from an TIC file.

The entity IO:FieldDefinition defines a field of a custom data structure. The data type can be a FDCML type or another custom type. In this case, the optional attribute 'TypeName' must be used. The offset specifies the explicit position in the data structure. The offset and the length of the data type together must be less than or equal to the length of the structure.

Constructor & Destructor Documentation

◆ TicFieldDefinition()

Arp::Io::Commons::Configuration::TicFieldDefinition::TicFieldDefinition ( TicFieldDefinition && arg )

defaultnoexcept

The default move constructor.

Parameters

arg	The argument to move.

Member Function Documentation

◆ CreateChildTypeDefinition()

TicFieldDefinition::ChildTypeDefinition Arp::Io::Commons::Configuration::TicFieldDefinition::CreateChildTypeDefinition ( ) const

Creates an instance of type ChildTypeDefinition

Returns: Created ChildTypeDefinition

◆ GetArrayElementCount()

uint32 Arp::Io::Commons::Configuration::TicFieldDefinition::GetArrayElementCount ( ) const

Returns the array element count. Optional.

Returns: Array element count

◆ GetDataType()

TicFieldDefinition::DataType Arp::Io::Commons::Configuration::TicFieldDefinition::GetDataType ( void ) const

Returns the field data type

Returns: data type of the field

◆ GetFieldName()

const String & Arp::Io::Commons::Configuration::TicFieldDefinition::GetFieldName ( ) const

Returns the name of the field.

Returns: Name of the field

◆ GetImpl()

const TicFieldDefinition::Impl & Arp::Io::Commons::Configuration::TicFieldDefinition::GetImpl ( void )

For internal use only.

Returns: The impl instance.

◆ GetOffset()

TicFieldDefinition::BitSize Arp::Io::Commons::Configuration::TicFieldDefinition::GetOffset ( void ) const

Returns the offset of the field inside the struct definition.

Returns: Field offset

◆ GetTypeName()

const String & Arp::Io::Commons::Configuration::TicFieldDefinition::GetTypeName ( ) const

Returns the type name of the struct type. Only allowed for DataType::Struct.

Bit granular data types like BitstringX are currently not supported.

Returns: Type name

◆ OnReadEnd()

void Arp::Io::Commons::Configuration::TicFieldDefinition::OnReadEnd ( void )

overridevirtual

Validates the content of the current element.

Reimplemented from Arp::Io::Commons::Configuration::TicBase.

◆ operator=()

TicFieldDefinition & Arp::Io::Commons::Configuration::TicFieldDefinition::operator= ( TicFieldDefinition && arg )

defaultnoexcept

The default move-assignment operator.

Parameters

arg	The argument to move.

Returns: This instance.

◆ TryCreateElement()

bool Arp::Io::Commons::Configuration::TicFieldDefinition::TryCreateElement	(	const String &	elementName,
		ChildPtr &	result
	)

finalvirtual

Factory method to create child elements.

Reimplemented from Arp::Io::Commons::Configuration::TicBase.

◆ TryReadAttribute()

bool Arp::Io::Commons::Configuration::TicFieldDefinition::TryReadAttribute	(	TicReader &	reader,
		const String &	attributeName
	)

finalvirtual

This operation is called every time an attribute is read.

Reimplemented from Arp::Io::Commons::Configuration::TicBase.

The documentation for this class was generated from the following files:

Arp/Io/Commons/Configuration/TicFieldDefinition.hpp
Arp/Io/Commons/Configuration/TicFieldDefinition.cpp
