Arp::System::Um::Services::IAuthorizationInfoService Class Reference

This service checks if a session has particular permissions for protected entity operations. More...

#include <IAuthorizationInfoService.hpp>

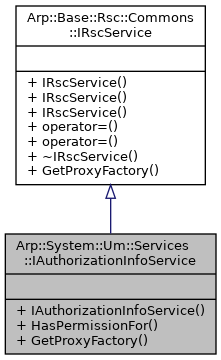

Inheritance diagram for Arp::System::Um::Services::IAuthorizationInfoService:

Public Types
using	Ptr = std::shared_ptr< IAuthorizationInfoService >
Public Types inherited from Arp::Base::Rsc::Commons::IRscService
using	Ptr = std::shared_ptr< IRscService >
	The shared_ptr type of IRscService.

Public Member Functions
	IAuthorizationInfoService (void)=default
	Constructs an IAuthorizationInfoService instance.
virtual boolean	HasPermissionFor (const RscString< 512 > &entity, Operation operation, SecurityToken securityToken)=0
	Checks if the specified session has permission to execute particular entity operations, e.g. calling Rsc service operations, accessing files, reading data. Note: This method must not be called remotely via the RSC-Gateway and will throw an exception if attempted. More...
Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
	IRscService (void)=default
	The default constructor.
	IRscService (const IRscService &arg)=delete
	The deleted copy constructor. More...
	IRscService (IRscService &&arg) noexcept=default
	The default move constructor. More...
IRscService &	operator= (const IRscService &arg)=delete
	The deleted assignment operator. More...
IRscService &	operator= (IRscService &&arg) noexcept=default
	The default move-assignment operator. More...
virtual	~IRscService (void)=default
	Destructs this instance and frees all resources.

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)
Static Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of this service. More...

Detailed Description

This service checks if a session has particular permissions for protected entity operations.

This service is only usable from the SDK for other processes running on the same PLC; it is not intended for remote (client) use over the RSC-Gateway.
All code snippets are written for C++ usage.

This service is defined in library Arp.System.Um.

Realtime Usage: This API call does not have to be deterministic in runtime behaviour, so an asynchronous execution should be considered.

Member Function Documentation

HasPermissionFor()

virtual boolean Arp::System::Um::Services::IAuthorizationInfoService::HasPermissionFor ( const RscString< 512 > &  entity, Operation  operation, SecurityToken  securityToken  )

pure virtual

Checks if the specified session has permission to execute particular entity operations, e.g. calling Rsc service operations, accessing files, reading data. Note: This method must not be called remotely via the RSC-Gateway and will throw an exception if attempted.

The example below checks permission for a user on an non-existant(!) service.
The Securitytoken to check on is initialized by logging in as the user themselves (ex. Arp.System.Um.Services.IPasswordAuthenticationService)
or by converting the user's session to a SecurityToken Arp.System.Um.Services.ISessionService. Checking for users permissions on SecurityToken userToken = ... //see summary IAuthorizationInfoService authorizationInfoService = ... // subscribe to service auto userCanAccessService = authorizationInfoService.HasPermissionFor("arp.rsc.gateway/Arp/Arp.System.Um.Services.ITestService/GetTestData", Operation::Call, userToken);

Parameters

entity	The protected entity to check the permission for, e.g. Rsc service operations, files, Gds data points. See default permission-config file on a target for examples.
operation	The operation to be executed on the entity.

The operation to be executed on the entity, like Arp.System.Um.Services.Operation.Call to invoke Rsc services or Arp.System.Um.Services.Operation.ReadValue to read values of Gds data points. All values of this enum can be found at Arp.System.Um.Services.Operation.

Parameters

securityToken

The security token of the session to check the permission for, which has been obtained through Arp.System.Um.Services.IPasswordAuthenticationService

Returns

true if the access is granted, otherwise false.

---

The documentation for this class was generated from the following file:

• Arp/System/Um/Services/IAuthorizationInfoService.hpp
