Class with represents a Identity (Certificate with Chain and private Key) and is able to initialize an OpenSSL SSL Context This is an internal class used by TlsSocket More...

#include <IdentityStore.hpp>

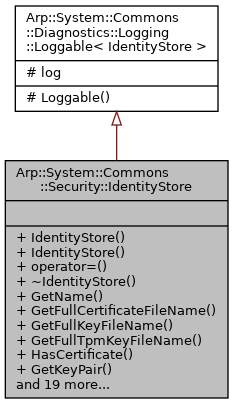

Inheritance diagram for Arp::System::Commons::Security::IdentityStore:

Public Types
enum	KeyMustExist : bool { IgnoreMissingKey = false , RequireKeyExists = true }
	Enum which dicates if the key in the IdentityStore must exist or if this can be ignored

Public Member Functions
	IdentityStore (const String &basePath, const String &name, KeyMustExist requireKeyExists=RequireKeyExists)
	Constructs an IdentityStore instance.

	IdentityStore (const IdentityStore &arg)=delete
	Copy constructor.

IdentityStore &	operator= (const IdentityStore &arg)=delete
	Assignment operator.

	~IdentityStore (void)=default
	Destructs this instance and frees all resources.

String	GetName (void) const
	Returns the name of the IdentityStore

String	GetFullCertificateFileName (void) const
	Returns the absolute path to the certificate file

String	GetFullKeyFileName (void) const
	Returns the absolute path to the key file

String	GetFullTpmKeyFileName (void) const
	Returns the absolute path to the tpm key file

bool	HasCertificate (void)
	checks if a certificate is available for this IdentityStore

const std::shared_ptr< KeyPair > &	GetKeyPair (void)
	Returns a shared_ptr to the KeyPair of this IdentityStore

KeyPairType	GetKeyType (void)
	Returns the type of the key pair

void	InitSslContext (SSL_CTX *pSslCtx) const
	Initializes a OpenSSL SSL_CTX Structure with the private key and certificate More...

std::vector< byte >	GetPublicKey (void)
	Reads the public key in PEM format More...

SecurityConfigurationError	SetKeyPair (const std::vector< byte > &pemData)
	Sets or overwrites the keypair from the PEM encoded given bytes More...

SecurityConfigurationError	SetCertificate (const std::vector< byte > &pemData)
	Sets or overwrites the certificate from the PEM encoded given bytes More...

std::vector< byte >	GetPemCertificate (void)
	Gets the certificate as byte array in PEM format More...

const Certificate &	GetCertificate (void) const

const std::vector< Certificate > &	GetIssuerCertificates (void) const

std::vector< byte >	GetDerCertificate (void)
	Gets the certificate as byte array in DER format More...

std::vector< byte >	GetPemCertificateWithChain (void)
	Gets the certificate as byte array in PEM format with issuer certificates appended More...

std::vector< byte >	GetDerCertificateWithChain (void)
	Get the certificate as byte array in DER format with issuer certificates appended More...

std::vector< std::vector< byte > >	GetIssuerPemCertificates (void)
	Get the issuer certificates in PEM format

void	CreateAllDirectories (void)
	Creates all needed directories inside the folder of this IdentityStore

SecurityConfigurationError	ListContent (SecurityListType type, std::vector< ItemInfo > &result)
	Lists all elements in the list referenced by their SecurityListType More...

SecurityConfigurationError	AddElement (SecurityListType type, const std::vector< byte > &pemData)
	Adds an element into the list referenced by SecurityListType More...

SecurityConfigurationError	DeleteElement (SecurityListType type, const String &identifier)
	Delete an elements from the list referenced by ListType, identified by identifier More...

SecurityConfigurationError	GenerateKeyPair (KeyPairType type)
	Generate a new KeyPair for this IdentityStore More...

std::vector< byte >	GenerateCSR ()
	Generate a Certificate Signing Request (CSR) for the Key Pair of this IdentityStore More...

bool	VerifyCertMatchesWithPrivateKey (void)
	Verifies if the certificates matches with the key pair More...

Detailed Description

Class with represents a Identity (Certificate with Chain and private Key) and is able to initialize an OpenSSL SSL Context This is an internal class used by TlsSocket

Member Function Documentation

◆ AddElement()

SecurityConfigurationError Arp::System::Commons::Security::IdentityStore::AddElement	(	SecurityListType	type,
		const std::vector< byte > &	pemData
	)

Adds an element into the list referenced by SecurityListType

Parameters

type	Which contenttype should be listed
pemData	A vector of PEM encoded bytes for the element to be added

Returns: Arp::System::Commons::Security::SecurityConfigurationError::None if operation was successful. Otherwise a fitting error code.

◆ DeleteElement()

SecurityConfigurationError Arp::System::Commons::Security::IdentityStore::DeleteElement	(	SecurityListType	type,
		const String &	identifier
	)

Delete an elements from the list referenced by ListType, identified by identifier

Returns: Arp::System::Commons::Security::SecurityConfigurationError::None if operation was successful. Otherwise a fitting error code.

◆ GenerateCSR()

std::vector< byte > Arp::System::Commons::Security::IdentityStore::GenerateCSR ( void )

Generate a Certificate Signing Request (CSR) for the Key Pair of this IdentityStore

Returns: byte vector with generated CSR in PEM format

◆ GenerateKeyPair()

SecurityConfigurationError Arp::System::Commons::Security::IdentityStore::GenerateKeyPair ( KeyPairType type )

Generate a new KeyPair for this IdentityStore

Parameters

type	Which key pair type should be generated

Not all targets support all key pairs

Returns: Arp::System::Commons::Security::SecurityConfigurationError::None if operation was successful. Otherwise a fitting error code.

◆ GetDerCertificate()

std::vector< byte > Arp::System::Commons::Security::IdentityStore::GetDerCertificate ( void )

Gets the certificate as byte array in DER format

Returns: byte vector with DER encoded certificate

◆ GetDerCertificateWithChain()

std::vector< byte > Arp::System::Commons::Security::IdentityStore::GetDerCertificateWithChain ( void )

Get the certificate as byte array in DER format with issuer certificates appended

Returns: byte vector with DER encoded certificate with all certificates from its chain appended

◆ GetPemCertificate()

std::vector< byte > Arp::System::Commons::Security::IdentityStore::GetPemCertificate ( void )

Gets the certificate as byte array in PEM format

Returns: byte vector with PEM encoded certificate

◆ GetPemCertificateWithChain()

std::vector< byte > Arp::System::Commons::Security::IdentityStore::GetPemCertificateWithChain ( void )

Gets the certificate as byte array in PEM format with issuer certificates appended

Returns: byte vector with PEM encoded certificate with all certificates from its chain appended

◆ GetPublicKey()

std::vector< byte > Arp::System::Commons::Security::IdentityStore::GetPublicKey ( void )

Reads the public key in PEM format

Returns: byte vector with PEM encoded public key

◆ InitSslContext()

void Arp::System::Commons::Security::IdentityStore::InitSslContext ( SSL_CTX * pSslCtx ) const

Initializes a OpenSSL SSL_CTX Structure with the private key and certificate

Parameters

pSslCtx Pointer to the OpenSSL SSL_CTX structure to initialize

◆ ListContent()

SecurityConfigurationError Arp::System::Commons::Security::IdentityStore::ListContent	(	SecurityListType	type,
		std::vector< ItemInfo > &	result
	)

Lists all elements in the list referenced by their SecurityListType

Parameters

type	Which contenttype should be listed
result	A vector of ItemInfo in which the listed content is written to

Returns: Arp::System::Commons::Security::SecurityConfigurationError::None if operation was successful. Otherwise a fitting error code.

◆ SetCertificate()

SecurityConfigurationError Arp::System::Commons::Security::IdentityStore::SetCertificate ( const std::vector< byte > & pemData )

Sets or overwrites the certificate from the PEM encoded given bytes

Parameters

pemData A byte vector with the PEM encoded certificate

Returns: Arp::System::Commons::Security::SecurityConfigurationError::None if operation was successful. Otherwise a fitting error code.

◆ SetKeyPair()

SecurityConfigurationError Arp::System::Commons::Security::IdentityStore::SetKeyPair ( const std::vector< byte > & pemData )

Sets or overwrites the keypair from the PEM encoded given bytes

Parameters

pemData A byte vector with the PEM encoded key pair

Returns: Arp::System::Commons::Security::SecurityConfigurationError::None if operation was successful. Otherwise a fitting error code.

◆ VerifyCertMatchesWithPrivateKey()

bool Arp::System::Commons::Security::IdentityStore::VerifyCertMatchesWithPrivateKey ( void )

Verifies if the certificates matches with the key pair

Returns: true if the certificate matches the private key, false otherwise

The documentation for this class was generated from the following files:

Arp/System/Commons/Security/IdentityStore.hpp
Arp/System/Commons/Security/IdentityStore.cpp
