Data structure for notifications from the NotificationLogger More...

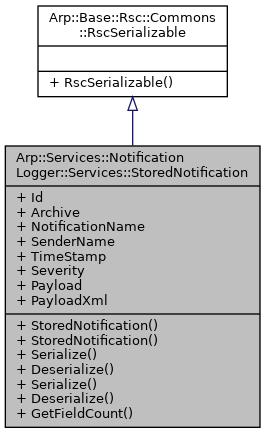

Inheritance diagram for Arp::Services::NotificationLogger::Services::StoredNotification:

Public Member Functions
	StoredNotification (void)
	Constructs an StoredNotification instance.

	StoredNotification (uint64 id, const RscString< 512 > &archive, const RscString< 512 > &notificationName, const RscString< 512 > &senderName, const RscString< 512 > &timeStamp, const RscString< 512 > &severity, const std::vector< RscString< 512 > > &payload, const std::vector< RscString< 512 > > &payloadXml)
	Constructs an StoredNotification instance.

void	Serialize (RscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

void	Serialize (JRscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter. More...

void	Deserialize (JRscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader. More...

Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable
	RscSerializable (void)=default
	The default constructor.

Static Public Member Functions
static size_t	GetFieldCount (void)
	Returns the count of fields More...

Public Attributes
uint64	Id = 0
	Id of the notification

RscString< 512 >	Archive
	name of the archive the notification was retreived from. If the same notification was stored in multiple archives this field contains a comma separated list of the archives

RscString< 512 >	NotificationName
	Name of the notification

RscString< 512 >	SenderName
	Nme of the sender

RscString< 512 >	TimeStamp
	timestamp when the notification was sent

RscString< 512 >	Severity
	Severity

std::vector< RscString< 512 > >	Payload
	Formatted payload

std::vector< RscString< 512 > >	PayloadXml
	Payload as XML

Detailed Description

Data structure for notifications from the NotificationLogger

Member Function Documentation

void Arp::Services::NotificationLogger::Services::StoredNotification::Deserialize ( JRscReader & reader )

Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader.

Parameters

reader Reference to RscReader.

void Arp::Services::NotificationLogger::Services::StoredNotification::Deserialize ( RscReader & reader )

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

size_t Arp::Services::NotificationLogger::Services::StoredNotification::GetFieldCount ( void )

static

Returns the count of fields

The field count is used for serialization via Rsc

void Arp::Services::NotificationLogger::Services::StoredNotification::Serialize ( JRscWriter & writer ) const

Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter.

Parameters

writer Reference to RscWriter

void Arp::Services::NotificationLogger::Services::StoredNotification::Serialize ( RscWriter & writer ) const

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

The documentation for this class was generated from the following files:
