This structure is used for PLCnext application information indication. More...

#include <AppInfo.hpp>

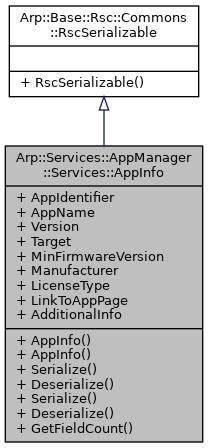

Inheritance diagram for Arp::Services::AppManager::Services::AppInfo:

Public Member Functions
	AppInfo (void)
	Constructs an AppInfo instance.

	AppInfo (const RscString< 256 > &appIdentifier, const RscString< 256 > &appName, const RscString< 256 > &version, const RscString< 256 > &target, const RscString< 256 > &minFirmwareVersion, const RscString< 256 > &manufacturer, AppLicenseType licenseType, const RscString< 512 > &linkToAppPage, const std::vector< AdditionalAppInfo > &additionalInfo)
	Constructs an AppInfo instance.

void	Serialize (RscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

void	Serialize (JRscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter. More...

void	Deserialize (JRscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader. More...

Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable
	RscSerializable (void)=default
	The default constructor.

Static Public Member Functions
static size_t	GetFieldCount (void)
	Returns the count of fields More...

Public Attributes
RscString< 256 >	AppIdentifier
	The unique identifier for the application.

RscString< 256 >	AppName
	The name of the application.

RscString< 256 >	Version
	The version of the application.

RscString< 256 >	Target
	The target platform for the application.

RscString< 256 >	MinFirmwareVersion
	The minimum firmware version required for the application.

RscString< 256 >	Manufacturer
	The manufacturer of the application.

AppLicenseType	LicenseType = static_cast<AppLicenseType>(0)
	The type of license the application is distributed under.

RscString< 512 >	LinkToAppPage
	URL that points to a web page providing the app (optional)

std::vector< AdditionalAppInfo >	AdditionalInfo
	Additional infomation (optional).

Detailed Description

This structure is used for PLCnext application information indication.

Member Function Documentation

void Arp::Services::AppManager::Services::AppInfo::Deserialize ( JRscReader & reader )

Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader.

Parameters

reader Reference to RscReader.

void Arp::Services::AppManager::Services::AppInfo::Deserialize ( RscReader & reader )

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

size_t Arp::Services::AppManager::Services::AppInfo::GetFieldCount ( void )

static

Returns the count of fields

The field count is used for serialization via Rsc

void Arp::Services::AppManager::Services::AppInfo::Serialize ( JRscWriter & writer ) const

Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter.

Parameters

writer Reference to RscWriter

void Arp::Services::AppManager::Services::AppInfo::Serialize ( RscWriter & writer ) const

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

The documentation for this class was generated from the following files:
