Stores the data to be read, written by the controller and a possible data access error. More...
#include <ReadItem.hpp>

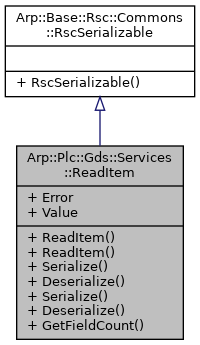

Inheritance diagram for Arp::Plc::Gds::Services::ReadItem:
Public Member Functions | |
| ReadItem (void) | |
| Constructs an ReadItem instance. | |
| ReadItem (DataAccessError error, const RscVariant< 512 > &value) | |
| Constructs an ReadItem instance. | |
| void | Serialize (RscWriter &writer) const |
| Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More... | |
| void | Deserialize (RscReader &reader) |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More... | |
| void | Serialize (JRscWriter &writer) const |
| Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter. More... | |
| void | Deserialize (JRscReader &reader) |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader. More... | |
 Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable | |
| RscSerializable (void)=default | |
| The default constructor. | |
Static Public Member Functions | |
| static size_t | GetFieldCount (void) |
| Returns the count of fields More... | |
Public Attributes | |
| DataAccessError | Error = static_cast<DataAccessError>(0) |
| Contains the possible data access errors. | |
| RscVariant< 512 > | Value |
| Contains the data to be read, written by the controller. | |
Detailed Description
Stores the data to be read, written by the controller and a possible data access error.
Member Function Documentation
◆ Deserialize() [1/2]
| void Arp::Plc::Gds::Services::ReadItem::Deserialize | ( | JRscReader & | reader | ) |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader.
- Parameters
-
reader Reference to RscReader.
◆ Deserialize() [2/2]
| void Arp::Plc::Gds::Services::ReadItem::Deserialize | ( | RscReader & | reader | ) |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.
- Parameters
-
reader Reference to RscReader.
◆ GetFieldCount()
|
static |
Returns the count of fields
- Returns
- Count of fields.
The field count is used for serialization via Rsc
◆ Serialize() [1/2]
| void Arp::Plc::Gds::Services::ReadItem::Serialize | ( | JRscWriter & | writer | ) | const |
Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter.
- Parameters
-
writer Reference to RscWriter
◆ Serialize() [2/2]
| void Arp::Plc::Gds::Services::ReadItem::Serialize | ( | RscWriter & | writer | ) | const |
Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.
- Parameters
-
writer Reference to RscWriter
The documentation for this class was generated from the following files:
- Arp/Plc/Gds/Services/ReadItem.hpp
- Arp/Plc/Gds/Services/ReadItem.cpp
