A force item structure. More...
#include <ForceItem.hpp>

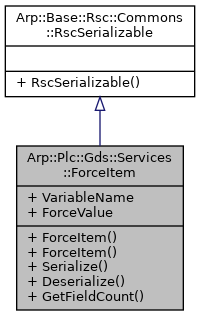

Inheritance diagram for Arp::Plc::Gds::Services::ForceItem:
Public Member Functions | |
| ForceItem (void) | |
| Constructs an ForceItem instance. | |
| ForceItem (const RscString< 512 > &variableName, const RscVariant< 512 > &forceValue) | |
| Constructs an ForceItem instance. | |
| void | Serialize (RscWriter &writer) const |
| Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More... | |
| void | Deserialize (RscReader &reader) |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More... | |
 Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable | |
| RscSerializable (void)=default | |
| The default constructor. | |
Static Public Member Functions | |
| static size_t | GetFieldCount (void) |
| Returns the count of fields More... | |
Public Attributes | |
| RscString< 512 > | VariableName |
| The instance path of the forced item. | |
| RscVariant< 512 > | ForceValue |
| The value of the forced item. | |
Detailed Description
A force item structure.
Member Function Documentation
◆ Deserialize()
| void Arp::Plc::Gds::Services::ForceItem::Deserialize | ( | RscReader & | reader | ) |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.
- Parameters
-
reader Reference to RscReader.
◆ GetFieldCount()
|
static |
Returns the count of fields
- Returns
- Count of fields.
The field count is used for serialization via Rsc
◆ Serialize()
| void Arp::Plc::Gds::Services::ForceItem::Serialize | ( | RscWriter & | writer | ) | const |
Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.
- Parameters
-
writer Reference to RscWriter
The documentation for this class was generated from the following files:
- Arp/Plc/Gds/Services/ForceItem.hpp
- Arp/Plc/Gds/Services/ForceItem.cpp
