Arp::Plc::Commons::Esm::RtEvent Class Reference

Rt event for bidirectional exchange of events in the ESM context. Instances of this will be created by the configuration of ESM and can be get with the RtEventManagerProxy. More...

#include <RtEvent.hpp>

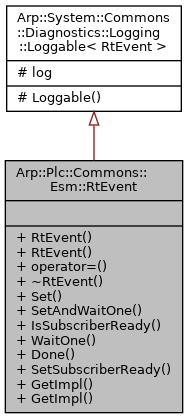

Inheritance diagram for Arp::Plc::Commons::Esm::RtEvent:

Public Types
using	Ptr = RtEventManagerSharedData::Ptr< RtEvent >
	Shared pointer type of RtEvent.

Public Member Functions
	RtEvent ()
	Constructs an RtEvent instance.
	RtEvent (const RtEvent &arg)=delete
	Copy constructor.
RtEvent &	operator= (const RtEvent &arg)=delete
	Assignment operator.
	~RtEvent (void)
	Destructs this instance and frees all resources.
void	Set (void)
	Signals the event to the subscriber.
bool	SetAndWaitOne (unsigned long timeout=0)
	Signals the event to the subscriber and waits blocking on the done by the subscriber. More...
bool	IsSubscriberReady (void) const
	Returns state of the subscriber to processing incoming signaled events. More...
bool	WaitOne (unsigned long timeout=0, bool setSubscriberReady=true)
	Waits blocking on the signal of the sender. More...
void	Done (void)
	Signals that the event was processed by the subscriber to the sender.
void	SetSubscriberReady (bool isSubscriberReady)
	Sets the state of the subscriber to processing incoming signaled events. More...
Impl &	GetImpl (void)
	For internal use only.
const Impl &	GetImpl (void) const

Detailed Description

Rt event for bidirectional exchange of events in the ESM context. Instances of this will be created by the configuration of ESM and can be get with the RtEventManagerProxy.

Member Function Documentation

IsSubscriberReady()

bool Arp::Plc::Commons::Esm::RtEvent::IsSubscriberReady

(

void

)

const

Returns state of the subscriber to processing incoming signaled events.

Returns

State of the subscriber. "true" marks the subscriber is ready to processing incoming signaled events.

SetAndWaitOne()

bool Arp::Plc::Commons::Esm::RtEvent::SetAndWaitOne

(

unsigned long

timeout = 0

)

Signals the event to the subscriber and waits blocking on the done by the subscriber.

Parameters

timeout

Timeout in milliseconds to wait for the done to become processed. If the value is set to 0 (default) the calling thread will wait infinitely or until the event is signaled.

Returns

Returns false if the timeout was reached before the event was signaled, otherwise true is returned.

SetSubscriberReady()

void Arp::Plc::Commons::Esm::RtEvent::SetSubscriberReady

(

bool

isSubscriberReady

)

Sets the state of the subscriber to processing incoming signaled events.

Parameters

isSubscriberReady

The state of the subscriber. "true" marks the subscriber is ready to processing incoming signaled events.

WaitOne()

bool Arp::Plc::Commons::Esm::RtEvent::WaitOne	(	unsigned long	timeout = 0,
		bool	setSubscriberReady = true
	)

Waits blocking on the signal of the sender.

Parameters

timeout	Timeout in milliseconds to wait for the incoming signal of sender. If the value is set to 0 (default) the calling thread will wait infinitely or until the event is set.
setSubscriberReady	If the parameter true, the method sets the subscriber ready implicit. Default is this parameter true.

Returns

Returns false if the timeout was reached before the event was signaled, otherwise true is returned.

---

The documentation for this class was generated from the following files:

• Arp/Plc/Commons/Esm/RtEvent.hpp
• Arp/Plc/Commons/Esm/RtEvent.cpp
