Arp::Io::ProfinetStack::Controller::Services::ModuleDifference Class Reference

Module data with differences More...

#include <ModuleDifference.hpp>

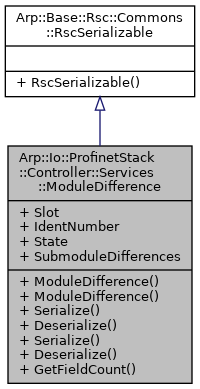

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::ModuleDifference:

Public Member Functions
	ModuleDifference (void)
	Constructs an ModuleDifference instance.
	ModuleDifference (uint16 slot, uint32 identNumber, uint16 state, const std::vector< SubmoduleDifference > &submoduleDifferences)
	Constructs an ModuleDifference instance.
void	Serialize (RscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...
void	Deserialize (RscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...
void	Serialize (JRscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter. More...
void	Deserialize (JRscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader. More...
Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable
	RscSerializable (void)=default
	The default constructor.

Static Public Member Functions
static size_t	GetFieldCount (void)
	Returns the count of fields More...

Public Attributes
uint16	Slot = 0
	Slot number
uint32	IdentNumber = 0
	Module IdentNumber
uint16	State = 0
	Module state. It can contain the following values: Value Description 0x0000 No module (e.g. module not plugged). 0x0001 Wrong module (e.g. ident number wrong). 0x0002 Module is okay, but at least one submodule is locked, wrong or missing. 0x0003 Module is not the same as requested, but the IO device was able to adapt through its own knowledge
std::vector< SubmoduleDifference >	SubmoduleDifferences
	Configured submodules with differences

Detailed Description

Module data with differences

Member Function Documentation

Deserialize() [1/2]

void Arp::Io::ProfinetStack::Controller::Services::ModuleDifference::Deserialize

(

JRscReader &

reader

)

Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader.

Parameters

reader

Reference to RscReader.

Deserialize() [2/2]

void Arp::Io::ProfinetStack::Controller::Services::ModuleDifference::Deserialize

(

RscReader &

reader

)

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader

Reference to RscReader.

GetFieldCount()

size_t Arp::Io::ProfinetStack::Controller::Services::ModuleDifference::GetFieldCount ( void  )

static

Returns the count of fields

Returns

Count of fields.

The field count is used for serialization via Rsc

Serialize() [1/2]

void Arp::Io::ProfinetStack::Controller::Services::ModuleDifference::Serialize

(

JRscWriter &

writer

)

const

Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter.

Parameters

writer

Reference to RscWriter

Serialize() [2/2]

void Arp::Io::ProfinetStack::Controller::Services::ModuleDifference::Serialize

(

RscWriter &

writer

)

const

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer

Reference to RscWriter

---

The documentation for this class was generated from the following files:

• Arp/Io/ProfinetStack/Controller/Services/ModuleDifference.hpp
• Arp/Io/ProfinetStack/Controller/Services/ModuleDifference.cpp
