Container for a combination of an error code and a value which is a result for a read operation to a single setting. More...
#include <DiagnosticInfo.hpp>
Public Member Functions | |
| DiagnosticInfo (void) | |
| Constructs an DiagnosticInfo instance. | |
| DiagnosticInfo (uint16 arUserId, uint16 diagCode) | |
| Constructs an DiagnosticInfo instance. | |
| void | Serialize (RscWriter &writer) const |
| Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More... | |
| void | Deserialize (RscReader &reader) |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More... | |
| void | Serialize (JRscWriter &writer) const |
| Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter. More... | |
| void | Deserialize (JRscReader &reader) |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader. More... | |

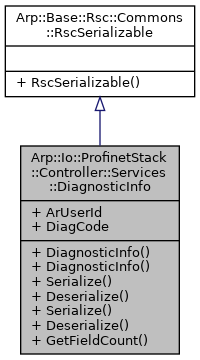

 Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable | |
| RscSerializable (void)=default | |
| The default constructor. | |
Static Public Member Functions | |
| static size_t | GetFieldCount (void) |
| Returns the count of fields More... | |
Public Attributes | |
| uint16 | ArUserId = 0 |
| User specific identifier of this AR | |
| uint16 | DiagCode = 0 |
| Special status of this AR, bitwise coded. More... | |
Detailed Description
Container for a combination of an error code and a value which is a result for a read operation to a single setting.
A sequence of instances of this structure is used as result by Arp.Io.ProfinetStack.Controller.Services.IArDataService.GetArDiagnosis.
Member Function Documentation
◆ Deserialize() [1/2]
| void Arp::Io::ProfinetStack::Controller::Services::DiagnosticInfo::Deserialize | ( | JRscReader & | reader | ) |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader.
- Parameters
-
reader Reference to RscReader.
◆ Deserialize() [2/2]
| void Arp::Io::ProfinetStack::Controller::Services::DiagnosticInfo::Deserialize | ( | RscReader & | reader | ) |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.
- Parameters
-
reader Reference to RscReader.
◆ GetFieldCount()
|
static |
Returns the count of fields
- Returns
- Count of fields.
The field count is used for serialization via Rsc
◆ Serialize() [1/2]
| void Arp::Io::ProfinetStack::Controller::Services::DiagnosticInfo::Serialize | ( | JRscWriter & | writer | ) | const |
Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter.
- Parameters
-
writer Reference to RscWriter
◆ Serialize() [2/2]
| void Arp::Io::ProfinetStack::Controller::Services::DiagnosticInfo::Serialize | ( | RscWriter & | writer | ) | const |
Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.
- Parameters
-
writer Reference to RscWriter
Member Data Documentation
◆ DiagCode
| uint16 Arp::Io::ProfinetStack::Controller::Services::DiagnosticInfo::DiagCode = 0 |
Special status of this AR, bitwise coded.
- Bit 0: set if not connected
- Bit 1: set if data invalid
- Bit 2: set if diagnosis is available
- Bit 3: set if module difference is available in case of configuration difference
- Bit 4: set if AR is deactivated
- Bit 5: set if neighborhood information is not available
- Bit 6: neighborhood information not unique
- Bit 7 - Identify.cnf on alias received, but name of the device is already configured in another AR
- Bit 8: Maintenance Required Information is available
- Bit 9: Maintenance Demanded Information is available
- Bit 10: Channel or Manufacturer Specific Diagnosis Information are available
- Bit 11..15: reserved (shall be 0)
The documentation for this class was generated from the following files:
- Arp/Io/ProfinetStack/Controller/Services/DiagnosticInfo.hpp
- Arp/Io/ProfinetStack/Controller/Services/DiagnosticInfo.cpp
