Delivers diagnostic information of a slave More...

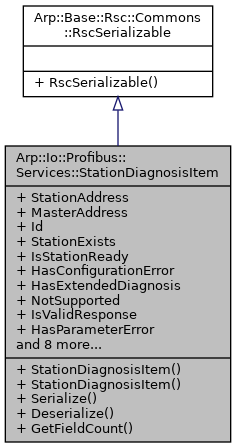

Inheritance diagram for Arp::Io::Profibus::Services::StationDiagnosisItem:

Public Member Functions
	StationDiagnosisItem (void)
	Constructs an StationDiagnosisItem instance.

	StationDiagnosisItem (uint8 stationAddress, uint8 masterAddress, uint16 id, boolean stationExists, boolean isStationReady, boolean hasConfigurationError, boolean hasExtendedDiagnosis, boolean notSupported, boolean isValidResponse, boolean hasParameterError, boolean hasMasterLock, boolean requiresParameterization, boolean hasStaticDiagnosis, boolean watchdogEnabled, boolean isFreezed, boolean isSynced, boolean isSlaveEnabled, const std::vector< byte > &extendedDiagnosisData)
	Constructs an StationDiagnosisItem instance.

void	Serialize (RscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable
	RscSerializable (void)=default
	The default constructor.

Static Public Member Functions
static size_t	GetFieldCount (void)
	Returns the count of fields More...

Public Attributes
uint8	StationAddress = 0
	Contain station address of slave

uint8	MasterAddress = 0
	Contains station address of master which configured the slave

uint16	Id = 0
	Identification number of slave given by manufacturer

boolean	StationExists = false
	Slave does exist and is responding

boolean	IsStationReady = false
	Slave is ready for cyclic data transfer

boolean	HasConfigurationError = false
	Internal configuration of the slave differs from the master configuration

boolean	HasExtendedDiagnosis = false
	Extended diagnostic information available

boolean	NotSupported = false
	Requested command is not supported by slave

boolean	IsValidResponse = false
	Response of slave was valid.

boolean	HasParameterError = false
	Last parameter telegram was defective or incorrect

boolean	HasMasterLock = false
	Slave has been parameterized by another master

boolean	RequiresParameterization = false
	Slave requires new parameterization and configuration

boolean	HasStaticDiagnosis = false
	Master needs to request diagnostic information from slave again. Slave is not ready for data exchange because of general error.

boolean	WatchdogEnabled = false
	Watchdog timer supervision mechanism is activated

boolean	IsFreezed = false
	Slaves has received a "Freeze" command

boolean	IsSynced = false
	Slave has received a "Sync" command

boolean	IsSlaveEnabled = false
	Slave has been projected

std::vector< byte >	ExtendedDiagnosisData
	Contains extended diagnosis data if 'ExtendedDiagnosis' is set

Detailed Description

Delivers diagnostic information of a slave

Member Function Documentation

void Arp::Io::Profibus::Services::StationDiagnosisItem::Deserialize ( RscReader & reader )

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

size_t Arp::Io::Profibus::Services::StationDiagnosisItem::GetFieldCount ( void )

static

Returns the count of fields

The field count is used for serialization via Rsc

void Arp::Io::Profibus::Services::StationDiagnosisItem::Serialize ( RscWriter & writer ) const

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter
