Arp::Io::Interbus::Services::InterbusResult Class Reference

Contains error information of an Interbus service. More...

#include <InterbusResult.hpp>

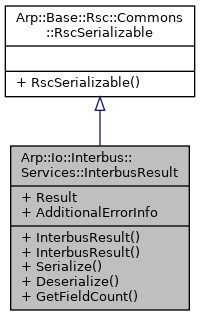

Inheritance diagram for Arp::Io::Interbus::Services::InterbusResult:

Public Member Functions
	InterbusResult (void)
	Constructs an InterbusResult instance.
	InterbusResult (uint16 result, uint16 additionalErrorInfo)
	Constructs an InterbusResult instance.
void	Serialize (RscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...
void	Deserialize (RscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...
Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable
	RscSerializable (void)=default
	The default constructor.

Static Public Member Functions
static size_t	GetFieldCount (void)
	Returns the count of fields More...

Public Attributes
uint16	Result = 0
	Result describes the error cause. (0 = No error) To get the meaning of Result, please refer to the Interbus manual for firmware services. There you will find a section of error codes.
uint16	AdditionalErrorInfo = 0
	AdditionalErrorInfo gives additional information about the error cause described by Result. To get the meaning of AdditionalErrorInfo, please refer to the Interbus manual for firmware services. There you will find a section of error codes.

Detailed Description

Contains error information of an Interbus service.

Member Function Documentation

Deserialize()

void Arp::Io::Interbus::Services::InterbusResult::Deserialize

(

RscReader &

reader

)

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader

Reference to RscReader.

GetFieldCount()

size_t Arp::Io::Interbus::Services::InterbusResult::GetFieldCount ( void  )

static

Returns the count of fields

Returns

Count of fields.

The field count is used for serialization via Rsc

Serialize()

void Arp::Io::Interbus::Services::InterbusResult::Serialize

(

RscWriter &

writer

)

const

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer

Reference to RscWriter

---

The documentation for this class was generated from the following files:

• Arp/Io/Interbus/Services/InterbusResult.hpp
• Arp/Io/Interbus/Services/InterbusResult.cpp
