Arp::Io::Interbus::Services::DeviceConfiguration Class Reference

Contains parameter of an Interbus module for ReadConfiguration() and WriteConfiguration() of the Interbus. More...

#include <DeviceConfiguration.hpp>

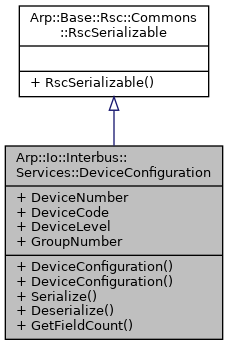

Inheritance diagram for Arp::Io::Interbus::Services::DeviceConfiguration:

Public Member Functions
	DeviceConfiguration (void)
	Constructs an DeviceConfiguration instance.
	DeviceConfiguration (uint16 deviceNumber, uint16 deviceCode, uint16 deviceLevel, uint16 groupNumber)
	Constructs an DeviceConfiguration instance.
void	Serialize (RscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...
void	Deserialize (RscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...
Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable
	RscSerializable (void)=default
	The default constructor.

Static Public Member Functions
static size_t	GetFieldCount (void)
	Returns the count of fields More...

Public Attributes
uint16	DeviceNumber = 0
	Device number: High Byte: BusSegmentNo, Low Byte: Position. For direct conneted local bus: BusSegmentNo 0, Position wtih left to right order, starting with 1.
uint16	DeviceCode = 0
	Device code: High Byte: Length Code, Low Byte: ID Code, see device documentation.
uint16	DeviceLevel = 0
	Device level: Level between 0 and 15, for direct conneted local bus 0.
uint16	GroupNumber = 0
	Group number: High Byte: Group, Low Byte: Alternative Only need for Control_Active_Configuration, default 0xFFFF.

Detailed Description

Contains parameter of an Interbus module for ReadConfiguration() and WriteConfiguration() of the Interbus.

Member Function Documentation

Deserialize()

void Arp::Io::Interbus::Services::DeviceConfiguration::Deserialize

(

RscReader &

reader

)

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader

Reference to RscReader.

GetFieldCount()

size_t Arp::Io::Interbus::Services::DeviceConfiguration::GetFieldCount ( void  )

static

Returns the count of fields

Returns

Count of fields.

The field count is used for serialization via Rsc

Serialize()

void Arp::Io::Interbus::Services::DeviceConfiguration::Serialize

(

RscWriter &

writer

)

const

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer

Reference to RscWriter

---

The documentation for this class was generated from the following files:

• Arp/Io/Interbus/Services/DeviceConfiguration.hpp
• Arp/Io/Interbus/Services/DeviceConfiguration.cpp
