This service provides acyclic communication with devices in the local Axioline bus. Objects on the devices can be read or written. For object details see the module documentation. More...

#include <IAcyclicCommunicationService.hpp>

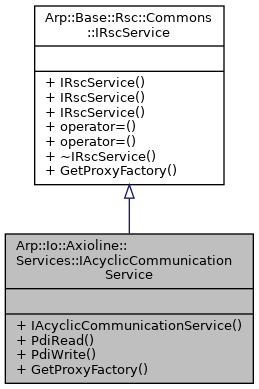

Inheritance diagram for Arp::Io::Axioline::Services::IAcyclicCommunicationService:

Public Types
using	Ptr = std::shared_ptr< IAcyclicCommunicationService >

Public Types inherited from Arp::Base::Rsc::Commons::IRscService
using	Ptr = std::shared_ptr< IRscService >
	The shared_ptr type of IRscService.

Public Member Functions
	IAcyclicCommunicationService (void)=default
	Constructs an IAcyclicCommunicationService instance.

virtual PdiResult	PdiRead (const PdiParam &pdiParam, std::vector< byte > &data)=0
	This operation reads a PDI object from an Axioline module (blocking mode). More...

virtual PdiResult	PdiWrite (const PdiParam &pdiParam, const std::vector< byte > &data)=0
	This operation writes a PDI object on an Axioline module (blocking mode). More...

Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
	IRscService (void)=default
	The default constructor.

	IRscService (const IRscService &arg)=delete
	The deleted copy constructor. More...

	IRscService (IRscService &&arg) noexcept=default
	The default move constructor. More...

IRscService &	operator= (const IRscService &arg)=delete
	The deleted assignment operator. More...

IRscService &	operator= (IRscService &&arg) noexcept=default
	The default move-assignment operator. More...

virtual	~IRscService (void)=default
	Destructs this instance and frees all resources.

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)

Static Public Member Functions inherited from Arp::Base::Rsc::Commons::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of this service. More...

Detailed Description

This service provides acyclic communication with devices in the local Axioline bus. Objects on the devices can be read or written. For object details see the module documentation.

The execution of PDI services can take some time (seriel communication). For more information to the Axioline bus see "UM EN AXL F SYS INST" and "UM DE AXL F SYS DIAG".

This service is defined in library Arp.Io.Axioline.

Realtime Usage: This API call does not have to be deterministic in runtime behaviour, so an asynchronous execution should be considered.

Member Function Documentation

◆ PdiRead()

virtual PdiResult Arp::Io::Axioline::Services::IAcyclicCommunicationService::PdiRead	(	const PdiParam &	pdiParam,
		std::vector< byte > &	data
	)

pure virtual

This operation reads a PDI object from an Axioline module (blocking mode).

Parameters

pdiParam	Structure with all parameters to address an object on a module to read from. Arp.Io.Axioline.Services.PdiParam
data	Data that are read from the module.

Returns: Structure with error information. Arp.Io.Axioline.Services.PdiResult

◆ PdiWrite()

virtual PdiResult Arp::Io::Axioline::Services::IAcyclicCommunicationService::PdiWrite	(	const PdiParam &	pdiParam,
		const std::vector< byte > &	data
	)

pure virtual

This operation writes a PDI object on an Axioline module (blocking mode).

Parameters

pdiParam	Structure with all parameters to address an object on a module to write on. Arp.Io.Axioline.Services.PdiParam
data	Data that shall be written on the module.

Returns: Structure with error information. Arp.Io.Axioline.Services.PdiResult

The documentation for this class was generated from the following file:

Arp/Io/Axioline/Services/IAcyclicCommunicationService.hpp
