Contains error information of an executed AXIO master service. More...

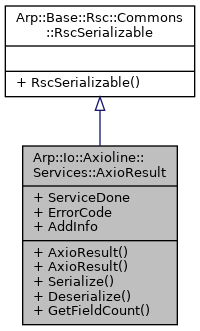

Inheritance diagram for Arp::Io::Axioline::Services::AxioResult:

Public Member Functions
	AxioResult (void)
	Constructs an AxioResult instance.

	AxioResult (boolean serviceDone, uint16 errorCode, uint16 addInfo)
	Constructs an AxioResult instance.

void	Serialize (RscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable
	RscSerializable (void)=default
	The default constructor.

Static Public Member Functions
static size_t	GetFieldCount (void)
	Returns the count of fields More...

Public Attributes
boolean	ServiceDone = false
	Flag is set when service is done. Is only needed in non-blocking methods.

uint16	ErrorCode = 0
	Error code: If 0 the service was executed successfully, other values show an error. See axioline documentation.

uint16	AddInfo = 0
	Additional information: If the service returns with error this field contains additional information.

Detailed Description

Contains error information of an executed AXIO master service.

Member Function Documentation

void Arp::Io::Axioline::Services::AxioResult::Deserialize ( RscReader & reader )

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

size_t Arp::Io::Axioline::Services::AxioResult::GetFieldCount ( void )

static

Returns the count of fields

The field count is used for serialization via Rsc

void Arp::Io::Axioline::Services::AxioResult::Serialize ( RscWriter & writer ) const

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

The documentation for this class was generated from the following files:
