This struct contains all settings of the netload limiter. It is used to set and get the current settings. More...

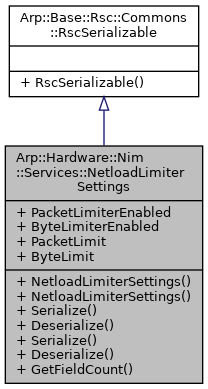

Inheritance diagram for Arp::Hardware::Nim::Services::NetloadLimiterSettings:

Public Member Functions
	NetloadLimiterSettings (void)
	Constructs an NetloadLimiterSettings instance.

	NetloadLimiterSettings (boolean packetLimiterEnabled, boolean byteLimiterEnabled, uint16 packetLimit, uint32 byteLimit)
	Constructs an NetloadLimiterSettings instance.

void	Serialize (RscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

void	Serialize (JRscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter. More...

void	Deserialize (JRscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader. More...

Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable
	RscSerializable (void)=default
	The default constructor.

Static Public Member Functions
static size_t	GetFieldCount (void)
	Returns the count of fields More...

Public Attributes
boolean	PacketLimiterEnabled = false
	Flag to enable/disable packet limiter.

boolean	ByteLimiterEnabled = false
	Flag to enable/disable byte limiter.

uint16	PacketLimit = 0
	Count of allowed packets per millisecond. This value is used if PacketLimiterEnabled is set to true. 0 means no network communication allowed.

uint32	ByteLimit = 0
	Count of allowed bytes per millisecond. This value is used if ByteLimiterEnabled is set to true. 0 means no network communication allowed.

Detailed Description

This struct contains all settings of the netload limiter. It is used to set and get the current settings.

Member Function Documentation

void Arp::Hardware::Nim::Services::NetloadLimiterSettings::Deserialize ( JRscReader & reader )

Deserializes the datatype. All fields of the datatype have to be deserialized in use of JRscReader.

Parameters

reader Reference to RscReader.

void Arp::Hardware::Nim::Services::NetloadLimiterSettings::Deserialize ( RscReader & reader )

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

size_t Arp::Hardware::Nim::Services::NetloadLimiterSettings::GetFieldCount ( void )

static

Returns the count of fields

The field count is used for serialization via Rsc

void Arp::Hardware::Nim::Services::NetloadLimiterSettings::Serialize ( JRscWriter & writer ) const

Serializes the datatype. All fields of the datatype have to be serialized in use of JRscWriter.

Parameters

writer Reference to RscWriter

void Arp::Hardware::Nim::Services::NetloadLimiterSettings::Serialize ( RscWriter & writer ) const

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

The documentation for this class was generated from the following files:
