Arp::Base::Rsc::Commons::RscVariantBase Class Reference

This class is a base class of template class RscVariant. More...

#include <RscVariantBase.hpp>

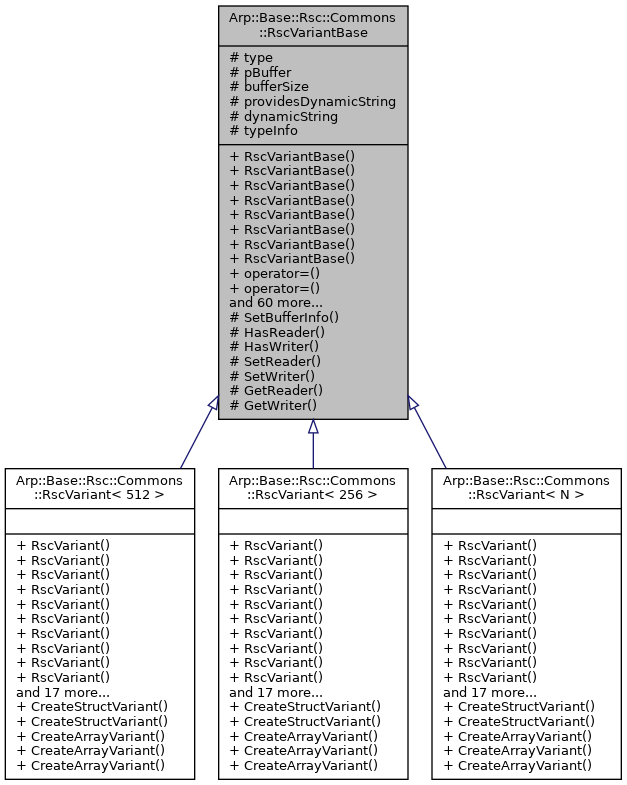

Inheritance diagram for Arp::Base::Rsc::Commons::RscVariantBase:

Public Types
using	ReadFieldFunction = std::function< void(RscType fieldType, RscVariantBase &value)>
	The read field delegate type.
using	WriteFieldFunction = std::function< void(RscType fieldType, const RscVariantBase &value)>
	The write field delegate type.
using	ReadElementFunction = std::function< void(RscType elementType, RscVariantBase &value)>
	The read element delegate type.
using	WriteElementFunction = std::function< void(RscType elementType, const RscVariantBase &value)>
	The write element delegate type.

Public Member Functions
	RscVariantBase (RscType type=RscType::None)
	The default constructor creates an empty instance of RscVariantBase. More...
	RscVariantBase (RscType type, byte *pBuffer)
	Creates a typed instance of RscVariant which refers to an external buffer. More...
	RscVariantBase (RscType type, char *pBuffer, size_t bufferSize)
	Creates a typed instance of RscVariant which refers to an external buffer. More...
	RscVariantBase (const RscStringBase &data)
	Creates a typed instance of RscVariant which refers to an external buffer. More...
	RscVariantBase (const RscArrayInfo &arrayInfo)
	Creates a typed instance of RscVariant which represents an array. More...
	RscVariantBase (const RscStructInfo &structInfo)
	Creates a typed instance of RscVariant which represents a struct. More...
	RscVariantBase (const RscVariantBase &arg)
	The copy constructor. More...
	RscVariantBase (RscVariantBase &&arg) noexcept
	The move constructor. More...
RscVariantBase &	operator= (const RscVariantBase &arg)
	The assign operator. More...
RscVariantBase &	operator= (RscVariantBase &&arg) noexcept
	The move-assign operator. More...
	~RscVariantBase (void)
	The default destructor.
RscVariantBase &	operator= (const String &value)
	Assign operator for type String. More...
RscVariantBase &	operator= (const char *value)
	Assign operator for type char*. More...
RscVariantBase &	operator= (const char8u *value)
	Assign operator for type char8u*. More...
template<class T >
RscVariantBase &	operator= (const T &value)
	Assign operator for values of arbitrary type. More...
template<int N>
RscVariantBase &	operator= (const RscString< N > &value)
	Assign operator for values of type RscString. More...
template<int N>
RscVariantBase &	operator= (const RscSecureString< N > &value)
	Assign operator for values of type SecureString. More...
void	SetType (RscType value)
	Forces the internal RscType to be set to another RscType. More...
RscType	GetType (void) const
	Gets the RscType of the contained element More...
RscType	GetValueType (void) const
	Gets the raw value type as RscType of the contained element. More...
bool	IsComplexType (void) const
	Determines if this instance represents a complex type, i.e. an array or a struct. More...
bool	IsArray (void) const
	Determines if this instance represents an array. More...
bool	IsStruct (void) const
	Determines if this instance represents a struct. More...
bool	IsFormattable (void) const
	Determines if this instance is convertible to String using the ToString() operation. More...
size_t	GetDataSize (void) const
	Gets the data size of the contained element. More...
size_t	GetMaxStringSize (void) const
	Gets the maximal length of strings which are provided by this instance. More...
size_t	GetBufferSize (void) const
	Gets the buffer size of this instance. More...
RscType	GetArrayElementType (void) const
	Gets the RscType of the array elements, if this instance represents an array. More...
size_t	GetArraySize (void) const
	Gets the array size, if this instance represents an array. More...
size_t	GetArrayDimensions (void) const
	Gets the count of array dimensions (1 for simple array, 2 for array of array etc.), if this instance represents an array. More...
size_t	GetArrayFieldCount (void) const
	Gets the field count of the struct elements, if this instance represents an array of structs. More...
size_t	GetFieldCount (void) const
	Gets the field count, if this instance represents a struct. More...
byte *	GetDataAddress (void)
	Gets a writable raw pointer to the internal data buffer. More...
const byte *	GetDataAddress (void) const
const char *	GetChars (void) const
	Gets a readable pointer to internal string buffer. More...
void	Assign (const char *input, RscType rscType=RscType::String)
	Assigns an UTF8 string to this instance. More...
void	Assign (const char *input, size_t length, RscType rscType=RscType::String)
	Assigns an UTF8 string to this instance. More...
void	Assign (const char16 *input, size_t length)
	Assigns an UTF16 string to this instance. More...
void	Assign (const String &value)
	Assigns the given value of type String. More...
void	CopyTo (String &value) const
	Copies the content of this variant to a string. More...
String	ToString (void) const
	Converts this instance to String if the variant type has a reasonable string representation. More...
void	Clear (bool clearBuffer=false)
	Clears the type and all other infos of this instance. More...
bool	Equals (const RscVariantBase &arg) const
	Checks if this instance is equal to arg . More...
void	Read (RscReader &reader, bool omitTag)
	Reads this instance from RSC. More...
void	Write (RscWriter &writer, bool omitTag) const
	Writes this instance to RSC. More...
bool	HasArrayInfo (void) const
	Determines if the array info of this instance was set yet. More...
void	SetArrayInfo (const RscArrayInfo &arrayInfo)
	Set the array info of this instance. More...
void	SetArrayInfo (size_t size, RscType elementType=RscType::None, size_t dimensions=1, size_t fieldCount=0)
	Sets the array info of this instance. More...
RscArrayInfo &	GetArrayInfo (void)
	Gets the array info of this instance. More...
const RscArrayInfo &	GetArrayInfo (void) const
bool	HasStructInfo (void) const
	Determines if the struct info of this instance was set yet. More...
void	SetStructInfo (size_t fieldCount)
	Sets the struct info of this instance. More...
RscStructInfo &	GetStructInfo (void)
	Gets the struct info of this instance. More...
const RscStructInfo &	GetStructInfo (void) const
bool	HasReadElementFunction (void) const
	Determines if this instance provides an element read function. More...
ReadElementFunction	GetReadElementFunction (void) const
	Gets the element read function if available. More...
void	SetReadElementFunction (ReadElementFunction &function)
	Sets the element read function. More...
bool	HasWriteElementFunction (void) const
	Determines if this instance provides an element write function. More...
WriteElementFunction	GetWriteElementFunction (void) const
	Gets the element write function if available. More...
void	SetWriteElementFunction (WriteElementFunction &function) const
	Sets the element write function. More...
void	ResetComplexTypeInfo (void)
	Clears reader, writer and read/write element functions.
template<int N>
void	Assign (char value[N])
	Assigns the given value of type T . More...
template<int N>
void	Assign (const char value[N])
template<int N>
void	Assign (const RscString< N > &value)
	Assigns the given value of type RscString. More...
template<int N>
void	Assign (const RscSecureString< N > &value)
	Assigns the given value of type SecureString. More...
template<class T >
void	Assign (const T &value)
	Assigns the given value of type T . More...
template<class T >
void	CopyTo (T &value) const
	Copies the value of this instance to the out parameter value . More...
template<class T >
T	GetValue (void) const
	Converts this value to the given type T . More...
template<class T >
T *	GetValueAddress (void)
	Gets the address of the contained value as type T *. More...
template<class T >
const T *	GetValueAddress (void) const
	Gets the address of the contained value as type const T *. More...

Protected Member Functions
void	SetBufferInfo (byte *pDataBuffer, size_t dataBufferSize, bool isDynamicString)
	Sets the buffer properties which are provided by super class RscVariant. More...
bool	HasReader (void) const
	Determines if this instance has a reader for deserialization. More...
bool	HasWriter (void) const
	Determines if this instance has a write for serialization. More...
void	SetReader (RscReader &reader)
	Sets the RSC reader, if this instance represents a complex type (array or struct). More...
void	SetWriter (RscWriter &writer) const
	Sets the RSC writer, if this instance represents a complex type (array or struct). More...
RscReader *	GetReader (void) const
	Gets a reader for deserialization. More...
RscWriter *	GetWriter (void) const
	Gets a writer for serialization. More...

Protected Attributes
RscType	type = RscType::None
	The RSC type of this variant.
byte *	pBuffer = nullptr
	The buffer of this variant (usually applied by RscVariant<T>)
size_t	bufferSize = 0
	The size of the applied buffer.
bool	providesDynamicString = false
	Determines if this variant supports dynamic strings (see String)
String	dynamicString
	The dynamic string storage.
ComplexTypeInfo	typeInfo
	The type info of this variant.

Friends
class	Arp::Base::Rsc::Commons::Internal::RscVariantAccessor

Detailed Description

This class is a base class of template class RscVariant.

This implementation avoids extensive inlining of RscVariant implementation, due to the fact, that all template code has to be inlined.

This class is not intended for direct use.

Constructor & Destructor Documentation

RscVariantBase() [1/8]

Arp::Base::Rsc::Commons::RscVariantBase::RscVariantBase

(

RscType

type = RscType::None

)

The default constructor creates an empty instance of RscVariantBase.

Parameters

type	The type of this variant.

RscVariantBase() [2/8]

Arp::Base::Rsc::Commons::RscVariantBase::RscVariantBase	(	RscType	type,
		byte *	pBuffer
	)

Creates a typed instance of RscVariant which refers to an external buffer.

Parameters

type	The type of this variant.
pBuffer	The external buffer

For internal use only.

RscVariantBase() [3/8]

Arp::Base::Rsc::Commons::RscVariantBase::RscVariantBase	(	RscType	type,
		char *	pBuffer,
		size_t	bufferSize
	)

Creates a typed instance of RscVariant which refers to an external buffer.

Parameters

type	The type of this variant.
pBuffer	The external buffer.
bufferSize	The buffer size of the external buffer.

For internal use only.

RscVariantBase() [4/8]

Arp::Base::Rsc::Commons::RscVariantBase::RscVariantBase

(

const RscStringBase &

data

)

Creates a typed instance of RscVariant which refers to an external buffer.

Parameters

data	The external string buffer.

For internal use only.

RscVariantBase() [5/8]

Arp::Base::Rsc::Commons::RscVariantBase::RscVariantBase

(

const RscArrayInfo &

arrayInfo

)

Creates a typed instance of RscVariant which represents an array.

Parameters

arrayInfo

The array information.

RscVariantBase() [6/8]

Arp::Base::Rsc::Commons::RscVariantBase::RscVariantBase

(

const RscStructInfo &

structInfo

)

Creates a typed instance of RscVariant which represents a struct.

Parameters

structInfo

The struct information.

RscVariantBase() [7/8]

Arp::Base::Rsc::Commons::RscVariantBase::RscVariantBase ( const RscVariantBase &  arg )

default

The copy constructor.

Parameters

arg	The argument to copy.

RscVariantBase() [8/8]

Arp::Base::Rsc::Commons::RscVariantBase::RscVariantBase ( RscVariantBase &&  arg )

defaultnoexcept

The move constructor.

Parameters

arg	The argument to move.

Member Function Documentation

Assign() [1/8]

template<int N>

void Arp::Base::Rsc::Commons::RscVariantBase::Assign ( char  value[N] )

inline

Assigns the given value of type T .

Parameters

value

The string to assign.

Assign() [2/8]

void Arp::Base::Rsc::Commons::RscVariantBase::Assign	(	const char *	str,
		RscType	rscType = RscType::String
	)

Assigns an UTF8 string to this instance.

Parameters

str	The input UTF8 string to assign.
rscType	The RscType marshalling type. Actually only RscType::String is supported.

Assign() [3/8]

void Arp::Base::Rsc::Commons::RscVariantBase::Assign	(	const char *	str,
		size_t	length,
		RscType	rscType = RscType::String
	)

Assigns an UTF8 string to this instance.

Parameters

str	The input UTF8 string to assign.
length	The string length of the input string.
rscType	The RscType marshalling type. Actually only RscType::String is supported.

Assign() [4/8]

void Arp::Base::Rsc::Commons::RscVariantBase::Assign	(	const char16 *	input,
		size_t	length
	)

Assigns an UTF16 string to this instance.

Parameters

input	The input UTF16 string to assign.
length	The string length of the input string (number of char16 characters).

The input string is converted to an UTF8 string for marshalling.

Assign() [5/8]

template<int N>

void Arp::Base::Rsc::Commons::RscVariantBase::Assign ( const RscSecureString< N > &  value )

inline

Assigns the given value of type SecureString.

Parameters

value

The string to assign.

Assign() [6/8]

template<int N>

void Arp::Base::Rsc::Commons::RscVariantBase::Assign ( const RscString< N > &  value )

inline

Assigns the given value of type RscString.

Parameters

value

The string to assign.

Assign() [7/8]

void Arp::Base::Rsc::Commons::RscVariantBase::Assign

(

const String &

value

)

Assigns the given value of type String.

Parameters

value

The string to assign.

Assign() [8/8]

template<class T >

void Arp::Base::Rsc::Commons::RscVariantBase::Assign ( const T &  value )

inline

Assigns the given value of type T .

Parameters

value

The value to assign.

Template Parameters

T	The type to convert this instance to.

Clear()

void Arp::Base::Rsc::Commons::RscVariantBase::Clear

(

bool

clearBuffer = false

)

Clears the type and all other infos of this instance.

Parameters

clearBuffer

true if the buffer should be zeroed also, otherwise false.

CopyTo() [1/2]

void Arp::Base::Rsc::Commons::RscVariantBase::CopyTo

(

String &

value

)

const

Copies the content of this variant to a string.

Parameters

value

The resulting string to copy this content to.

This operation specializes the generic operation CopyTo<T> for the String type.

CopyTo() [2/2]

template<class T >

void Arp::Base::Rsc::Commons::RscVariantBase::CopyTo ( T &  value ) const

inline

Copies the value of this instance to the out parameter value .

Parameters

value

The resulting value.

Exceptions

InvalidCastException

If this instance does not match the supplied parameter type T .

Equals()

bool Arp::Base::Rsc::Commons::RscVariantBase::Equals

(

const RscVariantBase &

arg

)

const

Checks if this instance is equal to arg .

Parameters

arg	The argument to check on equality.

Returns

true if this instance is equal to arg , otherwise false.

GetArrayDimensions()

size_t Arp::Base::Rsc::Commons::RscVariantBase::GetArrayDimensions

(

void

)

const

Gets the count of array dimensions (1 for simple array, 2 for array of array etc.), if this instance represents an array.

Returns

The count of array dimensions

Exceptions

InvalidOperationException

If this instance does not represent an array.

GetArrayElementType()

RscType Arp::Base::Rsc::Commons::RscVariantBase::GetArrayElementType

(

void

)

const

Gets the RscType of the array elements, if this instance represents an array.

Returns

The array element type as RscType.

Exceptions

InvalidOperationException

If this instance does not represent an array.

GetArrayFieldCount()

size_t Arp::Base::Rsc::Commons::RscVariantBase::GetArrayFieldCount

(

void

)

const

Gets the field count of the struct elements, if this instance represents an array of structs.

Returns

The field count of the struct elements.

Exceptions

InvalidOperationException

If this instance does not represent an array.

GetArrayInfo()

const RscArrayInfo & Arp::Base::Rsc::Commons::RscVariantBase::GetArrayInfo

(

void

)

Gets the array info of this instance.

Returns

The array info.

Exceptions

InvalidOperationException

If this instance does not represent an array.

GetArraySize()

size_t Arp::Base::Rsc::Commons::RscVariantBase::GetArraySize

(

void

)

const

Gets the array size, if this instance represents an array.

Returns

The array size.

Exceptions

InvalidOperationException

If this instance does not represent an array.

GetBufferSize()

size_t Arp::Base::Rsc::Commons::RscVariantBase::GetBufferSize

(

void

)

const

Gets the buffer size of this instance.

Returns

The buffer size of this instance.

GetChars()

const char * Arp::Base::Rsc::Commons::RscVariantBase::GetChars

(

void

)

const

Gets a readable pointer to internal string buffer.

Returns

A pointer to the string buffer.

Exceptions

InvalidCastException

If this instance does not represent a string.

GetDataAddress()

const byte * Arp::Base::Rsc::Commons::RscVariantBase::GetDataAddress

(

void

)

Gets a writable raw pointer to the internal data buffer.

Gets a readable raw pointer to the internal data buffer.

Returns

The pointer to the internal data buffer

To obtain data from this instance prefer the use of CopyTo or GetValue operations and to write instance data prefer Assign operations or assign operators, because this operation is not type safe. For internal use only.

GetDataSize()

size_t Arp::Base::Rsc::Commons::RscVariantBase::GetDataSize

(

void

)

const

Gets the data size of the contained element.

Returns

The data size of contained element.

GetFieldCount()

size_t Arp::Base::Rsc::Commons::RscVariantBase::GetFieldCount

(

void

)

const

Gets the field count, if this instance represents a struct.

Returns

The field count of the struct type.

Exceptions

InvalidOperationException

If this instance does not represent a struct.

GetMaxStringSize()

size_t Arp::Base::Rsc::Commons::RscVariantBase::GetMaxStringSize

(

void

)

const

Gets the maximal length of strings which are provided by this instance.

Returns

The maximal string length excluding the string terminator.

GetReadElementFunction()

RscVariantBase::ReadElementFunction Arp::Base::Rsc::Commons::RscVariantBase::GetReadElementFunction

(

void

)

const

Gets the element read function if available.

Returns

The function to read elements.

Exceptions

InvalidOperationException

If this instance does not provide an element read function.

GetReader()

RscReader * Arp::Base::Rsc::Commons::RscVariantBase::GetReader ( void  ) const

protected

Gets a reader for deserialization.

Returns

The reader pointer if a reader is available, otherwise nullptr.

For internal use only.

GetStructInfo()

const RscStructInfo & Arp::Base::Rsc::Commons::RscVariantBase::GetStructInfo

(

void

)

Gets the struct info of this instance.

Returns

The struct info.

Exceptions

InvalidOperationException

If this instance does not represent a struct.

GetType()

RscType Arp::Base::Rsc::Commons::RscVariantBase::GetType

(

void

)

const

Gets the RscType of the contained element

Returns

RscType of contained element

GetValue()

template<class T >

T Arp::Base::Rsc::Commons::RscVariantBase::GetValue ( void  ) const

inline

Converts this value to the given type T .

Returns

The value of this instance of type T.

Returns

Template Parameters

T	The type to convert this instance to.

GetValueAddress() [1/2]

template<class T >

T * Arp::Base::Rsc::Commons::RscVariantBase::GetValueAddress ( void  )

inline

Gets the address of the contained value as type T *.

Returns

The address of the value of this instance as type T*.

Returns

Template Parameters

T	The type to convert the value address to.

GetValueAddress() [2/2]

template<class T >

const T * Arp::Base::Rsc::Commons::RscVariantBase::GetValueAddress ( void  ) const

inline

Gets the address of the contained value as type const T *.

Returns

The address of the value of this instance as type const T*.

Returns

Template Parameters

T	The type to convert the value address to.

GetValueType()

RscType Arp::Base::Rsc::Commons::RscVariantBase::GetValueType

(

void

)

const

Gets the raw value type as RscType of the contained element.

Returns

The raw value type as RscType of the contained element.

Some types like <see cref="RscType::IecTime /> are mapped to its raw value counterpart e.g. <see cref="RscType::Int32 />.

GetWriteElementFunction()

RscVariantBase::WriteElementFunction Arp::Base::Rsc::Commons::RscVariantBase::GetWriteElementFunction

(

void

)

const

Gets the element write function if available.

Returns

The function to write elements.

Exceptions

InvalidOperationException

If this instance does not provide an element write function.

GetWriter()

RscWriter * Arp::Base::Rsc::Commons::RscVariantBase::GetWriter ( void  ) const

protected

Gets a writer for serialization.

Returns

The writer pointer if a writer is available, otherwise nullptr.

For internal use only.

HasArrayInfo()

bool Arp::Base::Rsc::Commons::RscVariantBase::HasArrayInfo

(

void

)

const

Determines if the array info of this instance was set yet.

Returns

true if the array info was set yet, otherwise false.

HasReadElementFunction()

bool Arp::Base::Rsc::Commons::RscVariantBase::HasReadElementFunction

(

void

)

const

Determines if this instance provides an element read function.

Returns

true if an element read function is available, otherwise false.

HasReader()

bool Arp::Base::Rsc::Commons::RscVariantBase::HasReader ( void  ) const

protected

Determines if this instance has a reader for deserialization.

Returns

true if a reader is available, otherwise false.

For internal use only.

HasStructInfo()

bool Arp::Base::Rsc::Commons::RscVariantBase::HasStructInfo

(

void

)

const

Determines if the struct info of this instance was set yet.

Returns

true if the struct info was set yet, otherwise false.

HasWriteElementFunction()

bool Arp::Base::Rsc::Commons::RscVariantBase::HasWriteElementFunction

(

void

)

const

Determines if this instance provides an element write function.

Returns

true if an element write function is available, otherwise false.

HasWriter()

bool Arp::Base::Rsc::Commons::RscVariantBase::HasWriter ( void  ) const

protected

Determines if this instance has a write for serialization.

Returns

true if a writer is available, otherwise false.

For internal use only.

IsArray()

bool Arp::Base::Rsc::Commons::RscVariantBase::IsArray

(

void

)

const

Determines if this instance represents an array.

Returns

true if this instance represents an array, otherwise false.

IsComplexType()

bool Arp::Base::Rsc::Commons::RscVariantBase::IsComplexType

(

void

)

const

Determines if this instance represents a complex type, i.e. an array or a struct.

Returns

true if this instance represents an array or a struct, otherwise false.

IsFormattable()

bool Arp::Base::Rsc::Commons::RscVariantBase::IsFormattable

(

void

)

const

Determines if this instance is convertible to String using the ToString() operation.

Returns

true if this instance has a string representation, otherwise false.

IsStruct()

bool Arp::Base::Rsc::Commons::RscVariantBase::IsStruct

(

void

)

const

Determines if this instance represents a struct.

Returns

true if this instance represents a struct, otherwise false.

operator=() [1/8]

RscVariantBase & Arp::Base::Rsc::Commons::RscVariantBase::operator=

(

const char *

value

)

Assign operator for type char*.

Parameters

value

The string to assign.

Returns

A reference to this instance.

operator=() [2/8]

RscVariantBase & Arp::Base::Rsc::Commons::RscVariantBase::operator=

(

const char8u *

value

)

Assign operator for type char8u*.

Parameters

value

The string to assign.

Returns

A reference to this instance.

operator=() [3/8]

template<int N>

RscVariantBase & Arp::Base::Rsc::Commons::RscVariantBase::operator= ( const RscSecureString< N > &  value )

inline

Assign operator for values of type SecureString.

Parameters

value

The string to assign.

Template Parameters

N	The maximal string length.

Returns

This instance as reference.

operator=() [4/8]

template<int N>

RscVariantBase & Arp::Base::Rsc::Commons::RscVariantBase::operator= ( const RscString< N > &  value )

inline

Assign operator for values of type RscString.

Parameters

value

The string to assign.

Template Parameters

N	The maximal string length.

Returns

This instance as reference.

operator=() [5/8]

RscVariantBase & Arp::Base::Rsc::Commons::RscVariantBase::operator= ( const RscVariantBase &  arg )

default

The assign operator.

Parameters

arg	The argument to assign.

Returns

This instance.

operator=() [6/8]

RscVariantBase & Arp::Base::Rsc::Commons::RscVariantBase::operator=

(

const String &

value

)

Assign operator for type String.

Parameters

value

The string to assign.

Returns

A reference to this instance.

operator=() [7/8]

template<class T >

RscVariantBase & Arp::Base::Rsc::Commons::RscVariantBase::operator= ( const T &  value )

inline

Assign operator for values of arbitrary type.

Parameters

value

The value to assign.

Template Parameters

T	The type of the value.

Returns

This instance as reference.

operator=() [8/8]

RscVariantBase & Arp::Base::Rsc::Commons::RscVariantBase::operator= ( RscVariantBase &&  arg )

defaultnoexcept

The move-assign operator.

Parameters

arg	The argument to move.

Returns

This instance.

Read()

void Arp::Base::Rsc::Commons::RscVariantBase::Read	(	RscReader &	reader,
		bool	omitTag
	)

Reads this instance from RSC.

Parameters

reader	The RSC reader to read from.
omitTag	true if the data tag should be omitted during read, otherwise false.

For internal use only.

SetArrayInfo() [1/2]

void Arp::Base::Rsc::Commons::RscVariantBase::SetArrayInfo

(

const RscArrayInfo &

arrayInfo

)

Set the array info of this instance.

Parameters

arrayInfo

The array info to assign.

This operation set the type of this instance implicitly to RscType::Array and the array infos accordingly.

SetArrayInfo() [2/2]

void Arp::Base::Rsc::Commons::RscVariantBase::SetArrayInfo	(	size_t	size,
		RscType	elementType = RscType::None,
		size_t	dimensions = 1,
		size_t	fieldCount = 0
	)

Sets the array info of this instance.

Parameters

size	The size of the array.
elementType	The element type of the array.
dimensions	The array dimensions.
fieldCount	The field count of the element struct type.

This operation set the type of this instance implicitly to RscType::Array and the array infos accordingly.

SetBufferInfo()

void Arp::Base::Rsc::Commons::RscVariantBase::SetBufferInfo ( byte *  pDataBuffer, size_t  dataBufferSize, bool  isDynamicString  )

protected

Sets the buffer properties which are provided by super class RscVariant.

Parameters

pDataBuffer	The data buffer.
dataBufferSize	The data buffer size.
isDynamicString	Determines if the buffer belongs to a dynamic string of type String.

For internal use only.

SetReadElementFunction()

void Arp::Base::Rsc::Commons::RscVariantBase::SetReadElementFunction

(

ReadElementFunction &

function

)

Sets the element read function.

Parameters

function

The function to read elements.

Exceptions

InvalidOperationException

If this instance does not provide an element read function.

SetReader()

void Arp::Base::Rsc::Commons::RscVariantBase::SetReader ( RscReader &  reader )

protected

Sets the RSC reader, if this instance represents a complex type (array or struct).

Parameters

reader

The reader to use for deserialization.

For internal use only.

SetStructInfo()

void Arp::Base::Rsc::Commons::RscVariantBase::SetStructInfo

(

size_t

fieldCount

)

Sets the struct info of this instance.

Parameters

fieldCount

The field count of the struct.

SetType()

void Arp::Base::Rsc::Commons::RscVariantBase::SetType

(

RscType

value

)

Forces the internal RscType to be set to another RscType.

This method does no conversion or validation. Prefer using assignment operators, which sets the RscType implicitly.

Parameters

value

The new value to set.

SetWriteElementFunction()

void Arp::Base::Rsc::Commons::RscVariantBase::SetWriteElementFunction

(

WriteElementFunction &

function

)

const

Sets the element write function.

Parameters

function

The function to write elements.

SetWriter()

void Arp::Base::Rsc::Commons::RscVariantBase::SetWriter ( RscWriter &  writer ) const

protected

Sets the RSC writer, if this instance represents a complex type (array or struct).

Parameters

writer

The writer to use for serialization.

For internal use only.

ToString()

String Arp::Base::Rsc::Commons::RscVariantBase::ToString

(

void

)

const

Converts this instance to String if the variant type has a reasonable string representation.

Returns

The string representation of this instance.

Write()

void Arp::Base::Rsc::Commons::RscVariantBase::Write	(	RscWriter &	writer,
		bool	omitTag
	)		const

Writes this instance to RSC.

Parameters

writer	The RSC writer to write to.
omitTag	true if the data tag should be omitted during write, otherwise false.

For internal use only.

---

The documentation for this class was generated from the following files:

• Arp/Base/Rsc/Commons/RscVariantBase.hpp
• Arp/Base/Rsc/Commons/RscVariantBase.cpp
