Contains information about a component. More...

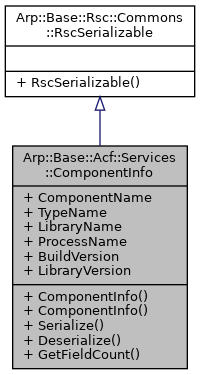

Inheritance diagram for Arp::Base::Acf::Services::ComponentInfo:

Public Member Functions
	ComponentInfo (void)
	Constructs an ComponentInfo instance.

	ComponentInfo (const RscString< 512 > &componentName, const RscString< 512 > &typeName, const RscString< 512 > &libraryName, const RscString< 128 > &processName, const RscString< 512 > &buildVersion, const RscString< 512 > &libraryVersion)
	Constructs an ComponentInfo instance.

void	Serialize (RscWriter &writer) const
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader)
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::Base::Rsc::Commons::RscSerializable
	RscSerializable (void)=default
	The default constructor.

Static Public Member Functions
static size_t	GetFieldCount (void)
	Returns the count of fields More...

Public Attributes
RscString< 512 >	ComponentName
	Instance name of the component

RscString< 512 >	TypeName
	C++ type name of the component

RscString< 512 >	LibraryName
	Name of the library the component was created from

RscString< 128 >	ProcessName
	Name of the process the component is created in

RscString< 512 >	BuildVersion
	ArpVersion (incl. name and state) of the SDK used to compile the library

RscString< 512 >	LibraryVersion
	ArpVersion (incl. name and state) provided by the author of the library

Detailed Description

Contains information about a component.

Member Function Documentation

void Arp::Base::Acf::Services::ComponentInfo::Deserialize ( RscReader & reader )

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

size_t Arp::Base::Acf::Services::ComponentInfo::GetFieldCount ( void )

static

Returns the count of fields

The field count is used for serialization via Rsc

void Arp::Base::Acf::Services::ComponentInfo::Serialize ( RscWriter & writer ) const

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

The documentation for this class was generated from the following files:
