Arp::System::Ve::ISocketService Class Reference

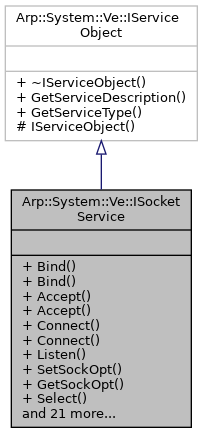

Inheritance diagram for Arp::System::Ve::ISocketService:

Classes
struct	PeerCredentials

Public Types
enum class	SocketType { None = 0 , Tcp = 1 , Udp = 2 }
enum class	SocketDomain { None = 0 , Ipv4 = 1 , Ipv6 = 2 , Local }
enum class	SocketBlockingMode { None = 0 , Blocking = 1 , NoneBlocking = 2 }
enum class	SelectMode { SelectRead = 0 , SelectWrite = 1 , SelectConnect = 3 , SelectAccept = 4 }
enum class	PollMode {   None = 0 , Read = 1 , Write = 2 , Connect = 3 ,   Accept = 4 }
enum class	ShutdownMode { Read = 0 , Write = 1 , ReadWrite = 2 }
enum class	SocketOptionName {   SocketOptionReuseAddress = 0x0004 , SocketOptionKeepAlive = 0x0008 , SocketOptionBroadcast = 0x0020 , SocketOptionLinger = 0x0080 ,   SocketOptionReceiveTimeout = 0x0200 , SocketOptionSendTimeout = 0x0800 , SocketOptionNoDelay = 1 , SocketOptionPeerCredentials = 2 ,   SocketOptionUserTimeout = 100 , SocketOptionKeepAliveIdleTime = 101 , SocketOptionKeepAliveProbeInterval = 102 , SocketOptionKeepAliveProbeCount = 103 }
	Specifies socket options to be set by the application. Copied from Eclr Socket Adaption More...
enum class	SocketError {   Success = 0 , Unspecified = -1 , Interrupted = (10000 + 4) , InvalidArgument = (10000 + 22) ,   TooManyOpenSockets = (10000 + 24) , WouldBlock = (10000 + 35) , InProgress = (10000 + 36) , AlreadyInProgress = (10000 + 37) ,   NotSocket = (10000 + 38) , DestinationAddressRequired = (10000 + 39) , MessageSize = (10000 + 40) , ProtoType = (10000 + 41) ,   ProtocolOption = (10000 + 42) , ProtocolNotSupported = (10000 + 43) , SocketNotSupported = (10000 + 44) , OperationNotSupported = (10000 + 45) ,   ProtocolFamilyNotSupported = (10000 + 46) , AddressFamilyNotSupported = (10000 + 47) , AddressAlreadyInUse = (10000 + 48) , AddressNotAvailable = (10000 + 49) ,   NetworkDown = (10000 + 50) , NetworkUnreachable = (10000 + 51) , NetworkReset = (10000 + 52) , ConnectionAborted = (10000 + 53) ,   ConnectionReset = (10000 + 54) , NoBufferSpaceAvailable = (10000 + 55) , IsConnected = (10000 + 56) , NotConnected = (10000 + 57) ,   Shutdown = (10000 + 58) , TimedOut = (10000 + 60) , ConnectionRefused = (10000 + 61) , HostDown = (10000 + 64) ,   HostUnreachable = (10000 + 65) , ProcessLimit = (10000 + 67) , SystemNotReady = (10000 + 91) , VersionNotSupported = (10000 + 92) ,   NotInitialized = (10000 + 93) , Disconnecting = (10000 + 101) , HostNotFound = (10000 + 1001) , TryAgain = (10000 + 1002) }

Public Member Functions
virtual SocketError	Bind (uint32 ip4Address, int &port)=0
virtual SocketError	Bind (const String &path)=0
virtual ISocketService *	Accept (uint32 &ip4Address, int &port, SocketError &error)=0
virtual ISocketService *	Accept (String &path, SocketError &error)=0
virtual SocketError	Connect (uint32 ip4Address, int port)=0
virtual SocketError	Connect (const String &path)=0
virtual SocketError	Listen (int backlog)=0
virtual SocketError	SetSockOpt (SocketOptionName optionName, const void *optionValue, size_t optionLength)=0
virtual SocketError	GetSockOpt (SocketOptionName optionName, void *optionValue, size_t *optionLength)=0
virtual int	Select (SelectMode mode, size_t timeout_us, SocketError &error)=0
virtual int	Poll (PollMode mode, size_t timeoutMillis, SocketError &error)=0
virtual SocketError	Close (void)=0
virtual SocketError	Shutdown (void)=0
virtual SocketError	Shutdown (ShutdownMode mode)=0
virtual int	Send (const void *pBuffer, size_t len, SocketError &error)=0
virtual int	SendTo (const void *pBuffer, size_t len, SocketError &error, uint32 ip4Address, int port)=0
virtual int	Recv (void *pBuffer, size_t len, SocketError &error)=0
virtual int	RecvFrom (void *pBuffer, size_t len, SocketError &error, uint32 &ip4Address, int &port)=0
virtual SocketError	SetOptionBlocking (bool enable)=0
virtual SocketError	SetOptionLinger (bool enable, size_t timeout)=0
virtual SocketError	GetOptionLinger (bool &enable, size_t &timeout)=0
virtual SocketError	SetOptionUserTimeout (size_t timeout_ms)=0
virtual SocketError	GetOptionUserTimeout (size_t &timeout_ms)=0
virtual SocketError	SetOptionKeepAliveIdleTime (int seconds)=0
virtual SocketError	GetOptionKeepAliveIdleTime (int &seconds)=0
virtual SocketError	SetOptionKeepAliveProbeInterval (int seconds)=0
virtual SocketError	GetOptionKeepAliveProbeInterval (int &seconds)=0
virtual SocketError	SetOptionKeepAliveProbeCount (int probeCount)=0
virtual SocketError	GetOptionKeepAliveProbeCount (int &probeCount)=0
virtual intptr	GetNativeHandle () const =0
virtual PeerCredentials	GetPeerCredentials (SocketError &error)=0
Public Member Functions inherited from Arp::System::Ve::IServiceObject
virtual const String &	GetServiceDescription (void) const =0
virtual ServiceType	GetServiceType (void) const =0

Member Enumeration Documentation

ShutdownMode

enum class Arp::System::Ve::ISocketService::ShutdownMode

strong

Enumerator
Read	Shutdown recv.
Write	Shutdown send.
ReadWrite	Shutdown recv and send.

SocketError

enum class Arp::System::Ve::ISocketService::SocketError

strong

Enumerator
Success	The Socket operation succeeded.
Unspecified	An unspecified Socket error has occurred.
Interrupted	A blocking operation was interrupted.
InvalidArgument	An invalid argument was supplied.
TooManyOpenSockets	Too many open sockets.
WouldBlock	A non-blocking socket operation could not be completed immediately.
InProgress	A blocking operation is currently executing.
AlreadyInProgress	An operation was attempted on a non-blocking socket that already had an operation in progress.
NotSocket	An operation was attempted on something that is not a socket.
DestinationAddressRequired	A required address was omitted from an operation on a socket.
MessageSize	A message sent on a datagram socket was larger than the internal message buffer or some other network limit, or the buffer used to receive a datagram into was smaller than the datagram itself.
ProtoType	A protocol was specified in the socket function call that does not support the semantics of the socket type requested.
ProtocolOption	An unknown, invalid, or unsupported option or level was specified in a getsockopt or setsockopt call.
ProtocolNotSupported	The requested protocol has not been configured into the system, or no implementation for it exists.
SocketNotSupported	The support for the specified socket type does not exist in this address family.
OperationNotSupported	The attempted operation is not supported for the type of object referenced.
ProtocolFamilyNotSupported	The protocol family has not been configured into the system or no implementation for it exists.
AddressFamilyNotSupported	An address incompatible with the requested protocol was used.
AddressAlreadyInUse	Only one usage of each socket address (protocol/network address/port) is normally permitted.
AddressNotAvailable	The requested address is not valid in its context.
NetworkDown	A socket operation encountered a dead network.
NetworkUnreachable	A socket operation was attempted to an unreachable network.
NetworkReset	The connection has been broken due to keep-alive activity detecting a failure while the operation was in progress.
ConnectionAborted	An established connection was aborted by the software in your host machine.
ConnectionReset	An existing connection was forcibly closed by the remote host.
NoBufferSpaceAvailable	An operation on a socket could not be performed because the system lacked sufficient buffer space or because a queue was full.
IsConnected	A connect request was made on an already connected socket.
NotConnected	A request to send or receive data was disallowed because the socket is not connected and (when sending on a datagram socket using a sendto call) no address was supplied.
Shutdown	A request to send or receive data was disallowed because the socket had already been shut down in that direction with a previous shutdown call.
TimedOut	A connection attempt failed because the connected party did not properly respond after a period of time, or established connection failed because connected host has failed to respond.
ConnectionRefused	No connection could be made because the target machine actively refused it.
HostDown	A socket operation failed because the destination host was down.
HostUnreachable	A socket operation was attempted to an unreachable host.
ProcessLimit	A Sockets implementation may have a limit on the number of applications that may use it simultaneously.
SystemNotReady	Startup cannot function at this time because the underlying system it uses to provide network services is currently unavailable.
VersionNotSupported	The Sockets version requested is not supported.
NotInitialized	Either the application has not called Startup, or Startup failed.
Disconnecting	Returned by Recv or RecvFrom to indicate the remote party has initiated a graceful shutdown sequence.
HostNotFound	No such host is known.
TryAgain	This is usually a temporary error during host name resolution and means that the local server did not receive a response from an authoritative server.

SocketOptionName

enum class Arp::System::Ve::ISocketService::SocketOptionName

strong

Specifies socket options to be set by the application. Copied from Eclr Socket Adaption

Enumerator
SocketOptionReuseAddress	Allows the socket to be bound to an address that is already in use, values: 0 means the reuse of addresses is disabled 1 means the reuse of addresses is enabled
SocketOptionKeepAlive	Send keep-alive signals, values: 0 means the keep alive option is disabled 1 means the keep alive option is enabled
SocketOptionBroadcast	Permit sending broadcast messages on the socket, values: 0 means broadcasting is disabled 1 means broadcasting is enabled
SocketOptionLinger	Sets the timeout for closed sockets waiting for last incoming data.
SocketOptionReceiveTimeout	Sets the receiving timeout until reporting an error. The Argument is a struct timeval
SocketOptionSendTimeout	Sets the sending timeout until reporting an error. The Argument is a struct timeval
SocketOptionNoDelay	Enables or disables the Nagle algorithm for send coalescing, values: 0 means NoDelay is disabled, that is the nagle algorithm is enabled. 1 means NoDelay is enabled, that is the nagle algorithm is disabled.
SocketOptionPeerCredentials	Fetches the peer's credentials. Only works with Linux IpcSockets.
SocketOptionUserTimeout	Sets the retransmission phase timeout in milliseconds for this socket. This will set or get the TCP_USER_TIMEOUT socket option on Linux. If not set, if the socket enters a retransmission phase, its backoff algorithm will use the "tcp_retries2" value set on the device which can generally prevent the socket from becoming idle for 13-30 minutes. This will in turn result in KeepAlive being able to start until after the retransmission phase has ended. TCP_USER_TIMEOUT enables being able to interrupt this phase, based on the timeout that is set.
SocketOptionKeepAliveIdleTime	Sets the period of time that the socket has to be idle for, before Keep Alive probes start being sent. Sets or gets the TCP_KEEPIDLE socket option.
SocketOptionKeepAliveProbeInterval	Sets the time between each Keep Alive probe. Sets or gets the TCP_KEEPINTVL socket option.
SocketOptionKeepAliveProbeCount	Sets the number of Keep Alive probes to be sent. Sets or gets the TCP_KEEPCNT socket option.

---

The documentation for this class was generated from the following file:

• Arp/System/Ve/ISocketService.hpp
