The DataLogger provides an interface to log and store variables during firmware runtime. More...

#include <IDataLoggerService2.hpp>

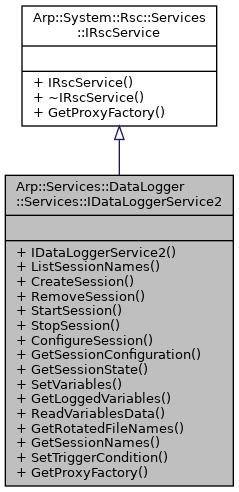

Inheritance diagram for Arp::Services::DataLogger::Services::IDataLoggerService2:

Public Types
using	Ptr = std::shared_ptr< IDataLoggerService2 >

using	VariableInfo = Arp::Plc::Gds::Services::VariableInfo

using	GetLoggedVariablesInfosDelegate = delegate< void(IRscReadEnumerator< VariableInfo > &)>

using	GetRotatedFileNamesFilenamesDelegate = delegate< void(IRscReadEnumerator< RscString< 512 > > &)>

using	GetSessionNamesResultDelegate = delegate< void(IRscReadEnumerator< RscString< 512 > > &)>

using	ListSessionNamesResultDelegate = delegate< void(IRscReadEnumerator< RscString< 512 > > &)>

using	ReadVariablesDataValuesDelegate = delegate< void(IRscReadEnumerator< RscVariant< 512 > > &)>

using	ReadVariablesDataVariableNamesDelegate = delegate< void(IRscWriteEnumerator< RscString< 512 > > &)>

using	SetTriggerConditionTriggerConditionDelegate = delegate< void(IRscWriteEnumerator< TriggerRpnItem > &)>

using	SetVariablesResultDelegate = delegate< void(IRscReadEnumerator< ErrorCode > &)>

using	SetVariablesVariableNamesDelegate = delegate< void(IRscWriteEnumerator< RscString< 512 > > &)>

Public Types inherited from Arp::System::Rsc::Services::IRscService
typedef std::shared_ptr< IRscService >	Ptr

Public Member Functions
	IDataLoggerService2 (void)=default
	Constructs an IDataLoggerService2 instance.

virtual void	ListSessionNames (ListSessionNamesResultDelegate resultDelegate)=0
	List all names of sessions inside the data logger component. More...

virtual ErrorCode	CreateSession (const RscString< 512 > &sessionName, boolean persistent=false)=0
	Tries to create a new session. More...

virtual ErrorCode	RemoveSession (const RscString< 512 > &sessionName)=0
	Tries to remove a session. More...

virtual ErrorCode	StartSession (const RscString< 512 > &sessionName)=0
	Tries to start a logging session. More...

virtual ErrorCode	StopSession (const RscString< 512 > &sessionName)=0
	Tries to stop a logging session. More...

virtual ErrorCode	ConfigureSession (const RscString< 512 > &sessionname, const std::vector< SessionProperty > &properties)=0
	(Re)configures a session More...

virtual ErrorCode	GetSessionConfiguration (const RscString< 512 > &sessionname, std::vector< SessionProperty > &properties, boolean &isPersistent)=0
	Tries to query the current configuration of a session More...

virtual ErrorCode	GetSessionState (const RscString< 512 > &sessionName, SessionState &state)=0
	Tries to query the state of a session. More...

virtual void	SetVariables (const RscString< 512 > &sessionName, SetVariablesVariableNamesDelegate variableNamesDelegate, SetVariablesResultDelegate resultDelegate)=0
	Tries to add a variable to a session. More...

virtual ErrorCode	GetLoggedVariables (const RscString< 512 > &sessionName, GetLoggedVariablesInfosDelegate infosDelegate)=0
	Queries all infos about logged variables of a session. More...

virtual ErrorCode	ReadVariablesData (const RscString< 512 > &sessionName, DateTime startTime, DateTime endTime, ReadVariablesDataVariableNamesDelegate variableNamesDelegate, ReadVariablesDataValuesDelegate valuesDelegate)=0
	Read the data from the given variable from the session with the session name. More...

virtual ErrorCode	GetRotatedFileNames (const RscString< 512 > &sessionname, GetRotatedFileNamesFilenamesDelegate filenamesDelegate)=0
	Returns names of all files that have been written by a session More...

virtual void	GetSessionNames (const RscString< 512 > &variablename, GetSessionNamesResultDelegate resultDelegate)=0
	Tries to retrieve names of sessions which log assigned variables More...

virtual ErrorCode	SetTriggerCondition (const RscString< 512 > &sessionName, const RscString< 512 > &taskName, uint16 preCycleCount, uint16 postCycleCount, SetTriggerConditionTriggerConditionDelegate triggerConditionDelegate)=0
	Sets a trigger condition More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
	IRscService (void)=default
	Constructs an IRscService instance.

virtual	~IRscService (void)=default
	Destructs this instance and frees all resouces.

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of the service More...

Detailed Description

The DataLogger provides an interface to log and store variables during firmware runtime.

This service is defined in library Arp.Services.DataLogger.

Realtime Usage: This API call does not have to be deterministic in runtime behaviour, so an asynchronous execution should be considered.

Member Function Documentation

◆ ConfigureSession()

virtual ErrorCode Arp::Services::DataLogger::Services::IDataLoggerService2::ConfigureSession	(	const RscString< 512 > &	sessionname,
		const std::vector< SessionProperty > &	properties
	)

pure virtual

(Re)configures a session

Parameters

sessionname	Name of session to be created or reconfigured
properties	Collection of attributes forming the configuration for the session

Returns

Error Code	Description
Arp.Services.DataLogger.Services.ErrorCode.None	Session successfully configured!
Arp.Services.DataLogger.Services.ErrorCode.NoSuchSession	A session with specified name does not exist!
Arp.Services.DataLogger.Services.ErrorCode.SessionRunning	The session is currently running and cannot be configured!
Arp.Services.DataLogger.Services.ErrorCode.InvalidConfig	The provided configuration is invalid! See Output.log or notifications for more informations.

◆ CreateSession()

virtual ErrorCode Arp::Services::DataLogger::Services::IDataLoggerService2::CreateSession	(	const RscString< 512 > &	sessionName,
		boolean	persistent = `false`
	)

pure virtual

Tries to create a new session.

Parameters

sessionName	Name of session to be created.
persistent	If set to `true`, the newly created session will not be removed when the RSC connection is closed.

Returns

Error Code	Description
Arp.Services.DataLogger.Services.ErrorCode.None	The session created successfully!
Arp.Services.DataLogger.Services.ErrorCode.AlreadyExists	A session with the same name already exists!
Arp.Services.DataLogger.Services.ErrorCode.OutOfMemory	Not enough memory to create a new session!

◆ GetLoggedVariables()

virtual ErrorCode Arp::Services::DataLogger::Services::IDataLoggerService2::GetLoggedVariables	(	const RscString< 512 > &	sessionName,
		GetLoggedVariablesInfosDelegate	infosDelegate
	)

pure virtual

Queries all infos about logged variables of a session.

Parameters

sessionName	Name of session to query logged variables
infos	Iterator which can be used to list logged variables after successful call

Returns

Error Code	Description
Arp.Services.DataLogger.Services.ErrorCode.None	Logged variables retrieved successfully!
Arp.Services.DataLogger.Services.ErrorCode.NoSuchSession	A session with specified name does not exist!

◆ GetRotatedFileNames()

virtual ErrorCode Arp::Services::DataLogger::Services::IDataLoggerService2::GetRotatedFileNames	(	const RscString< 512 > &	sessionname,
		GetRotatedFileNamesFilenamesDelegate	filenamesDelegate
	)

pure virtual

Returns names of all files that have been written by a session

Parameters

sessionname	Name of session from which rotated files should be listed
filenames	Iterator to list names of all rotated files on successful call.

Returns

Error Code	Description
Arp.Services.DataLogger.Services.ErrorCode.None	File names successfully retreived!
Arp.Services.DataLogger.Services.ErrorCode.NoSuchSession	A session with specified name does not exist!
Arp.Services.DataLogger.Services.ErrorCode.NoData	No sink configured yet or the sink cannot rotate files!

◆ GetSessionConfiguration()

virtual ErrorCode Arp::Services::DataLogger::Services::IDataLoggerService2::GetSessionConfiguration	(	const RscString< 512 > &	sessionname,
		std::vector< SessionProperty > &	properties,
		boolean &	isPersistent
	)

pure virtual

Tries to query the current configuration of a session

Parameters

sessionname	Name of session to be queried
properties	Collection of attributes forming the sessions configuration after successfull invocation
isPersistent	Determines if the session will remain (`true`) when the connection to the server is closed or not

Returns

Error Code	Description
Arp.Services.DataLogger.Services.ErrorCode.None	Configuration successfully retrieved!
Arp.Services.DataLogger.Services.ErrorCode.NoSuchSession	A session with specified name does not exist!

◆ GetSessionNames()

virtual void Arp::Services::DataLogger::Services::IDataLoggerService2::GetSessionNames	(	const RscString< 512 > &	variablename,
		GetSessionNamesResultDelegate	resultDelegate
	)

pure virtual

Tries to retrieve names of sessions which log assigned variables

Parameters

variablename Name of variable to which corresponding sessions should be found

Returns: Enumeration of names of sessions which log the variable in question

◆ GetSessionState()

virtual ErrorCode Arp::Services::DataLogger::Services::IDataLoggerService2::GetSessionState	(	const RscString< 512 > &	sessionName,
		SessionState &	state
	)

pure virtual

Tries to query the state of a session.

Parameters

sessionName	Name of session to query state of.
state	Container for state of session, if session exists. The value after return from call is unspecified if the session does not exists.

Returns

Error Code	Description
Arp.Services.DataLogger.Services.ErrorCode.None	State successfully retrieved!
Arp.Services.DataLogger.Services.ErrorCode.NoSuchSession	A session with specified name does not exist!

◆ ListSessionNames()

virtual void Arp::Services::DataLogger::Services::IDataLoggerService2::ListSessionNames ( ListSessionNamesResultDelegate resultDelegate )

pure virtual

List all names of sessions inside the data logger component.

Returns: Array of session names.

◆ ReadVariablesData()

virtual ErrorCode Arp::Services::DataLogger::Services::IDataLoggerService2::ReadVariablesData	(	const RscString< 512 > &	sessionName,
		DateTime	startTime,
		DateTime	endTime,
		ReadVariablesDataVariableNamesDelegate	variableNamesDelegate,
		ReadVariablesDataValuesDelegate	valuesDelegate
	)

pure virtual

Read the data from the given variable from the session with the session name.

This service function returns the plain data values from the passed variable names including timestamps and data series consistent flags, which is called a record. In a record the values are in a static order and doesn't contain any type information. Each record starts with the timestamp followed by the values from the given variable by names and the consistent flag. The record ends with a record type describing the cycle the record belongs to.

Example:

Read variables from task A: a1, a2
from task B: b1

Results in:
object[]
timestamp task A, a1, a2, b1, consistent flag, record type
timestamp task B, a1, a2, b1, consistent flag, record type

The number of records depends on the given start and end time. Each values will be returned between the start and end time.

If the start time is zero, all available records until the end time will be returned.

If the end time is zero, all available records from the start time until the last available record is reached will be returned.

If the start and end time is zero, each available record will be returned.

If the start time is greater than the end time, the resulted values are returned in descending order.

Parameters

sessionName	Name of session where variable should be read from.
startTime	Start time to be read data.
endTime	End time to be read data.
variableNames	Name of variables to be read data.
values	An enumerator which stores the read values.

Returns

Error Code	Description
Arp.Services.DataLogger.Services.ErrorCode.None	Variable values from session successfully read!
Arp.Services.DataLogger.Services.ErrorCode.NoSuchSession	A session with specified name does not exist!
Arp.Services.DataLogger.Services.ErrorCode.NoData	The session has not logged any data yet!
Arp.Services.DataLogger.Services.ErrorCode.NoSuchVariable	At least one of the specified variables is not logged by the session! In this case no data is read from the session!

◆ RemoveSession()

virtual ErrorCode Arp::Services::DataLogger::Services::IDataLoggerService2::RemoveSession ( const RscString< 512 > & sessionName )

pure virtual

Tries to remove a session.

Parameters

sessionName Name of session to be removed.

Returns

Error Code	Description
Arp.Services.DataLogger.Services.ErrorCode.None	The session successfully removed!
Arp.Services.DataLogger.Services.ErrorCode.NoSuchSession	A session with specified name does not exist!
Arp.Services.DataLogger.Services.ErrorCode.Unspecified	Could not remove session due to internal error! See Output.log for more information.

◆ SetTriggerCondition()

virtual ErrorCode Arp::Services::DataLogger::Services::IDataLoggerService2::SetTriggerCondition	(	const RscString< 512 > &	sessionName,
		const RscString< 512 > &	taskName,
		uint16	preCycleCount,
		uint16	postCycleCount,
		SetTriggerConditionTriggerConditionDelegate	triggerConditionDelegate
	)

pure virtual

Sets a trigger condition

Configuration of the trigger is done in RPN (Reverse Polish Notation). Each operand or operation is a single Arp.Services.DataLogger.Services.TriggerRpnItem. Only if the condition specified by the trigger is fullfilled values are logged and stored inside the sink.

The amount of cycles that should be stored before the condition was fullfilled can be configured using preCycleCount whereas the amount of cycles that should be recorded afterwards can be configured using postCycleCount. If postCycleCount is set to 0 then the recording continues until IDataLoggerService::StopSession is called or the PLC project is stopped.

Parameters

sessionName	Name of session to set trigger condition
taskName	Name of task where trigger condition is evaluated
preCycleCount	Amount of datasets recorded before the condition was triggered
postCycleCount	Amount of dataset recorded ater the condition is triggered (0 means endless)
triggerCondition	List of trigger items. All items are evaluated in order of their position inside the list.

Returns

Error Code	Description
Arp.Services.DataLogger.Services.ErrorCode.None	Trigger condition successfully configured!
Arp.Services.DataLogger.Services.ErrorCode.NoSuchSession	A session with specified name does not exist!
Arp.Services.DataLogger.Services.ErrorCode.SessionRunning	The session is currently logging variable values! Stop session first.
Arp.Services.DataLogger.Services.ErrorCode.NoSuchVariable	A referenced variable does not exist in the GDS!

The trigger condition contains invalid data! See Notifications for more information.

◆ SetVariables()

virtual void Arp::Services::DataLogger::Services::IDataLoggerService2::SetVariables	(	const RscString< 512 > &	sessionName,
		SetVariablesVariableNamesDelegate	variableNamesDelegate,
		SetVariablesResultDelegate	resultDelegate
	)

pure virtual

Tries to add a variable to a session.

Parameters

sessionName	Name of session where variable should be added.
variableNames	Name of variable to be added to session.

Returns

A array of error codes. The list/array will only contain a single value if the session is in an invalid state, e.g. already running or if the session is not existing.

Error Code	Description
Arp.Services.DataLogger.Services.ErrorCode.InvalidConfig	Maximal amount of variables(996) for the db sink is reached or the session is in an error state or not initialized yet!
Arp.Services.DataLogger.Services.ErrorCode.SessionRunning	The session is currently logging variable values! Stop session first.
Arp.Services.DataLogger.Services.ErrorCode.NoSuchSession	A session with specified name does not exist!

In case the session is existing and can be configured, the returned array contains one entry for every assigned name in variableNames .

Error Code	Description
Arp.Services.DataLogger.Services.ErrorCode.None	Variable added to the session!
Arp.Services.DataLogger.Services.ErrorCode.NoSuchVariable	The variable does not exists in the GDS!
Arp.Services.DataLogger.Services.ErrorCode.NotSupported	The variable is of a not supported type, i.e. not of primitive or elementary type!

◆ StartSession()

virtual ErrorCode Arp::Services::DataLogger::Services::IDataLoggerService2::StartSession ( const RscString< 512 > & sessionName )

pure virtual

Tries to start a logging session.

Parameters

sessionName Name of session to be started.

Returns

Error Code	Description
Arp.Services.DataLogger.Services.ErrorCode.None	The session started successfully!
Arp.Services.DataLogger.Services.ErrorCode.NoSuchSession	A session with specified name does not exist!
Arp.Services.DataLogger.Services.ErrorCode.Unspecified	Could not start session due to internal error! See Output.log for more information.

◆ StopSession()

virtual ErrorCode Arp::Services::DataLogger::Services::IDataLoggerService2::StopSession ( const RscString< 512 > & sessionName )

pure virtual

Tries to stop a logging session.

Parameters

sessionName Name of session to be stopped.

Returns

Error Code	Description
Arp.Services.DataLogger.Services.ErrorCode.None	The session stopped successfully!
Arp.Services.DataLogger.Services.ErrorCode.NoSuchSession	A session with specified name does not exist!
Arp.Services.DataLogger.Services.ErrorCode.Unspecified	Could not stop session due to internal error! See Output.log for more information.

The documentation for this class was generated from the following file:

Arp/Services/DataLogger/Services/IDataLoggerService2.hpp

Public Types

Public Member Functions

Static Public Member Functions

Detailed Description

Member Function Documentation

◆ ConfigureSession()

◆ CreateSession()

◆ GetLoggedVariables()

◆ GetRotatedFileNames()

◆ GetSessionConfiguration()

◆ GetSessionNames()

◆ GetSessionState()

◆ ListSessionNames()

◆ ReadVariablesData()

◆ RemoveSession()

◆ SetTriggerCondition()

◆ SetVariables()

◆ StartSession()

◆ StopSession()
