Arp::Plc::Commons::Esm::IProgramProvider Class Reference

Interface to realizes an program provider. More...

#include <IProgramProvider.hpp>

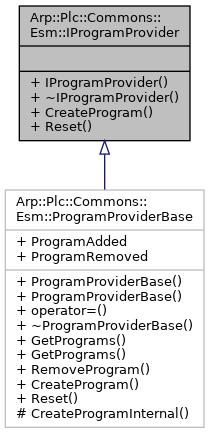

Inheritance diagram for Arp::Plc::Commons::Esm::IProgramProvider:

Public Member Functions
	IProgramProvider (void)=default
	Constructs an IProgram instance.
virtual	~IProgramProvider (void)=default
	Destructs this instance and frees all resouces.
virtual IProgram::Ptr	CreateProgram (const String &programName, const String &programType)=0
	Creates an instance of an program type. More...
virtual void	Reset (void)=0
	Resets the program provider. More...

Detailed Description

Interface to realizes an program provider.

Instances of this class can be used to create program instances of program types are provided by this program provider.

Member Function Documentation

CreateProgram()

virtual IProgram::Ptr Arp::Plc::Commons::Esm::IProgramProvider::CreateProgram ( const String &  programName, const String &  programType  )

pure virtual

Creates an instance of an program type.

Parameters

programName	The name of the to creating program instance.
programType	The program type of the to creating program instance.

Returns

The instance of the created program.

Implemented in Arp::Plc::Commons::Esm::ProgramProviderBase.

Reset()

virtual void Arp::Plc::Commons::Esm::IProgramProvider::Reset ( void  )

pure virtual

Resets the program provider.

Implemented in Arp::Plc::Commons::Esm::ProgramProviderBase.

---

The documentation for this class was generated from the following file:

• Arp/Plc/Commons/Esm/IProgramProvider.hpp
