Contains statistic values of one application relation More...

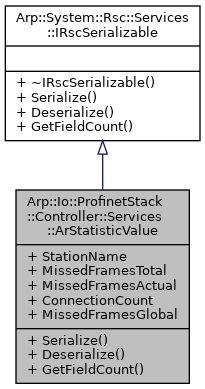

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::ArStatisticValue:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor

virtual void	Serialize (RscWriter &writer) const =0
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

virtual void	Deserialize (RscReader &reader)=0
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
RscString< 256 >	StationName
	Name of profinet device.

uint32	MissedFramesTotal = 0
	Count of missed frames of profinet device since start of controller or last Reset().

uint32	MissedFramesActual = 0
	Count of missed frames since start of connection. This value is not reset by Reset().

uint32	ConnectionCount = 0
	Count of reconnects since start of controller or last Reset().

uint32	MissedFramesGlobal = 0
	Sum of missed frames of all configured Profinet devices.

Detailed Description

Contains statistic values of one application relation

Member Function Documentation

void Arp::Io::ProfinetStack::Controller::Services::ArStatisticValue::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

void Arp::Io::ProfinetStack::Controller::Services::ArStatisticValue::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

The documentation for this class was generated from the following file:
