This structure contains all information about a received alarm. For more information read the PROFINET specification. More...

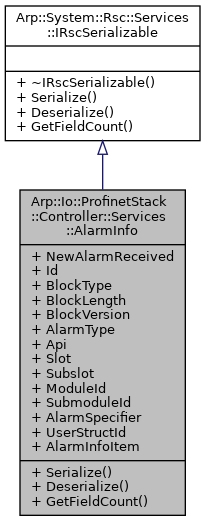

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::AlarmInfo:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor

virtual void	Serialize (RscWriter &writer) const =0
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

virtual void	Deserialize (RscReader &reader)=0
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
boolean	NewAlarmReceived = false
	Flag is set, if new alarm has been received

uint32	Id = 0
	Node id

uint16	BlockType = 0
	Type of alarm information

uint16	BlockLength = 0
	Length of alarm information in bytes

uint16	BlockVersion = 0
	Version of alarm information

uint16	AlarmType = 0
	Type of alarm More...

uint32	Api = 0
	Application Process Identifier

uint16	Slot = 0
	Slot number

uint16	Subslot = 0
	Subslot number

uint32	ModuleId = 0
	Module identification

uint32	SubmoduleId = 0
	Submodule identification

uint16	AlarmSpecifier = 0
	Alarm Specifier More...

uint16	UserStructId = 0
	User structure identifier

std::vector< byte >	AlarmInfoItem
	Alarm info item

Detailed Description

This structure contains all information about a received alarm. For more information read the PROFINET specification.

Member Function Documentation

void Arp::Io::ProfinetStack::Controller::Services::AlarmInfo::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

void Arp::Io::ProfinetStack::Controller::Services::AlarmInfo::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

uint16 Arp::Io::ProfinetStack::Controller::Services::AlarmInfo::AlarmSpecifier = 0

Alarm Specifier

ToDo

uint16 Arp::Io::ProfinetStack::Controller::Services::AlarmInfo::AlarmType = 0

Type of alarm

ToDo
