Arp::Plc::Commons::Esm::ProgramBase Class Reference

This class implements the base functionality of a program. More...

#include <ProgramBase.hpp>

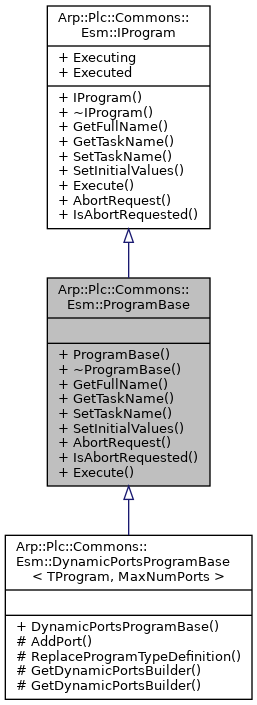

Inheritance diagram for Arp::Plc::Commons::Esm::ProgramBase:

Public Member Functions
	ProgramBase (const String &programName)
	Constructs an ProgramBase instance. More...
virtual	~ProgramBase (void)=default
	Destructs this instance and frees all resouces.
const String &	GetFullName (void) const override
	Returns the program name with full namespace. More...
const String &	GetTaskName (void) const override
	Returns the task name in which is this program will be executed. More...
void	SetTaskName (const String &taskNameArg) override
	Set the task name in which is this program will be executed. More...
void	SetInitialValues (void) override
	Set the initial values of all containing variables of this program. More...
void	AbortRequest (void) override
	Request a abort of program execution. More...
bool	IsAbortRequested (void) const override
	Determines if this program is requested to abort. More...
virtual void	Execute (void)=0
	Executes this program. More...
Public Member Functions inherited from Arp::Plc::Commons::Esm::IProgram
	IProgram (void)=default
	Constructs an IProgram instance.
virtual	~IProgram (void)=default
	Destructs this instance and frees all resouces.
virtual const String &	GetFullName (void) const =0
	Returns the program name with full namespace. More...
virtual const String &	GetTaskName () const =0
	Returns the task name in which is this program will be executed. More...
virtual void	SetTaskName (const String &value)=0
	Set the task name in which is this program will be executed. More...
virtual void	SetInitialValues (void)=0
	Sets all variables of this program to its initial values. More...
virtual void	Execute (void)=0
	Executes this program. More...
virtual void	AbortRequest (void)=0
	Requests an abort of program execution. More...
virtual bool	IsAbortRequested (void) const =0
	Determines if this program is requested to abort. More...

Additional Inherited Members
Public Types inherited from Arp::Plc::Commons::Esm::IProgram
using	Ptr = std::shared_ptr< IProgram >
	Shared pointer type of IProgram.
using	EventHandler = delegate< void(void)>
	The Event handler type is executed by the events Executing and Executed.
Public Attributes inherited from Arp::Plc::Commons::Esm::IProgram
event< void >	Executing
	The Executing event is invoked before this program is executed by the Execute operation.
event< void >	Executed
	The Executed event is executed after this program is executed by the Execute operation.

Detailed Description

This class implements the base functionality of a program.

Any (custom or not) program implementation should derive from this class.

Constructor & Destructor Documentation

ProgramBase()

Arp::Plc::Commons::Esm::ProgramBase::ProgramBase ( const String &  programName )

inline

Constructs an ProgramBase instance.

Parameters

programName

The full name of the program instance.

Member Function Documentation

AbortRequest()

void Arp::Plc::Commons::Esm::ProgramBase::AbortRequest ( void  )

inlineoverridevirtual

Request a abort of program execution.

Implements Arp::Plc::Commons::Esm::IProgram.

Execute()

virtual void Arp::Plc::Commons::Esm::ProgramBase::Execute ( void  )

pure virtual

Executes this program.

This operation should be overridden in any derived implementation.

Implements Arp::Plc::Commons::Esm::IProgram.

GetFullName()

const String & Arp::Plc::Commons::Esm::ProgramBase::GetFullName ( void  ) const

inlineoverridevirtual

Returns the program name with full namespace.

Returns

The program name with full namespace.

Implements Arp::Plc::Commons::Esm::IProgram.

GetTaskName()

const String & Arp::Plc::Commons::Esm::ProgramBase::GetTaskName ( void  ) const

inlineoverridevirtual

Returns the task name in which is this program will be executed.

Returns

The task name in which is this program will be executed.

Implements Arp::Plc::Commons::Esm::IProgram.

IsAbortRequested()

bool Arp::Plc::Commons::Esm::ProgramBase::IsAbortRequested ( void  ) const

inlineoverridevirtual

Determines if this program is requested to abort.

Implements Arp::Plc::Commons::Esm::IProgram.

SetInitialValues()

void Arp::Plc::Commons::Esm::ProgramBase::SetInitialValues ( void  )

inlineoverridevirtual

Set the initial values of all containing variables of this program.

Implements Arp::Plc::Commons::Esm::IProgram.

SetTaskName()

void Arp::Plc::Commons::Esm::ProgramBase::SetTaskName ( const String &  taskNameArg )

inlineoverridevirtual

Set the task name in which is this program will be executed.

Parameters

taskNameArg

The task name in which is this program will be executed.

Implements Arp::Plc::Commons::Esm::IProgram.

---

The documentation for this class was generated from the following file:

• Arp/Plc/Commons/Esm/ProgramBase.hpp
