Arp::System::Commons::Security::IdentityStore Class Reference

Class with represents a Identity (Certificate with Chain and private Key) and is able to initialze an OpenSSL SSL Conetxt More...

#include <IdentityStore.hpp>

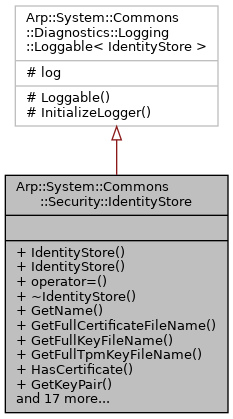

Inheritance diagram for Arp::System::Commons::Security::IdentityStore:

Public Types
enum	KeyMustExist : bool { IgnoreMissingKey = false , RequireKeyExists = true }

Public Member Functions
	IdentityStore (const String &basePath, const String &name, KeyMustExist requireKeyExists=RequireKeyExists)
	Constructs an IdentityStore instance.
	IdentityStore (const IdentityStore &arg)=delete
	Copy constructor.
IdentityStore &	operator= (const IdentityStore &arg)=delete
	Assignment operator.
	~IdentityStore (void)=default
	Destructs this instance and frees all resources.
String	GetName (void) const
	Returns the name of the IdentityStore More...
String	GetFullCertificateFileName (void) const
	summary>Returns the absolute path to the key file
String	GetFullKeyFileName (void) const
	summary>Returns the absolute path to the tpm key file
String	GetFullTpmKeyFileName (void) const
	summary>checks if a certificate is available for this IdentityStore
bool	HasCertificate (void)
const std::shared_ptr< KeyPair > &	GetKeyPair (void)
	summary>Returns the type of the key pair
KeyPairType	GetKeyType (void)
void	InitSslContext (SSL_CTX *pSslCtx) const
	Initializes a OpenSSL SSL_:CTX Structure with the private key and certificate More...
std::vector< byte >	GetPublicKey (void)
SecurityConfigurationError	SetKeyPair (const std::vector< byte > &pemData)
SecurityConfigurationError	SetCertificate (const std::vector< byte > &pemData)
std::vector< byte >	GetPemCertificate (void)
std::vector< byte >	GetDerCertificate (void)
std::vector< byte >	GetPemCertificateWithChain (void)
std::vector< byte >	GetDerCertificateWithChain (void)
	summary>get the issuer certificates in PEM format
std::vector< std::vector< byte > >	GetIssuerPemCertificates (void)
	summary>creates all needed directories inside the folder of this IdentityStore
void	CreateAllDirectories (void)
	summary>list all elements in the list referenced by ListType More...
SecurityConfigurationError	ListContent (SecurityListType type, std::vector< ItemInfo > &result)
	summary>add an element into the list referenced by ListType More...
SecurityConfigurationError	AddElement (SecurityListType type, const std::vector< byte > &pemData)
	summary>delete an elements from the list referenced by ListType, identified by identifier More...
SecurityConfigurationError	DeleteElement (SecurityListType type, const String &identifier)
	summary>Generate a new KeyPair for this IdentityStore More...
SecurityConfigurationError	GenerateKeyPair (KeyPairType type)
std::vector< byte >	GenerateCSR ()
bool	VerifyCertMatchesWithPrivateKey (void)

Detailed Description

Class with represents a Identity (Certificate with Chain and private Key) and is able to initialze an OpenSSL SSL Conetxt

internal class used by TlsSocket

Member Function Documentation

AddElement()

SecurityConfigurationError Arp::System::Commons::Security::IdentityStore::AddElement	(	SecurityListType	type,
		const std::vector< byte > &	pemData
	)

summary>delete an elements from the list referenced by ListType, identified by identifier

returns>SecurityConfigurationError::None if operation was successful. In case of an error the error code identified the error is returned

CreateAllDirectories()

void Arp::System::Commons::Security::IdentityStore::CreateAllDirectories

(

void

)

summary>list all elements in the list referenced by ListType

returns>SecurityConfigurationError::None if operation was successful. In case of an error the error code identified the error is returned

DeleteElement()

SecurityConfigurationError Arp::System::Commons::Security::IdentityStore::DeleteElement	(	SecurityListType	type,
		const String &	identifier
	)

summary>Generate a new KeyPair for this IdentityStore

returns>SecurityConfigurationError::None if operation was successful. In case of an error the error code identified the error is returned

GenerateCSR()

std::vector< byte > Arp::System::Commons::Security::IdentityStore::GenerateCSR

(

)

summary>verify if the certificates matches with the Key pair

returns>true if the certificate matches the private key, false otherwise

GenerateKeyPair()

SecurityConfigurationError Arp::System::Commons::Security::IdentityStore::GenerateKeyPair

(

KeyPairType

type

)

summary>Generate a Certiciate Signing Request (CSR) for the Key Pair of this IdentityStore

returns>byte vector with generated CSR in PEM format

GetDerCertificate()

std::vector< byte > Arp::System::Commons::Security::IdentityStore::GetDerCertificate

(

void

)

summary>get certificate as byte array in PEM format with issuer certificates appended

returns>byte vector with PEM encoded certificate with all certificates from its chain appended

GetName()

String Arp::System::Commons::Security::IdentityStore::GetName ( void  ) const

inline

Returns the name of the IdentityStore

summary>Returns the absolute path to the certificate file

GetPemCertificate()

std::vector< byte > Arp::System::Commons::Security::IdentityStore::GetPemCertificate

(

void

)

summary>get certificate as byte array in DER format

returns>byte vector with DER encoded certificate

GetPemCertificateWithChain()

std::vector< byte > Arp::System::Commons::Security::IdentityStore::GetPemCertificateWithChain

(

void

)

summary>get certificate as byte array in DER format with issuer certificates appended

returns>byte vector with DER encoded certificate with all certificates from its chain appended

GetPublicKey()

std::vector< byte > Arp::System::Commons::Security::IdentityStore::GetPublicKey

(

void

)

summary>Sets the key pair from pem data out if memory

param pemData="pemData">std::vector<byte> with pem encoded key pair

returns>SecurityConfigurationError::None if operation was successful. In case of an error the error code identified the error is returned

InitSslContext()

void Arp::System::Commons::Security::IdentityStore::InitSslContext

(

SSL_CTX *

pSslCtx

)

const

Initializes a OpenSSL SSL_:CTX Structure with the private key and certificate

param name="pSslCtx">Pointer to the OpenSSL SSL_CTX structure to initialize

summary>reads the public key in PEM format

Returns

byte vector with PEM encoded public key

ListContent()

SecurityConfigurationError Arp::System::Commons::Security::IdentityStore::ListContent	(	SecurityListType	type,
		std::vector< ItemInfo > &	result
	)

summary>add an element into the list referenced by ListType

returns>SecurityConfigurationError::None if operation was successful. In case of an error the error code identified the error is returned

SetCertificate()

SecurityConfigurationError Arp::System::Commons::Security::IdentityStore::SetCertificate

(

const std::vector< byte > &

pemData

)

summary>get certificate as byte array in PEM format

returns>byte vector with PEM encoded certificate

SetKeyPair()

SecurityConfigurationError Arp::System::Commons::Security::IdentityStore::SetKeyPair

(

const std::vector< byte > &

pemData

)

summary>Sets the certificate from pem data out if memory

param pemData="pemData">std::vector<byte> with pem encoded certificate

returns>SecurityConfigurationError::None if operation was successful. In case of an error the error code identified the error is returned

---

The documentation for this class was generated from the following file:

• Arp/System/Commons/Security/IdentityStore.hpp
