Data structure for notifications from the NotificationLogger More...

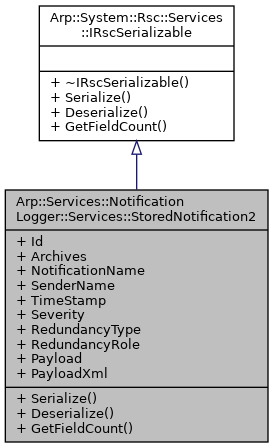

Inheritance diagram for Arp::Services::NotificationLogger::Services::StoredNotification2:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor

virtual void	Serialize (RscWriter &writer) const =0
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

virtual void	Deserialize (RscReader &reader)=0
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
uint64	Id = 0
	Id of the notification

std::vector< RscString< 64 > >	Archives
	Names of the archives the notification was retreived from. More...

RscString< 512 >	NotificationName
	Name of the notification

RscString< 512 >	SenderName
	Name of the sender

RscString< 32 >	TimeStamp
	Timestamp when the notification was sent

RscString< 32 >	Severity
	Severity

RscString< 32 >	RedundancyType
	Redundancy type (First, Second)

RscString< 32 >	RedundancyRole
	Redundancy role (Primary, Backup)

std::vector< RscString< 512 > >	Payload
	Formatted payload

std::vector< RscString< 512 > >	PayloadXml
	Payload as XML

Detailed Description

Data structure for notifications from the NotificationLogger

Member Function Documentation

void Arp::Services::NotificationLogger::Services::StoredNotification2::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

void Arp::Services::NotificationLogger::Services::StoredNotification2::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

std::vector<RscString<64> > Arp::Services::NotificationLogger::Services::StoredNotification2::Archives

Names of the archives the notification was retreived from.

The documentation for this class was generated from the following file:
