Contains parameter of an Interbus module for ReadConfiguration() and WriteConfiguration() of the Interbus. More...

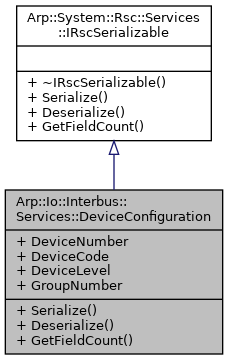

Inheritance diagram for Arp::Io::Interbus::Services::DeviceConfiguration:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor

virtual void	Serialize (RscWriter &writer) const =0
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

virtual void	Deserialize (RscReader &reader)=0
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
uint16	DeviceNumber = 0
	Device number: High Byte: BusSegmentNo, Low Byte: Position. For direct conneted local bus: BusSegmentNo 0, Position wtih left to right order, starting with 1.

uint16	DeviceCode = 0
	Device code: High Byte: Length Code, Low Byte: ID Code, see device documentation.

uint16	DeviceLevel = 0
	Device level: Level between 0 and 15, for direct conneted local bus 0.

uint16	GroupNumber = 0
	Group number: High Byte: Group, Low Byte: Alternative Only need for Control_Active_Configuration, default 0xFFFF.

Detailed Description

Contains parameter of an Interbus module for ReadConfiguration() and WriteConfiguration() of the Interbus.

Member Function Documentation

void Arp::Io::Interbus::Services::DeviceConfiguration::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

void Arp::Io::Interbus::Services::DeviceConfiguration::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

The documentation for this class was generated from the following file:
