This struct contains all settings of the netload limiter. It is used to set and get the current settings. More...

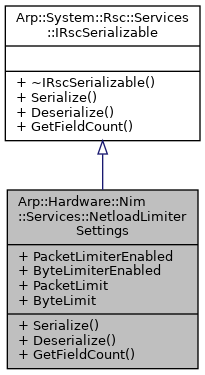

Inheritance diagram for Arp::Hardware::Nim::Services::NetloadLimiterSettings:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor

virtual void	Serialize (RscWriter &writer) const =0
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

virtual void	Deserialize (RscReader &reader)=0
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
boolean	PacketLimiterEnabled = false
	Flag to enable/disable packet limiter.

boolean	ByteLimiterEnabled = false
	Flag to enable/disable byte limiter.

uint16	PacketLimit = 0
	Count of allowed packets per millisecond. This value is used if PacketLimiterEnabled is set to true. 0 means no network communication allowed.

uint32	ByteLimit = 0
	Count of allowed bytes per millisecond. This value is used if ByteLimiterEnabled is set to true. 0 means no network communication allowed.

Detailed Description

This struct contains all settings of the netload limiter. It is used to set and get the current settings.

Member Function Documentation

void Arp::Hardware::Nim::Services::NetloadLimiterSettings::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

void Arp::Hardware::Nim::Services::NetloadLimiterSettings::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

The documentation for this class was generated from the following file:
