Arp::System::Um::Services::ISessionService Class Reference

UserManager Service to retrieve and set session properties like sessionId and extended session informations More...

#include <ISessionService.hpp>

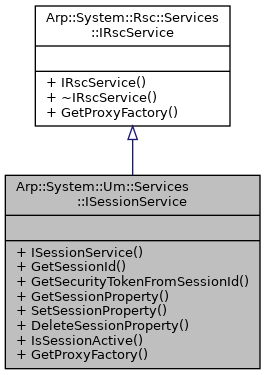

Inheritance diagram for Arp::System::Um::Services::ISessionService:

Public Types
using	Ptr = std::shared_ptr< ISessionService >
Public Types inherited from Arp::System::Rsc::Services::IRscService
typedef std::shared_ptr< IRscService >	Ptr

Public Member Functions
	ISessionService (void)=default
	Constructs an ISessionService instance.
virtual boolean	GetSessionId (SecurityToken securityToken, RscString< 128 > &sessionId)=0
	Gets a sessionId (strong security Token) for a UserManager(UM) session, represented by its Ade.CommonRemoting.Security.SecurityToken This is an alternative way to refer to the same session. Note: This method must not be called remotely via the RSC-Gateway and will throw an exception if attempted. More...
virtual boolean	GetSecurityTokenFromSessionId (const RscString< 128 > &sessionId, SecurityToken &securityToken)=0
	Searchs for a UserManager(UM) Session identified by a StrongSecurityToken. If a valid session was found, the UM securityToken is returned in parameter securityToken Note: This method must not be called remotely via the RSC-Gateway and will throw an exception if attempted. More...
virtual boolean	GetSessionProperty (SecurityToken securityToken, const RscString< 128 > &key, RscString< 128 > &value)=0
	Read a named property from a UserManager(UM) session. A property is extended information bound to a UM session identified by a key. Example: the user which opened the session. Note: This method must not be called remotely via the RSC-Gateway and will throw an exception if attempted. More...
virtual boolean	SetSessionProperty (SecurityToken securityToken, const RscString< 128 > &key, const RscString< 128 > &value)=0
	Sets a named property for a Um session. A property is extended information bound to a um session identified by a key. If a property was already set, further calls with the same key will override it. Note: This method must not be called remotely via the RSC-Gateway and will throw an exception if attempted. More...
virtual boolean	DeleteSessionProperty (SecurityToken securityToken, const RscString< 128 > &key)=0
	Deletes a named property for a Um session. Note: This method must not be called remotely via the RSC-Gateway and will throw an exception if attempted. More...
virtual boolean	IsSessionActive (SecurityToken securityToken)=0
	Check if the um session is active or not. Note: This method must not be called remotely via the RSC-Gateway and will throw an exception if attempted. More...
Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
	IRscService (void)=default
	Constructs an IRscService instance.
virtual	~IRscService (void)=default
	Destructs this instance and frees all resouces.

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)
Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of the service More...

Detailed Description

UserManager Service to retrieve and set session properties like sessionId and extended session informations

This service is only usable from the SDK for other processes running on the PLC; it is not intended for public use over the RSC-Gateway.
All code snippets are written for C++. SessionId and SecurityToken are semantically equivalent; However the SecurityToken is primarily intended for internal use, while the SessionId is a randomised string, which is harder to brute-force and should be preferred for all external applications like web based authentication. SessionProperties are used to add information to a session. Ex. the UserManager will add a property with the key "username" by default. In order to prevent overrides, external applications should prepend "Custom." to their own property-keys.

This service is defined in library Arp.System.Um.

Realtime Usage: This API call does not have to be deterministic in runtime behaviour, so an asynchronous execution should be considered.

Member Function Documentation

DeleteSessionProperty()

virtual boolean Arp::System::Um::Services::ISessionService::DeleteSessionProperty ( SecurityToken  securityToken, const RscString< 128 > &  key  )

pure virtual

Deletes a named property for a Um session.
Note: This method must not be called remotely via the RSC-Gateway and will throw an exception if attempted.

Parameters

securityToken	the um securityToken identifying the session
key	key identifying the extended info which should be deleted

Returns

false if the strongSecurityToken is not valid, true if securityToken is returned

Example:

ISessionService sessionService = ... // subscribe to service
bool result = sessionService.DeleteSessionProperty(securityToken, "CreatedBy");

GetSecurityTokenFromSessionId()

virtual boolean Arp::System::Um::Services::ISessionService::GetSecurityTokenFromSessionId ( const RscString< 128 > &  sessionId, SecurityToken &  securityToken  )

pure virtual

Searchs for a UserManager(UM) Session identified by a StrongSecurityToken. If a valid session was found, the UM securityToken is returned in parameter securityToken
Note: This method must not be called remotely via the RSC-Gateway and will throw an exception if attempted.

Parameters

sessionId	The strong sessionId to search for
securityToken	returns the Ade.CommonRemoting.Security.SecurityToken for the Um session

Returns

false if the strongSecurityToken is not valid, true otherwise

Example:

ISessionService sessionService = ... // subscribe to service
uint32 securityToken = 0;
String sessionId = //sessionId
bool result = sessionService.GetSecurityTokenFromSessionId(sessionId, securityToken);
if(!result) {...}

GetSessionId()

virtual boolean Arp::System::Um::Services::ISessionService::GetSessionId ( SecurityToken  securityToken, RscString< 128 > &  sessionId  )

pure virtual

Gets a sessionId (strong security Token) for a UserManager(UM) session, represented by its Ade.CommonRemoting.Security.SecurityToken
This is an alternative way to refer to the same session. Note: This method must not be called remotely via the RSC-Gateway and will throw an exception if attempted.

Parameters

securityToken	Ade.CommonRemoting.Security.SecurityToken identifying the session
sessionId	returns the strongToken, only valid if true is returned, Should be ignored otherwise

Returns

false if the securityToken is not valid (session expired or has never existed), true otherwise.

Example:

ISessionService sessionService = ... // subscribe to service
uint32 securityToken = 112345;
String sessionId;
bool result = sessionService.GetSessionId(securityToken, sessionId);
if(!result) {...}

GetSessionProperty()

virtual boolean Arp::System::Um::Services::ISessionService::GetSessionProperty ( SecurityToken  securityToken, const RscString< 128 > &  key, RscString< 128 > &  value  )

pure virtual

Read a named property from a UserManager(UM) session. A property is extended information bound to a UM session identified by a key. Example: the user which opened the session.
Note: This method must not be called remotely via the RSC-Gateway and will throw an exception if attempted.

Parameters

securityToken	the Ade.CommonRemoting.Security.SecurityTokenidentifying the session
key	key identifying the extended info
value	value of the session information identifying by key

Returns

true if the SecurityToken is valid and the Sessionproperty was set, false otherwise

Example:

ISessionService sessionService = ... // subscribe to service
String sessionCreator;
bool result = sessionService.GetSessionProperty(securityToken, "CreatedBy", sessionCreator);
if(!result) {...}

IsSessionActive()

virtual boolean Arp::System::Um::Services::ISessionService::IsSessionActive ( SecurityToken  securityToken )

pure virtual

Check if the um session is active or not.
Note: This method must not be called remotely via the RSC-Gateway and will throw an exception if attempted.

Parameters

securityToken

Security token of the session to be checked

Returns

true if the session is active, false otherwise

ISessionService sessionService = ... // subscribe to service
bool sessionActive = sessionService.IsSessionActive(securityToken);

SetSessionProperty()

virtual boolean Arp::System::Um::Services::ISessionService::SetSessionProperty ( SecurityToken  securityToken, const RscString< 128 > &  key, const RscString< 128 > &  value  )

pure virtual

Sets a named property for a Um session. A property is extended information bound to a um session identified by a key. If a property was already set, further calls with the same key will override it.
Note: This method must not be called remotely via the RSC-Gateway and will throw an exception if attempted.

Parameters

securityToken	the Ade.CommonRemoting.Security.SecurityToken identifying the session
key	key identifying the extended info
value	value to set as extended info for the um session

Returns

false if the securityToken is not valid, true if securityToken is valid.

Example:

ISessionService sessionService = ... // subscribe to service
bool result = sessionService.SetSessionProperty(securityToken, "CreatedBy", "TestUser");
if(!result) {...}

---

The documentation for this class was generated from the following file:

• Arp/System/Um/Services/ISessionService.hpp
