Payload class for changes of the network configuration More...
#include <NetworkConfigurationChangedPayload.hpp>

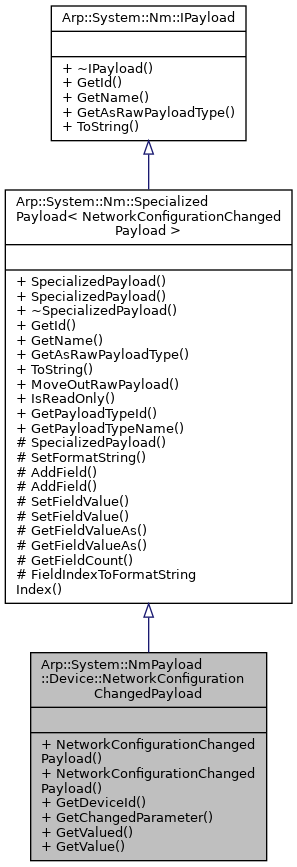

Inheritance diagram for Arp::System::NmPayload::Device::NetworkConfigurationChangedPayload:
Public Types | |
| using | ArgumentsType = std::tuple< uint32, const char *, const char *, bool > |
| ArgumentsType to be used with NonBlockingNotificationRegistration3 | |
 Public Types inherited from Arp::System::Nm::SpecializedPayload< NetworkConfigurationChangedPayload > | |
| using | ValueType = RawPayloadType::value_type |
| using | FieldType = Arp::System::Rsc::Services::RscType |
Public Member Functions | |
| NetworkConfigurationChangedPayload (const ArgumentsType &args) | |
| Creates a payload object | |
| NetworkConfigurationChangedPayload (uint32 deviceId, const String ¶meter, const String &value, bool successful) | |
| Creates a payload object More... | |
| uint32 | GetDeviceId () const |
| Returns the id of the affected device | |
| String | GetChangedParameter () const |
| Returns the name of the changed parameter | |
| String | GetValued () const |
| Returns the new value of the changed parameter More... | |
| String | GetValue () const |
| Returns the new value of the changed parameter | |
| Public Member Functions inherited from Arp::System::Nm::SpecializedPayload< NetworkConfigurationChangedPayload > | |
| SpecializedPayload (const Notification ¬ification) | |
| Creates a view on a Notification object More... | |
| SpecializedPayload (const GenericPayload &payloadArg) | |
| Creates a view on a GenericPayload object More... | |
| PayloadTypeIdType | GetId () const final |
| Returns the PayloadTypeId More... | |
| const String | GetName () const final |
| Returns the PayloadTypeName More... | |
| const RawPayloadType & | GetAsRawPayloadType () const final |
| Returns a reference to the raw payload object More... | |
| const String | ToString () const override |
| Get a human readable string representation More... | |
| RawPayloadType && | MoveOutRawPayload () |
| bool | IsReadOnly () const |
| Returns true if this object is a view on a Payload | |
| virtual PayloadTypeIdType | GetId () const =0 |
| Returns the PayloadTypeId More... | |
| virtual const String | GetName () const =0 |
| Returns the PayloadTypeName More... | |
| virtual const RawPayloadType & | GetAsRawPayloadType () const =0 |
| Returns a reference to the raw payload object More... | |
| virtual const String | ToString () const =0 |
| Get a human readable string representation More... | |
Additional Inherited Members | |
| Static Public Member Functions inherited from Arp::System::Nm::SpecializedPayload< NetworkConfigurationChangedPayload > | |
| static PayloadTypeIdType | GetPayloadTypeId () |
| Returns the PayloadTypeId More... | |
| static const String | GetPayloadTypeName () |
| Returns the PayloadType name More... | |
| Protected Member Functions inherited from Arp::System::Nm::SpecializedPayload< NetworkConfigurationChangedPayload > | |
| SpecializedPayload (const String &formatString) | |
| Creates a SpecializedPayload with an format string More... | |
| void | SetFormatString (const String &formatString) |
| summary>Retuns the index in the format string for a given payload field More... | |
| size_t | AddField () |
| Adds a payload field More... | |
| size_t | AddField () |
| Adds a payload field More... | |
| void | SetFieldValue (size_t fieldIndex, const T &value) |
| Sets the value of a payload field More... | |
| void | SetFieldValue (size_t fieldIndex, T value) |
| Sets the value of a payload field More... | |
| const T | GetFieldValueAs (size_t fieldIndex) const |
| Gets a field value with the specified type More... | |
| const T | GetFieldValueAs (size_t fieldIndex) const |
| Gets a field value with the specified type More... | |
| size_t | GetFieldCount () const |
| Gets the number of fields in the payload More... | |
| Static Protected Member Functions inherited from Arp::System::Nm::SpecializedPayload< NetworkConfigurationChangedPayload > | |
| static size_t | FieldIndexToFormatStringIndex (size_t fieldIndex) |
Detailed Description
Payload class for changes of the network configuration
This class is used by the device interface to notify of networtk configuration changes.
Constructor & Destructor Documentation
◆ NetworkConfigurationChangedPayload()
| Arp::System::NmPayload::Device::NetworkConfigurationChangedPayload::NetworkConfigurationChangedPayload | ( | uint32 | deviceId, |
| const String & | parameter, | ||
| const String & | value, | ||
| bool | successful | ||
| ) |
Creates a payload object
- Parameters
-
deviceId id of the changed device parameter changed parameter (e.g. ip-address, netmask, ...) value new value of the changed parameter successful true, if the change was executed successfully
Member Function Documentation
◆ GetValued()
| String Arp::System::NmPayload::Device::NetworkConfigurationChangedPayload::GetValued | ( | ) | const |
Returns the new value of the changed parameter
Deprecated! Use GetValue().
The documentation for this class was generated from the following file:
- Arp/System/NmPayload/Device/NetworkConfigurationChangedPayload.hpp
