Arp::System::Commons::Chrono::Timer Class Reference

High resolution timer for interval based executions. More...

#include <Timer.hpp>

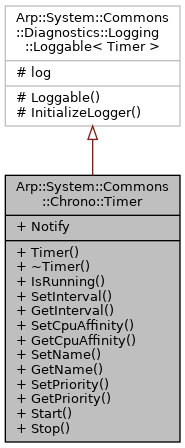

Inheritance diagram for Arp::System::Commons::Chrono::Timer:

Public Types
typedef event< void >	NotifyEvent
	Definition of list of delegates to be called when timer expires.

Public Member Functions
	Timer (size_t interval, const String &name, size_t priority, size_t cpuAffinity=0)
	Constructs an Timer instance. More...
	~Timer (void)
	Destructs this instance and frees all resources.
bool	IsRunning (void) const
	Checks if the timer is running, i.e. Start was already invoked. More...
void	SetInterval (size_t interval)
	Changes the interval in which the assigned methods are called. More...
size_t	GetInterval (void) const
	Returns the interval value in microseconds. More...
void	SetCpuAffinity (size_t affinity)
	Pins the timer to a specific CPUs inside a multiprocessor system. More...
size_t	GetCpuAffinity (void) const
	Returns the current used CPU affinity mask. More...
void	SetName (const String &value)
	Sets a new name for the timer. More...
const String &	GetName (void) const
	Returns the current name of the timer. More...
void	SetPriority (size_t value)
	Sets a new scheduling priority for the timer. More...
size_t	GetPriority (void) const
	Returns the current scheduling priority of the timer. More...
void	Start (void)
	Starts the execution of the timer. More...
void	Stop (void)
	Stops the execution of the timer.

Public Attributes
NotifyEvent	Notify
	List of class methods and classes that are called periodically whenever the predefined interval is expired.

Detailed Description

High resolution timer for interval based executions.

Instances of this class can be used to execute class methods periodically in a defined time intervall. The timer class itself takes care of computing the next timepoint where method has to be invoked. The developer only has to implement the class method that should be invoked whenever a specific interval expires.

A simple example that implements a counter that is incremented every 100 us is implemented by the following code

struct TimerNotifyHandler
{
    TimerNotifyHandler(void) : NotifyCount(0) {}
    void OnTimerNotify(void) { ++this->NotifyCount; }

    int NotifyCount;
};

TimerNotifyHandler handler;
Timer timer(100, "counterTimer", 0);
timer.Notify += make_delegate(&handler, &TimerNotifyHandler::OnTimerNotify);
timer.Start()

It is also possible to ad more than one method to the notification list of the timer instance.

TimerNotifyHandler handler2;
timer.Notify += make_delegate(&handler2, &TimerNotifyHandler::OnTimerNotify);

The methods will be called in the order they are assigned to the timers notification list.

Constructor & Destructor Documentation

Timer()

Arp::System::Commons::Chrono::Timer::Timer	(	size_t	interval,
		const String &	name,
		size_t	priority,
		size_t	cpuAffinity = 0
	)

Constructs an Timer instance.

Parameters

interval

The timer interval in microseconds. Parameters name Time to identify the timer. priority Scheduling priority for the timer. cpuAffinity CPU affinity mask determining on which CPU's the timer is allowed to run. For more information on CPU affinity masks see #Arp::System::Commons::Threading::Timer::SetCpuAffinity.

Exceptions

Arp::System::Commons::InvalidOperationException

if the timer could not be created.

Member Function Documentation

GetCpuAffinity()

size_t Arp::System::Commons::Chrono::Timer::GetCpuAffinity

(

void

)

const

Returns the current used CPU affinity mask.

For more information on CPU affinity masks see #Arp::System::Commons::Threading::Timer::SetCpuAffinity.

Returns

The current used CPU affinity mask.

GetInterval()

size_t Arp::System::Commons::Chrono::Timer::GetInterval

(

void

)

const

Returns the interval value in microseconds.

Returns

Interval value in microseconds.

GetName()

const String & Arp::System::Commons::Chrono::Timer::GetName

(

void

)

const

Returns the current name of the timer.

Returns

Current name of the timer.

GetPriority()

size_t Arp::System::Commons::Chrono::Timer::GetPriority

(

void

)

const

Returns the current scheduling priority of the timer.

Returns

The current scheduling priority of the timer.

IsRunning()

bool Arp::System::Commons::Chrono::Timer::IsRunning ( void  ) const

inline

Checks if the timer is running, i.e. Start was already invoked.

Returns

True if the timer is already running, otherwise false is returned.

SetCpuAffinity()

void Arp::System::Commons::Chrono::Timer::SetCpuAffinity

(

size_t

affinity

)

Pins the timer to a specific CPUs inside a multiprocessor system.

For more information on CPU affinity masks see #Arp::System::Commons::Threading::Timer::SetCpuAffinity.

Parameters

mask	A mask determine which the CPU is allowed to execute the thread.

SetInterval()

void Arp::System::Commons::Chrono::Timer::SetInterval

(

size_t

interval

)

Changes the interval in which the assigned methods are called.

This has no effect if the timer is already started.

Parameters

interval

New interval value in microseconds.

SetName()

void Arp::System::Commons::Chrono::Timer::SetName

(

const String &

value

)

Sets a new name for the timer.

Parameters

value

New name for timer.

SetPriority()

void Arp::System::Commons::Chrono::Timer::SetPriority

(

size_t

value

)

Sets a new scheduling priority for the timer.

Parameters

value

New scheduling priority.

Start()

void Arp::System::Commons::Chrono::Timer::Start

(

void

)

Starts the execution of the timer.

Exceptions

Arp::Exception

in case of failure or timer was already started.

---

The documentation for this class was generated from the following file:

• Arp/System/Commons/Chrono/Timer.hpp
