Base class for libraries providing meta data More...

#include <MetaLibraryBase.hpp>

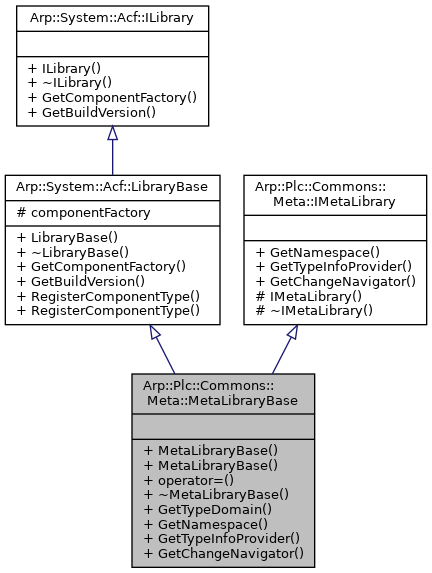

Inheritance diagram for Arp::Plc::Commons::Meta::MetaLibraryBase:

Public Member Functions
	MetaLibraryBase (AppDomain &appDomain, const Version &buildVersion, TypeDomain &typeDomain)
	Constructs an MetaLibraryBase instance. More...

	MetaLibraryBase (const MetaLibraryBase &arg)=default
	Copy constructor.

MetaLibraryBase &	operator= (const MetaLibraryBase &arg)=default
	Assignment operator.

	~MetaLibraryBase (void) override=default
	Destructs this instance and frees all resources.

TypeDomain &	GetTypeDomain ()

const char *	GetNamespace (void) override
	Gets the namespace of this library. More...

ITypeInfoProvider &	GetTypeInfoProvider (bool useBackgroundDomain) override
	Gets the ITypeInfoProvider of this library. More...

IChangeNavigator *	GetChangeNavigator (void) override
	Gets the specialized IChangeNavigator of this component. More...

Public Member Functions inherited from Arp::System::Acf::LibraryBase
	LibraryBase (AppDomain &appDomain, const Version &buildVersion)
	Constructs an isntance of class LibraryBase. More...

virtual	~LibraryBase (void)
	The default destructor.

IComponentFactory &	GetComponentFactory (void) override
	Gets the component factory of this library to create instances of its provided components. More...

const Version &	GetBuildVersion (void) const override
	Gets the build version of the SDK/Firmware which was used to build this library. More...

template<class T >
void	RegisterComponentType (void)
	This template operation registers the as template parameter passed component type, using the C++ typename and the static `Create</> of the component type, which creates an instance of the component type.` More...

template<class T >
void	RegisterComponentType (const String &typeName)
	This template operation registers the as template parameter passed component type, using the C++ typename and the static `Create</> of the component type, which creates an instance of the component type.` More...

Public Member Functions inherited from Arp::System::Acf::ILibrary
	ILibrary (void)=default
	The default constructor.

virtual	~ILibrary (void)=default
	The default destructor.

virtual IComponentFactory &	GetComponentFactory (void)=0
	Gets the component factory of this library to create instances of its provided components. More...

virtual const Version &	GetBuildVersion (void) const =0
	Gets the SDK version of the SDK used to build the shared library. More...

virtual const char *	GetNamespace (void)=0
	Gets the namespace of this library. More...

virtual ITypeInfoProvider &	GetTypeInfoProvider (bool useBackgroundDomain)=0
	Gets the ITypeInfoProvider of this library. More...

virtual IChangeNavigator *	GetChangeNavigator (void)=0
	Gets the specialized IChangeNavigator of this component. More...

Additional Inherited Members
Public Types inherited from Arp::System::Acf::ILibrary
typedef ILibrary *	Ptr
	The pointer type of this interface.

typedef ILibrary &(*	MainEntry) (AppDomain &appDomain)
	This is the prototype of the main entry point of any library which shall be loaded dynamically by the Acf. More...

Public Types inherited from Arp::Plc::Commons::Meta::IMetaLibrary
using	Ptr = std::shared_ptr< IMetaLibrary >
	std::shared_ptr to IMetaLibrary

Protected Types inherited from Arp::System::Acf::ILibrary
typedef void(*	Main) (AppDomain &appDomain)
	This is the prototype of the (static) entry point or auxiliary operation of any library class. More...

Protected Member Functions inherited from Arp::Plc::Commons::Meta::IMetaLibrary
	IMetaLibrary (void)=default
	Constructs an IMetaLibrary instance.

virtual	~IMetaLibrary (void)=default
	Destructs this instance and frees all resources.

Protected Attributes inherited from Arp::System::Acf::LibraryBase
ComponentFactory	componentFactory
	This field is used to register library specific component factory methods.

Detailed Description

Base class for libraries providing meta data

Constructor & Destructor Documentation

◆ MetaLibraryBase()

Arp::Plc::Commons::Meta::MetaLibraryBase::MetaLibraryBase	(	AppDomain &	appDomain,
		const Version &	buildVersion,
		TypeDomain &	typeDomain
	)

inline

Constructs an MetaLibraryBase instance.

Parameters

appDomain	Reference to the current AppDomain
buildVersion	Version of this library
typeDomain	Refrence to this library's TypeDomain

Member Function Documentation

◆ GetChangeNavigator()

IChangeNavigator * Arp::Plc::Commons::Meta::MetaLibraryBase::GetChangeNavigator ( void )

inlineoverridevirtual

Gets the specialized IChangeNavigator of this component.

Returns: The change navigator of this component or nullptr if it's not provided.

Implements Arp::Plc::Commons::Meta::IMetaLibrary.

◆ GetNamespace()

const char * Arp::Plc::Commons::Meta::MetaLibraryBase::GetNamespace ( void )

inlineoverridevirtual

Gets the namespace of this library.

Returns: The namespace of this library.

Implements Arp::Plc::Commons::Meta::IMetaLibrary.

◆ GetTypeInfoProvider()

ITypeInfoProvider & Arp::Plc::Commons::Meta::MetaLibraryBase::GetTypeInfoProvider ( bool useBackgroundDomain )

inlineoverridevirtual

Gets the ITypeInfoProvider of this library.

Returns: The type info provider of this library.

Parameters

useBackgroundDomain true if the provider of the background domain should be returned, otherwise false.

Implements Arp::Plc::Commons::Meta::IMetaLibrary.

The documentation for this class was generated from the following file:

Arp/Plc/Commons/Meta/MetaLibraryBase.hpp
