Provide array information. More...

#include <ArrayDimension.hpp>

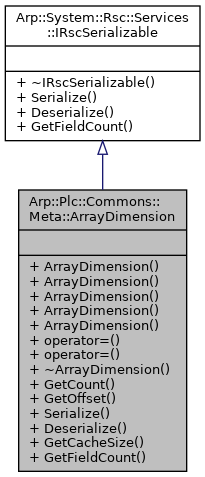

Inheritance diagram for Arp::Plc::Commons::Meta::ArrayDimension:

Public Member Functions
	ArrayDimension (void)=default
	Constructs an ArrayDimension instance.

	ArrayDimension (size_t count)
	Constructs an ArrayDimension instance.

	ArrayDimension (uint32 count, int32 offset)
	Constructs an ArrayDimension instance.

	ArrayDimension (const ArrayDimension &arg)=default
	Copy constructor.

	ArrayDimension (ArrayDimension &&arg)=default
	Move constructor.

ArrayDimension &	operator= (const ArrayDimension &arg)=default
	Copy assignment operator.

ArrayDimension &	operator= (ArrayDimension &&arg)=default
	Move assignment operator.

	~ArrayDimension (void) override=default
	Destructs this instance and frees all resources.

uint32	GetCount (void) const
	Get the number of array elements for this vector element. More...

int32	GetOffset (void) const
	Get the index offset of the array for this vector element More...

void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor

virtual void	Serialize (RscWriter &writer) const =0
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

virtual void	Deserialize (RscReader &reader)=0
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Static Public Member Functions
static size_t	GetCacheSize (void)
	Get the cache size More...

static size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Detailed Description

Provide array information.

Member Function Documentation

◆ Deserialize()

void Arp::Plc::Commons::Meta::ArrayDimension::Deserialize ( RscReader & reader )

overridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

Implements Arp::System::Rsc::Services::IRscSerializable.

◆ GetCacheSize()

size_t Arp::Plc::Commons::Meta::ArrayDimension::GetCacheSize ( void )

inlinestatic

Get the cache size

Returns: Number of using cache size

◆ GetCount()

uint32 Arp::Plc::Commons::Meta::ArrayDimension::GetCount ( void ) const

inline

Get the number of array elements for this vector element.

Returns: Number of array elements.

◆ GetOffset()

int32 Arp::Plc::Commons::Meta::ArrayDimension::GetOffset ( void ) const

inline

Get the index offset of the array for this vector element

Returns: Array offset index.

◆ Serialize()

void Arp::Plc::Commons::Meta::ArrayDimension::Serialize ( RscWriter & writer ) const

overridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter
