Arp::Io::ProfinetStack::Controller::Services::ChannelProcessAlarmReasonInfo Class Reference

This struct contains the name and help texts to a diagnosis process alarm reason. More...

#include <ChannelProcessAlarmReasonInfo.hpp>

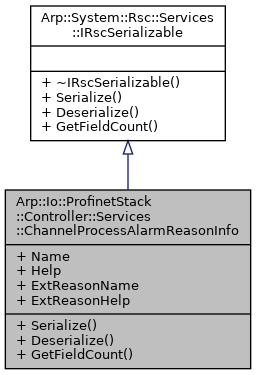

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::ChannelProcessAlarmReasonInfo:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...
void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...
Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor
virtual void	Serialize (RscWriter &writer) const =0
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...
virtual void	Deserialize (RscReader &reader)=0
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)
Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
RscString< 512 >	Name
	Name of the reason
RscString< 512 >	Help
	Help text of the reason
RscString< 512 >	ExtReasonName
	Name of the extended reason
RscString< 512 >	ExtReasonHelp
	Help text of the extended reason

Detailed Description

This struct contains the name and help texts to a diagnosis process alarm reason.

Member Function Documentation

Deserialize()

void Arp::Io::ProfinetStack::Controller::Services::ChannelProcessAlarmReasonInfo::Deserialize ( RscReader &  reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader

Reference to RscReader.

Implements Arp::System::Rsc::Services::IRscSerializable.

Serialize()

void Arp::Io::ProfinetStack::Controller::Services::ChannelProcessAlarmReasonInfo::Serialize ( RscWriter &  writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer

Reference to RscWriter

Implements Arp::System::Rsc::Services::IRscSerializable.

---

The documentation for this class was generated from the following file:

• Arp/Io/ProfinetStack/Controller/Services/ChannelProcessAlarmReasonInfo.hpp
