Delivers Profibus system variables More...

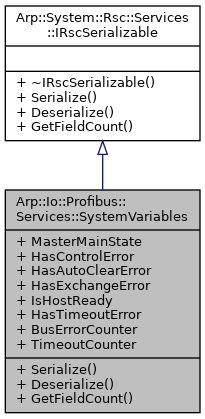

Inheritance diagram for Arp::Io::Profibus::Services::SystemVariables:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor

virtual void	Serialize (RscWriter &writer) const =0
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

virtual void	Deserialize (RscReader &reader)=0
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
uint8	MasterMainState = 0
	Delivers main state of Profibus master More...

boolean	HasControlError = false
	Error is caused by incorrect parameterization

boolean	HasAutoClearError = false
	Communication is stopped to all slaves

boolean	HasExchangeError = false
	At least one slave does not exchange process data

boolean	IsHostReady = false
	Host is ready to communicate

boolean	HasTimeoutError = false
	Timeout occured because of rejected Profibus telegram

uint16	BusErrorCounter = 0
	Counter for bus error events

uint16	TimeoutCounter = 0
	Counter for bus timeouts

Detailed Description

Delivers Profibus system variables

Member Function Documentation

void Arp::Io::Profibus::Services::SystemVariables::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

void Arp::Io::Profibus::Services::SystemVariables::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

uint8 Arp::Io::Profibus::Services::SystemVariables::MasterMainState = 0

Delivers main state of Profibus master

0x00 : OFFLINE

0x40 : STOP

0x80 : CLEAR

0xC0 : OPERATE

The documentation for this class was generated from the following file:
