This service provides acyclic communication to PCP devices. As default all PCP devices in the Interbus get a Communication Reference. The CR is assigned in the connection order starting with 2. This CR ist used to select the device in all operations of this service. More...

#include <IPcpService.hpp>

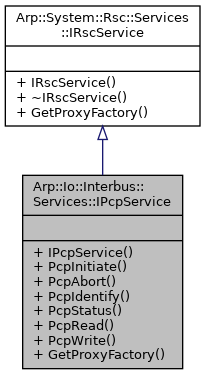

Inheritance diagram for Arp::Io::Interbus::Services::IPcpService:

Public Types
using	Ptr = std::shared_ptr< IPcpService >

Public Types inherited from Arp::System::Rsc::Services::IRscService
typedef std::shared_ptr< IRscService >	Ptr

Public Member Functions
	IPcpService (void)=default
	Constructs an IPcpService instance.

virtual InitiateResult	PcpInitiate (uint8 communicationReference)=0
	This operation establishs a connection to a PCP device. More...

virtual void	PcpAbort (uint8 communicationReference, uint8 reasonCode, const std::vector< byte > &abortDetail)=0
	This operation aborts a connection to a PCP device. More...

virtual IdentifyResult	PcpIdentify (uint8 communicationReference, uint8 invokeId)=0
	This operation gets device information of PCP device. More...

virtual StatusResult	PcpStatus (uint8 communicationReference, uint8 invokeId)=0
	This operation gets current status of PCP device. More...

virtual InterbusResult	PcpRead (uint8 communicationReference, uint8 invokeId, const ObjectAddress &pcpObject, std::vector< byte > &data)=0
	This operation reads a data record from a PCP device. More...

virtual InterbusResult	PcpWrite (uint8 communicationReference, uint8 invokeId, const ObjectAddress &pcpObject, const std::vector< byte > &data)=0
	This operation writes a data record to a PCP device. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
	IRscService (void)=default
	Constructs an IRscService instance.

virtual	~IRscService (void)=default
	Destructs this instance and frees all resouces.

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of the service More...

Detailed Description

This service provides acyclic communication to PCP devices. As default all PCP devices in the Interbus get a Communication Reference. The CR is assigned in the connection order starting with 2. This CR ist used to select the device in all operations of this service.

The execution of PCP services can take some time (seriel communication). For more information to PCP see "IBS SYS PCP G4 UM".

This service is defined in library Arp.Io.Interbus.

Realtime Usage: This API call does not have to be deterministic in runtime behaviour, so an asynchronous execution should be considered.

Member Function Documentation

◆ PcpAbort()

virtual void Arp::Io::Interbus::Services::IPcpService::PcpAbort	(	uint8	communicationReference,
		uint8	reasonCode,
		const std::vector< byte > &	abortDetail
	)

pure virtual

This operation aborts a connection to a PCP device.

Parameters

communicationReference	Communication reference
reasonCode	Reason for connection abort
abortDetail	Abort details

◆ PcpIdentify()

virtual IdentifyResult Arp::Io::Interbus::Services::IPcpService::PcpIdentify	(	uint8	communicationReference,
		uint8	invokeId
	)

pure virtual

This operation gets device information of PCP device.

Parameters

communicationReference	Communication reference
invokeId	Invode ID (Default value = 0)

Returns: Structure with result Arp.Io.Interbus.Services.IdentifyResult

◆ PcpInitiate()

virtual InitiateResult Arp::Io::Interbus::Services::IPcpService::PcpInitiate ( uint8 communicationReference )

pure virtual

This operation establishs a connection to a PCP device.

Parameters

communicationReference Communication reference

Returns: Structure with result Arp.Io.Interbus.Services.InitiateResult

◆ PcpRead()

virtual InterbusResult Arp::Io::Interbus::Services::IPcpService::PcpRead	(	uint8	communicationReference,
		uint8	invokeId,
		const ObjectAddress &	pcpObject,
		std::vector< byte > &	data
	)

pure virtual

This operation reads a data record from a PCP device.

Parameters

communicationReference	Communication reference
invokeId	Invoke ID (Default value = 0)
pcpObject	Selected PCP object
data	Data that are read from the object

Returns: Structure with error information Arp.Io.Interbus.Services.InterbusResult

◆ PcpStatus()

virtual StatusResult Arp::Io::Interbus::Services::IPcpService::PcpStatus	(	uint8	communicationReference,
		uint8	invokeId
	)

pure virtual

This operation gets current status of PCP device.

Parameters

communicationReference	Communication reference
invokeId	Invoke ID (Default value = 0)

Returns: Structure with result Arp.Io.Interbus.Services.StatusResult

◆ PcpWrite()

virtual InterbusResult Arp::Io::Interbus::Services::IPcpService::PcpWrite	(	uint8	communicationReference,
		uint8	invokeId,
		const ObjectAddress &	pcpObject,
		const std::vector< byte > &	data
	)

pure virtual

This operation writes a data record to a PCP device.

Parameters

communicationReference	Communication reference
invokeId	Invoke ID (Default value = 0)
pcpObject	Selected PCP object
data	Data that shall be written in the object

Returns: Structure with error information Arp.Io.Interbus.Services.InterbusResult

The documentation for this class was generated from the following file:

Arp/Io/Interbus/Services/IPcpService.hpp
