Contains all parameters to address an object on an Axioline module with an acyclic communication service. More...

#include <PdiParam.hpp>

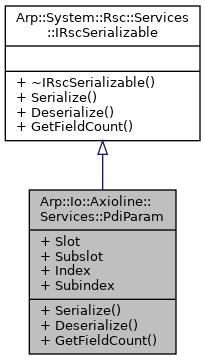

Inheritance diagram for Arp::Io::Axioline::Services::PdiParam:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor

virtual void	Serialize (RscWriter &writer) const =0
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

virtual void	Deserialize (RscReader &reader)=0
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
uint16	Slot = 0
	Slot number: Select module in the Axioline bus (left to right order, starting with 1).

uint8	Subslot = 0
	Subslot number: On modules with subordinate systems to select subordinate modules, on other modules set to 0.

uint16	Index = 0
	Object index: For supported objects see module documentation.

uint8	Subindex = 0
	Object subindex: If the object supports partial access to select the part, 0 for whole object.

Detailed Description

Contains all parameters to address an object on an Axioline module with an acyclic communication service.

Member Function Documentation

void Arp::Io::Axioline::Services::PdiParam::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

void Arp::Io::Axioline::Services::PdiParam::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

The documentation for this class was generated from the following file:
