Statistical values for the NetloadLimiter More...

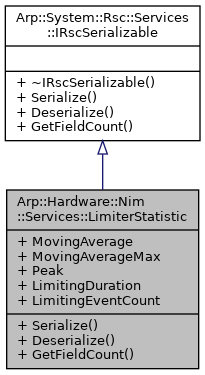

Inheritance diagram for Arp::Hardware::Nim::Services::LimiterStatistic:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor

virtual void	Serialize (RscWriter &writer) const =0
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

virtual void	Deserialize (RscReader &reader)=0
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
uint32	MovingAverage = 0
	Moving average over 1 second (1000 measurement cycles per second).

uint32	MovingAverageMax = 0
	Max value of Arp.Hardware.Nim.Services.LimiterStatistic.MovingAverage.

uint32	Peak = 0
	Max value of a single 1 milli second measurement cycle.

uint64	LimitingDuration = 0
	Sum of time the limiter was limiting since last reset (microseconds).

uint32	LimitingEventCount = 0
	Number of limiting events since last reset.

Detailed Description

Statistical values for the NetloadLimiter

Member Function Documentation

void Arp::Hardware::Nim::Services::LimiterStatistic::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

void Arp::Hardware::Nim::Services::LimiterStatistic::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

The documentation for this class was generated from the following file:
