Arp::Io::ProfinetStack::Controller::Services::NodeIdentityInfo Class Reference

Contains the ident numbers and names the corresponding module and submodule of a node. More...

#include <NodeIdentityInfo.hpp>

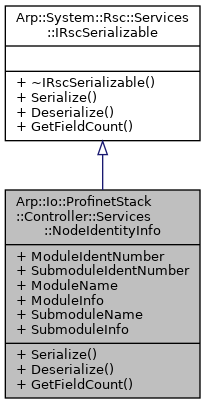

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::NodeIdentityInfo:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...
void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...
Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor
virtual void	Serialize (RscWriter &writer) const =0
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...
virtual void	Deserialize (RscReader &reader)=0
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)
Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
uint32	ModuleIdentNumber = 0
	ModuleIdentNumber
uint32	SubmoduleIdentNumber = 0
	SubmoduleIdentNumber
RscString< 512 >	ModuleName
	Text name of the module type
RscString< 512 >	ModuleInfo
	Info text of the module type
RscString< 512 >	SubmoduleName
	Text name of the SubmoduleName
RscString< 512 >	SubmoduleInfo
	Info text of the SubmoduleName

Detailed Description

Contains the ident numbers and names the corresponding module and submodule of a node.

Member Function Documentation

Deserialize()

void Arp::Io::ProfinetStack::Controller::Services::NodeIdentityInfo::Deserialize ( RscReader &  reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader

Reference to RscReader.

Implements Arp::System::Rsc::Services::IRscSerializable.

Serialize()

void Arp::Io::ProfinetStack::Controller::Services::NodeIdentityInfo::Serialize ( RscWriter &  writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer

Reference to RscWriter

Implements Arp::System::Rsc::Services::IRscSerializable.

---

The documentation for this class was generated from the following file:

• Arp/Io/ProfinetStack/Controller/Services/NodeIdentityInfo.hpp
