Contains the information where a diagnosis is located on the device according to "Guideline for PROFINET - Diagnosis for PROFINET" More...

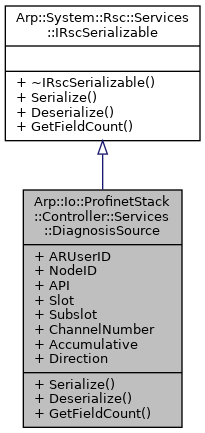

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::DiagnosisSource:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor

virtual void	Serialize (RscWriter &writer) const =0
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

virtual void	Deserialize (RscReader &reader)=0
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
uint16	ARUserID = 0
	User ID of the application relation

uint32	NodeID = 0
	NodeID of the diagnosis source

uint32	API = 0
	Application Process Identifier of the diagnosis source

uint16	Slot = 0
	Slot numer of the diagnosis source

uint16	Subslot = 0
	Subslot number of the diagnosis source

uint16	ChannelNumber = 0
	Channel Number of the diagnosis source. If set to 0x8000 the channel number adresses the whole submodule.

boolean	Accumulative = false
	If set to true the diagnosis source addresses a channel group.

DiagnosisDirection	Direction = static_cast<DiagnosisDirection>(0)
	Direction of the channel of the diagnosis source.

Detailed Description

Contains the information where a diagnosis is located on the device according to "Guideline for PROFINET - Diagnosis for PROFINET"

Member Function Documentation

void Arp::Io::ProfinetStack::Controller::Services::DiagnosisSource::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

void Arp::Io::ProfinetStack::Controller::Services::DiagnosisSource::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

The documentation for this class was generated from the following file:
