Arp::Device::Interface::Services::IDeviceSettingsService Class Reference

This service provides operations to read and write settings from resp. to the device. More...

#include <IDeviceSettingsService.hpp>

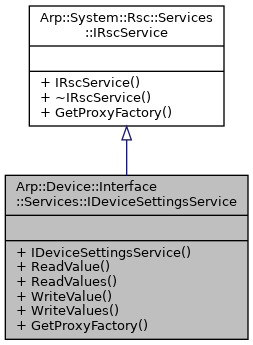

Inheritance diagram for Arp::Device::Interface::Services::IDeviceSettingsService:

Public Types
using	Ptr = std::shared_ptr< IDeviceSettingsService >
using	ReadValuesResultDelegate = delegate< void(IRscReadEnumerator< DeviceSettingResult > &)>
using	ReadValuesSettingsDelegate = delegate< void(IRscWriteEnumerator< RscString< 512 > > &)>
using	WriteValuesResultDelegate = delegate< void(IRscReadEnumerator< AccessErrorCode > &)>
using	WriteValuesSettingItemsDelegate = delegate< void(IRscWriteEnumerator< DeviceSettingItem > &)>
Public Types inherited from Arp::System::Rsc::Services::IRscService
typedef std::shared_ptr< IRscService >	Ptr

Public Member Functions
	IDeviceSettingsService (void)=default
	Constructs an IDeviceSettingsService instance.
virtual DeviceSettingResult	ReadValue (const RscString< 512 > &setting)=0
	This operation reads a single setting. More...
virtual void	ReadValues (ReadValuesSettingsDelegate settingsDelegate, ReadValuesResultDelegate resultDelegate)=0
	This operation reads a list of settings. More...
virtual AccessErrorCode	WriteValue (const DeviceSettingItem &settingItem)=0
	This operation writes a single setting. More...
virtual void	WriteValues (WriteValuesSettingItemsDelegate settingItemsDelegate, WriteValuesResultDelegate resultDelegate)=0
	This operation writes a list of settings. More...
Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
	IRscService (void)=default
	Constructs an IRscService instance.
virtual	~IRscService (void)=default
	Destructs this instance and frees all resouces.

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)
Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of the service More...

Detailed Description

This service provides operations to read and write settings from resp. to the device.

The service is defined in the library Arp.Device.Interface.
A current documentation of available device settings can be found in the Phoenix Contact "PLCnext Info Center", e.g.: PLCnext Info Center: IDeviceSettingsService.

Member Function Documentation

ReadValue()

virtual DeviceSettingResult Arp::Device::Interface::Services::IDeviceSettingsService::ReadValue ( const RscString< 512 > &  setting )

pure virtual

This operation reads a single setting.

Parameters

setting

String containing the respective setting.

Returns

The result of the read operation as Arp.Device.Interface.Services.DeviceSettingResult.

ReadValues()

virtual void Arp::Device::Interface::Services::IDeviceSettingsService::ReadValues ( ReadValuesSettingsDelegate  settingsDelegate, ReadValuesResultDelegate  resultDelegate  )

pure virtual

This operation reads a list of settings.

Parameters

settings

Array of strings containing the respective settings.

Returns

The results of the read operation as an array of Arp.Device.Interface.Services.DeviceSettingResult.

WriteValue()

virtual AccessErrorCode Arp::Device::Interface::Services::IDeviceSettingsService::WriteValue ( const DeviceSettingItem &  settingItem )

pure virtual

This operation writes a single setting.

Parameters

settingItem

Arp.Device.Interface.Services.DeviceSettingItem containing a string for selecting the respective setting and its new value.

Returns

The result of the write operation as Arp.Device.Interface.Services.AccessErrorCode.

WriteValues()

virtual void Arp::Device::Interface::Services::IDeviceSettingsService::WriteValues ( WriteValuesSettingItemsDelegate  settingItemsDelegate, WriteValuesResultDelegate  resultDelegate  )

pure virtual

This operation writes a list of settings.

Parameters

settingItems

Array of Arp.Device.Interface.Services.DeviceSettingItem each containing a string for selecting the respective setting and its new value.

Returns

The result of the write operation as an array of Arp.Device.Interface.Services.AccessErrorCode.

---

The documentation for this class was generated from the following file:

• Arp/Device/Interface/Services/IDeviceSettingsService.hpp
