Contains error information of an Interbus service. More...

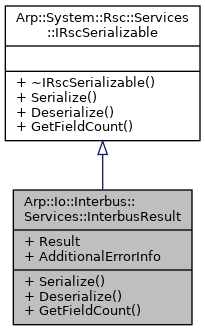

Inheritance diagram for Arp::Io::Interbus::Services::InterbusResult:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor

virtual void	Serialize (RscWriter &writer) const =0
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

virtual void	Deserialize (RscReader &reader)=0
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
uint16	Result = 0
	Result describes the error cause. (0 = No error) To get the meaning of Result, please refer to the Interbus manual for firmware services. There you will find a section of error codes.

uint16	AdditionalErrorInfo = 0
	AdditionalErrorInfo gives additional information about the error cause described by Result. To get the meaning of AdditionalErrorInfo, please refer to the Interbus manual for firmware services. There you will find a section of error codes.

Detailed Description

Contains error information of an Interbus service.

Member Function Documentation

void Arp::Io::Interbus::Services::InterbusResult::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

void Arp::Io::Interbus::Services::InterbusResult::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

The documentation for this class was generated from the following file:
