Arp::System::Commons::Xml::IXmlSerializable Class Reference

Interface for all classes which should be serializable for xml More...

#include <IXmlSerializable.hpp>

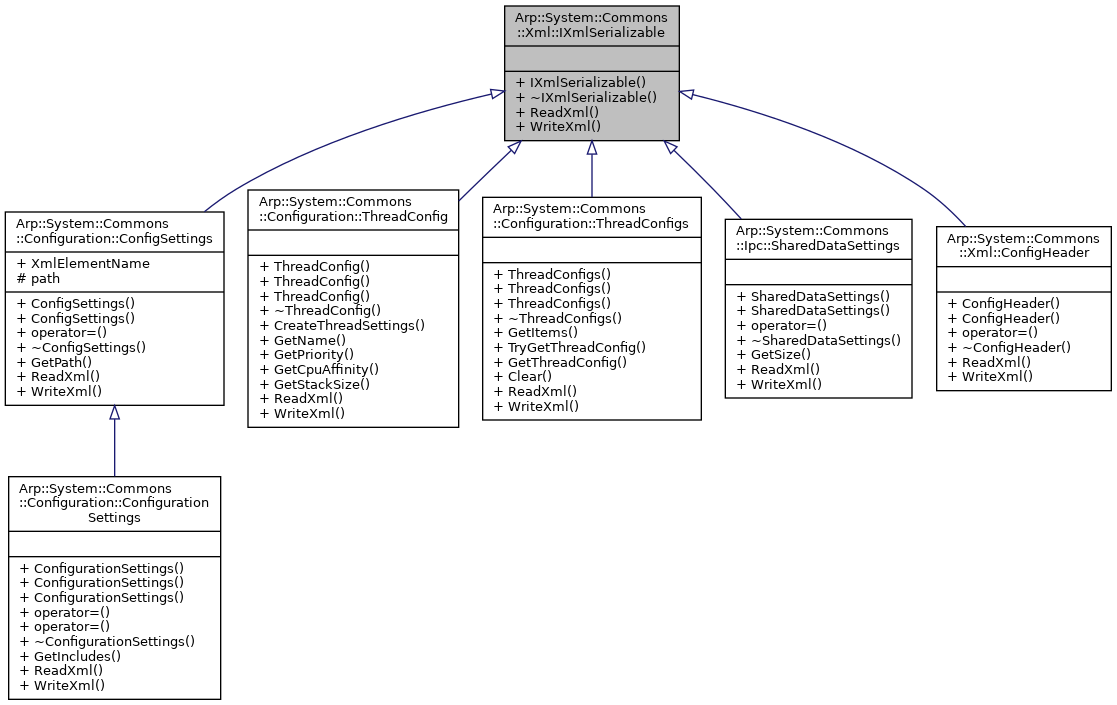

Inheritance diagram for Arp::System::Commons::Xml::IXmlSerializable:

Public Member Functions
	IXmlSerializable (void)=default
	Constructs an IXmlSerializable instance. More...
virtual	~IXmlSerializable (void)=default
	Copy constructor. More...
virtual void	ReadXml (XmlReader &reader, XmlSerializationContext &context)=0
	ReadXML must be implemented by all classes which should read its context from xml files More...
virtual void	WriteXml (XmlWriter &writer, XmlSerializationContext &context)=0

Detailed Description

Interface for all classes which should be serializable for xml

Constructor & Destructor Documentation

IXmlSerializable()

Arp::System::Commons::Xml::IXmlSerializable::IXmlSerializable ( void  )

default

Constructs an IXmlSerializable instance.

~IXmlSerializable()

virtual Arp::System::Commons::Xml::IXmlSerializable::~IXmlSerializable ( void  )

virtualdefault

Copy constructor.

Assignment operator.

Destructs this instance and frees all resources.

Member Function Documentation

ReadXml()

virtual void Arp::System::Commons::Xml::IXmlSerializable::ReadXml ( XmlReader &  reader, XmlSerializationContext &  context  )

pure virtual

ReadXML must be implemented by all classes which should read its context from xml files

param name="reader">The XmlReader which must be used to read the xml document

param name="context">XmlSerializationContext used by the document

summary>WriteXml must be implemented by all classes which should write its context to xml files

param name="writer">The XmlWriter which must be used to write the xml data

param name="context">XmlSerializationContext used by the document

Implemented in Arp::System::Commons::Xml::ConfigHeader, Arp::System::Commons::Ipc::SharedDataSettings, Arp::System::Commons::Configuration::ThreadConfigs, Arp::System::Commons::Configuration::ThreadConfig, Arp::System::Commons::Configuration::ConfigurationSettings, and Arp::System::Commons::Configuration::ConfigSettings.

---

The documentation for this class was generated from the following file:

• Arp/System/Commons/Xml/IXmlSerializable.hpp
