Data structure for notifications from the NotificationLogger More...
#include <StoredNotification2.hpp>
Public Member Functions | |
| void | Serialize (RscWriter &writer) const override |
| Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More... | |
| void | Deserialize (RscReader &reader) override |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More... | |

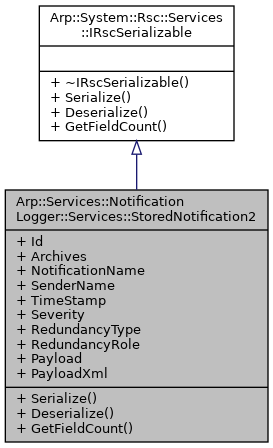

 Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable | |
| virtual | ~IRscSerializable ()=default |
| default destructor More... | |
Static Public Member Functions | |
| static constexpr size_t | GetFieldCount (void) |
| Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable | |
| static size_t | GetFieldCount (void) |
| Returns the count of fields of the struct type More... | |
Public Attributes | |
| uint64 | Id = 0 |
| Id of the notification More... | |
| std::vector< RscString< 64 > > | Archives |
| Names of the archives the notification was retreived from. More... | |
| RscString< 512 > | NotificationName |
| Name of the notification More... | |
| RscString< 512 > | SenderName |
| Name of the sender More... | |
| RscString< 32 > | TimeStamp |
| Timestamp when the notification was sent More... | |
| RscString< 32 > | Severity |
| Severity More... | |
| RscString< 32 > | RedundancyType |
| Redundancy type (First, Second) More... | |
| RscString< 32 > | RedundancyRole |
| Redundancy role (Primary, Backup) More... | |
| std::vector< RscString< 512 > > | Payload |
| Formatted payload More... | |
| std::vector< RscString< 512 > > | PayloadXml |
| Payload as XML More... | |
Detailed Description
Data structure for notifications from the NotificationLogger
Member Function Documentation
◆ Deserialize()
|
inlineoverridevirtual |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.
- Parameters
-
reader Reference to RscReader.
Implements Arp::System::Rsc::Services::IRscSerializable.
◆ Serialize()
|
inlineoverridevirtual |
Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.
- Parameters
-
writer Reference to RscWriter
Implements Arp::System::Rsc::Services::IRscSerializable.
Member Data Documentation
◆ Archives
| std::vector<RscString<64> > Arp::Services::NotificationLogger::Services::StoredNotification2::Archives |
Names of the archives the notification was retreived from.
Corresponds to Archive of Arp.Services.NotificationLogger.Services.StoredNotification
◆ Id
| uint64 Arp::Services::NotificationLogger::Services::StoredNotification2::Id = 0 |
Id of the notification
◆ NotificationName
| RscString<512> Arp::Services::NotificationLogger::Services::StoredNotification2::NotificationName |
Name of the notification
◆ Payload
| std::vector<RscString<512> > Arp::Services::NotificationLogger::Services::StoredNotification2::Payload |
Formatted payload
◆ PayloadXml
| std::vector<RscString<512> > Arp::Services::NotificationLogger::Services::StoredNotification2::PayloadXml |
Payload as XML
◆ RedundancyRole
| RscString<32> Arp::Services::NotificationLogger::Services::StoredNotification2::RedundancyRole |
Redundancy role (Primary, Backup)
◆ RedundancyType
| RscString<32> Arp::Services::NotificationLogger::Services::StoredNotification2::RedundancyType |
Redundancy type (First, Second)
◆ SenderName
| RscString<512> Arp::Services::NotificationLogger::Services::StoredNotification2::SenderName |
Name of the sender
◆ Severity
| RscString<32> Arp::Services::NotificationLogger::Services::StoredNotification2::Severity |
Severity
◆ TimeStamp
| RscString<32> Arp::Services::NotificationLogger::Services::StoredNotification2::TimeStamp |
Timestamp when the notification was sent
The documentation for this class was generated from the following file:
- Arp/Services/NotificationLogger/Services/StoredNotification2.hpp
