Stores the to be written data and the related variable name to be write to. More...

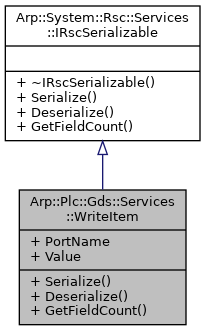

Inheritance diagram for Arp::Plc::Gds::Services::WriteItem:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
RscString< 512 >	PortName
	Name of the variable More...

RscVariant< 512 >	Value
	Contains the to be written data More...

Detailed Description

Stores the to be written data and the related variable name to be write to.

Member Function Documentation

void Arp::Plc::Gds::Services::WriteItem::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

void Arp::Plc::Gds::Services::WriteItem::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

RscString<512> Arp::Plc::Gds::Services::WriteItem::PortName

Name of the variable

RscVariant<512> Arp::Plc::Gds::Services::WriteItem::Value

Contains the to be written data

The documentation for this class was generated from the following file:
