Arp::Plc::Gds::Services::VariableInfo Class Reference

Describes a subscribed variable. More...

#include <VariableInfo.hpp>

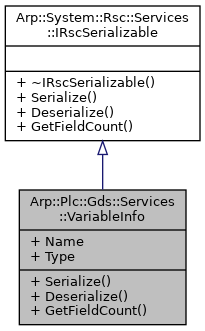

Inheritance diagram for Arp::Plc::Gds::Services::VariableInfo:

Public Types
using	DataType = Arp::Plc::Commons::DataType

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...
void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...
Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)
Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
RscString< 512 >	Name
	Full name of the variable. More...
DataType	Type = static_cast<DataType>(0)
	Arp.Plc.Gds.Services.VariableInfo.Type of the variable. More...

Detailed Description

Describes a subscribed variable.

The structure includes the full name of the variable e.g.: ComponentName-1/ProgramName-1.Variable_Name and the associated type (Arp.Plc.Commons.DataType) e.g.: Arp.Plc.Commons.DataType.Int8.

Member Function Documentation

Deserialize()

void Arp::Plc::Gds::Services::VariableInfo::Deserialize ( RscReader &  reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader

Reference to RscReader.

Implements Arp::System::Rsc::Services::IRscSerializable.

Serialize()

void Arp::Plc::Gds::Services::VariableInfo::Serialize ( RscWriter &  writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer

Reference to RscWriter

Implements Arp::System::Rsc::Services::IRscSerializable.

Member Data Documentation

Name

RscString<512> Arp::Plc::Gds::Services::VariableInfo::Name

Full name of the variable.

Type

DataType Arp::Plc::Gds::Services::VariableInfo::Type = static_cast<DataType>(0)

Arp.Plc.Gds.Services.VariableInfo.Type of the variable.

---

The documentation for this class was generated from the following file:

• Arp/Plc/Gds/Services/VariableInfo.hpp
