Stores the data to be read, written by the controller and a possible data access error. More...

#include <ReadItem.hpp>

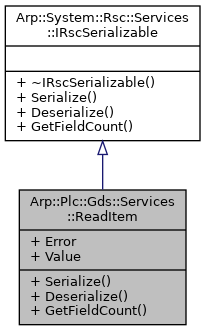

Inheritance diagram for Arp::Plc::Gds::Services::ReadItem:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
DataAccessError	Error = static_cast<DataAccessError>(0)
	Contains the possible data access errors. More...

RscVariant< 512 >	Value
	Contains the data to be read, written by the controller. More...

Detailed Description

Stores the data to be read, written by the controller and a possible data access error.

Member Function Documentation

void Arp::Plc::Gds::Services::ReadItem::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

void Arp::Plc::Gds::Services::ReadItem::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

DataAccessError Arp::Plc::Gds::Services::ReadItem::Error = static_cast<DataAccessError>(0)

Contains the possible data access errors.

RscVariant<512> Arp::Plc::Gds::Services::ReadItem::Value

Contains the data to be read, written by the controller.

The documentation for this class was generated from the following file:
